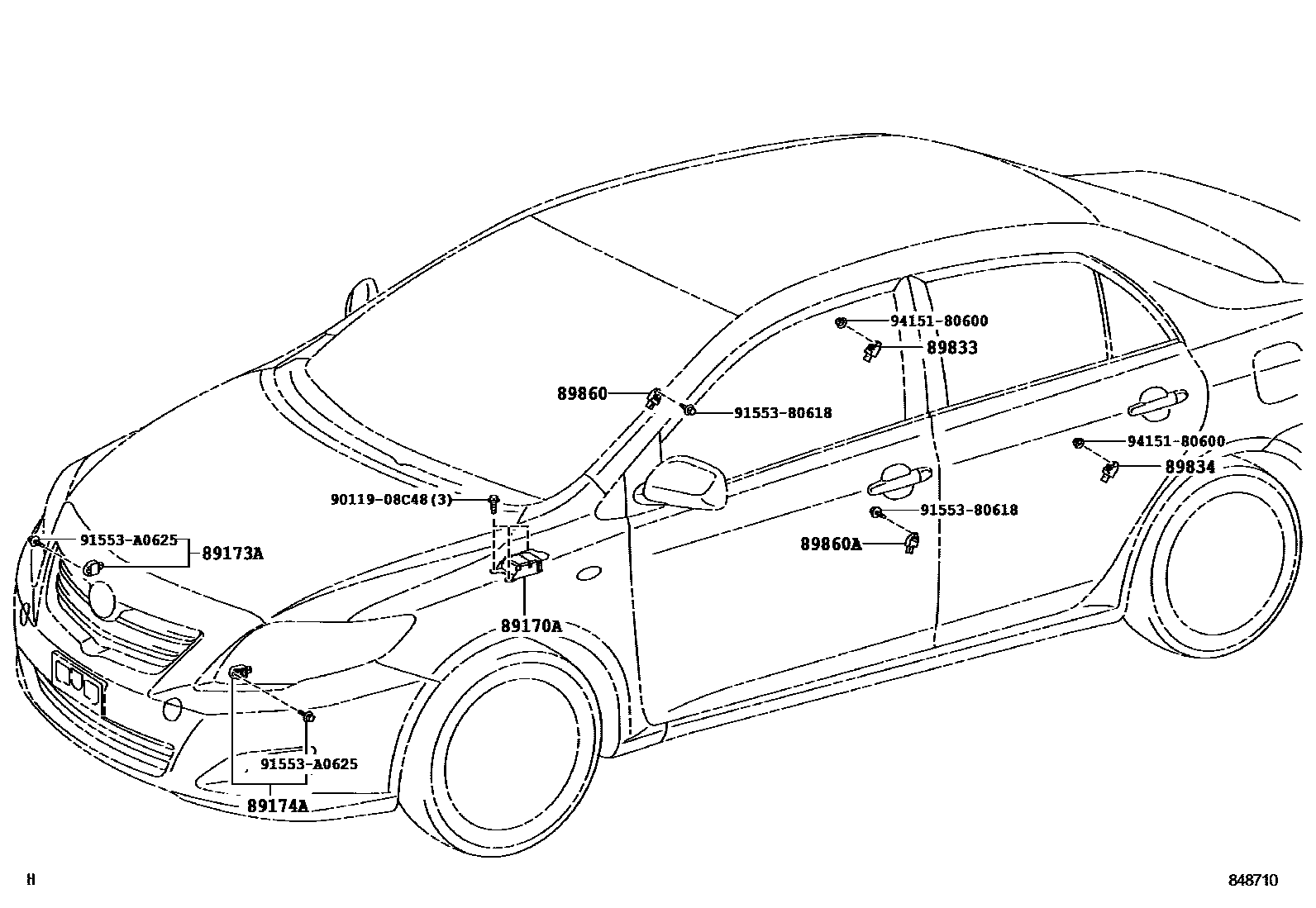

AIR BAG
89170ACOMPUTER ASSY, AIRBAG
P/N LABEL=891700W360; SRS AIR BAG-WITH(DRIVER&PASSENGER&SIDE&CURTAIN&KNEE),P/N LABEL=891700W360
P/N LABEL=8917012B40; SRS AIR BAG-WITH(DRIVER&PASSENGER&SIDE&CURTAIN&KNEE),P/N LABEL=8917012B40
SRS AIR BAG-WITH(DRIVER&PASSENGER&SIDE&KNEE)
89173ASENSOR, AIRBAG, FRONT RH
MARK 89173-02070
MARK 89173-42080
89174ASENSOR, AIRBAG, FRONT LH
MARK 89173-02070
MARK 89173-42080
89833SENSOR, AIRBAG, REAR RH
MARK 89831-0W060; SRS AIR BAG-WITH(DRIVER&PASSENGER&SIDE&CURTAIN&KNEE),MARK 89831-0W060
MARK 89831-12020; SRS AIR BAG-WITH(DRIVER&PASSENGER&SIDE&CURTAIN&KNEE),MARK 89831-12020
89834SENSOR, AIRBAG, REAR LH
MARK 89831-0W060; SRS AIR BAG-WITH(DRIVER&PASSENGER&SIDE&CURTAIN&KNEE),MARK 89831-0W060
MARK 89831-12020; SRS AIR BAG-WITH(DRIVER&PASSENGER&SIDE&CURTAIN&KNEE),MARK 89831-12020
89860SENSOR ASSY, SIDE AIRBAG, RH
SRS AIR BAG-WITH(DRIVER&PASSENGER&SIDE&CURTAIN&KNEE); SRS AIR BAG-WITH(DRIVER&PASSENGER&SIDE&KNEE)
MARK 89831-02100; SRS AIR BAG-WITH(DRIVER&PASSENGER&SIDE&CURTAIN&KNEE),MARK 89831-02100
MARK 89831-28020; SRS AIR BAG-WITH(DRIVER&PASSENGER&SIDE&CURTAIN&KNEE),MARK 89831-28020
89860ASENSOR ASSY, SIDE AIRBAG, LH
SRS AIR BAG-WITH(DRIVER&PASSENGER&SIDE&KNEE)
MARK 89831-02100; SRS AIR BAG-WITH(DRIVER&PASSENGER&SIDE&CURTAIN&KNEE),MARK 89831-02100
MARK 89831-28020; SRS AIR BAG-WITH(DRIVER&PASSENGER&SIDE&CURTAIN&KNEE),MARK 89831-28020
9011908C48
main90119-08C48
9155380618
main91553-80618
91553A0625
main91553-A0625
9415180600
main94151-80600
11 parts on this diagram · 1 diagram in section
