WIRING & CLAMP

0001 1ENGINE ROOM 0002 1ENGINE 0003 1INSTRUMENT PANEL 0004 1DOOR 0005 1FLOOR & ROOF 0006 1CLAMP & BRACKET 0007 1CABLE BOND 0008 1CONNECTOR 1/2 0009 1CONNECTOR 2/2

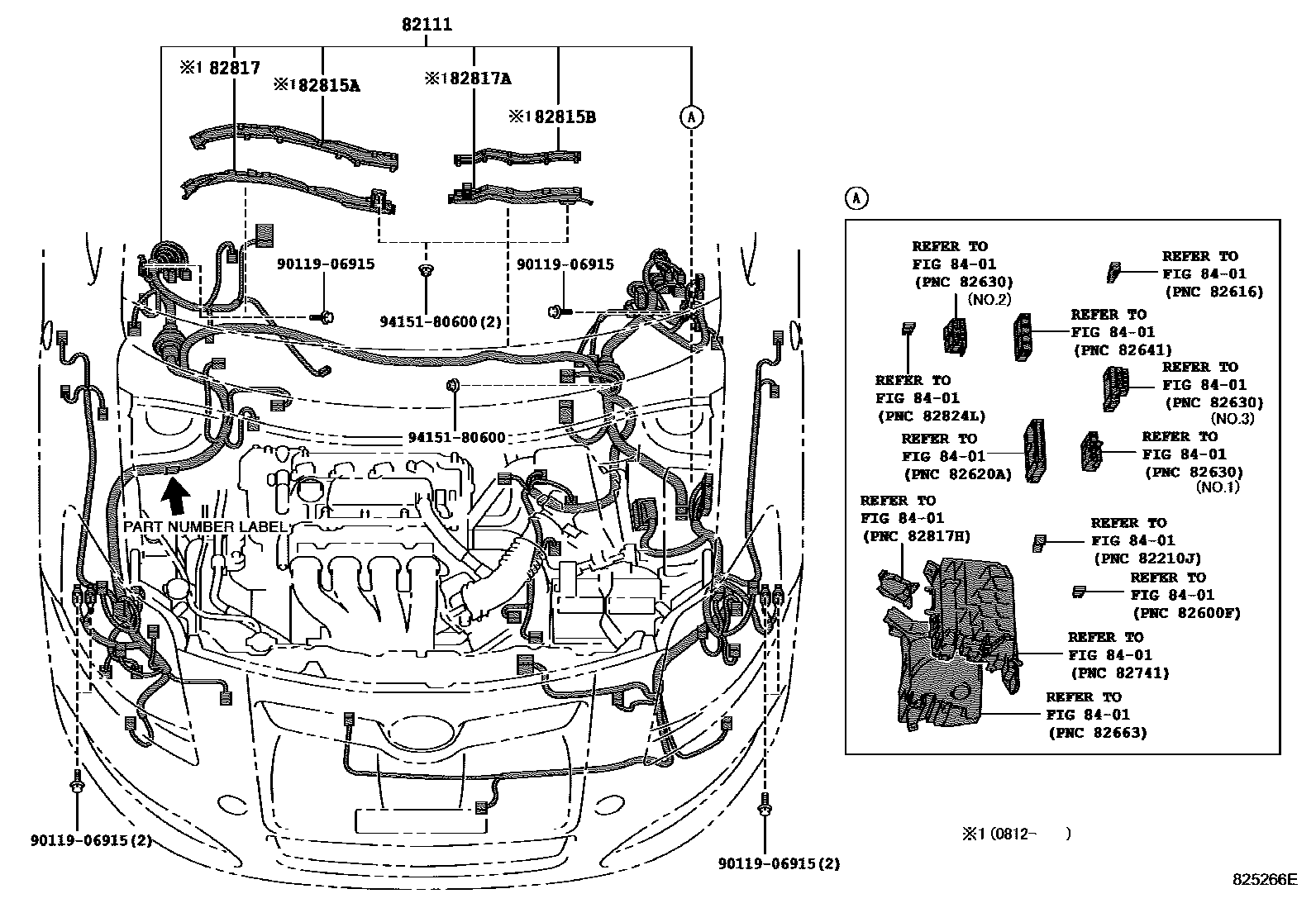

82111WIRE, ENGINE ROOM MAIN

main82111-1EX90iZRE153201004-201311

main82111-1AB50supersedes 82111-1EX51iZRE152..6F200703-200812

CRUISE CONTROL-WITH

main82111-1AB60supersedes 82111-1AR90iZRE152..6F..N200703-200812

CRUISE CONTROL-WITH&HEADLAMP-DISCHARGE

main82111-1AC00supersedes 82111-1EA10iZRE152..4FC..N200703-200812

HEADLAMP-DISCHARGE

main82111-1AR90iZRE152..6F..N200703-200812

HEADLAMP-DISCHARGE

main82111-1AZ70supersedes 82111-1EA10iZRE152..4FC..N200812-201004

HEADLAMP-DISCHARGE

main82111-1AZ80supersedes 82111-1EX51iZRE152..6F200812-201004

VSC-WITH(CANCEL SWITCH)

main82111-1EA00supersedes 82111-1EX81iZRE152..4FC200812-201004

VSC-WITH(CANCEL SWITCH)

main82111-1EA10iZRE152..4FC..N200812-201004

VSC-WITH(CANCEL SWITCH)&HEADLAMP-DISCHARGE

main82111-1EX50iZRE152..6F201004-201102

VSC-WITH

main82111-1EX51iZRE152..6F201102-201106

VSC-WITH

main82111-1EX80iZRE152..4FC201004-201102

VSC-WITH

main82111-1EX81iZRE152..4FC201102-201106

VSC-WITH

82815ACOVER, WIRING HARNESS PROTECTOR

main82815-12150iZRE152200812-201004

82815BCOVER, WIRING HARNESS PROTECTOR

main82815-12160iZRE15#201004

82817PROTECTOR, WIRING HARNESS, NO.1

main82817-12B10iZRE152200812-201004

82817APROTECTOR, WIRING HARNESS, NO.2

main82817-12B20iZRE152200812-201004

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9011906915

main90119-06915

9415180600

main94151-80600

8 parts on this diagram · 9 diagrams in section
