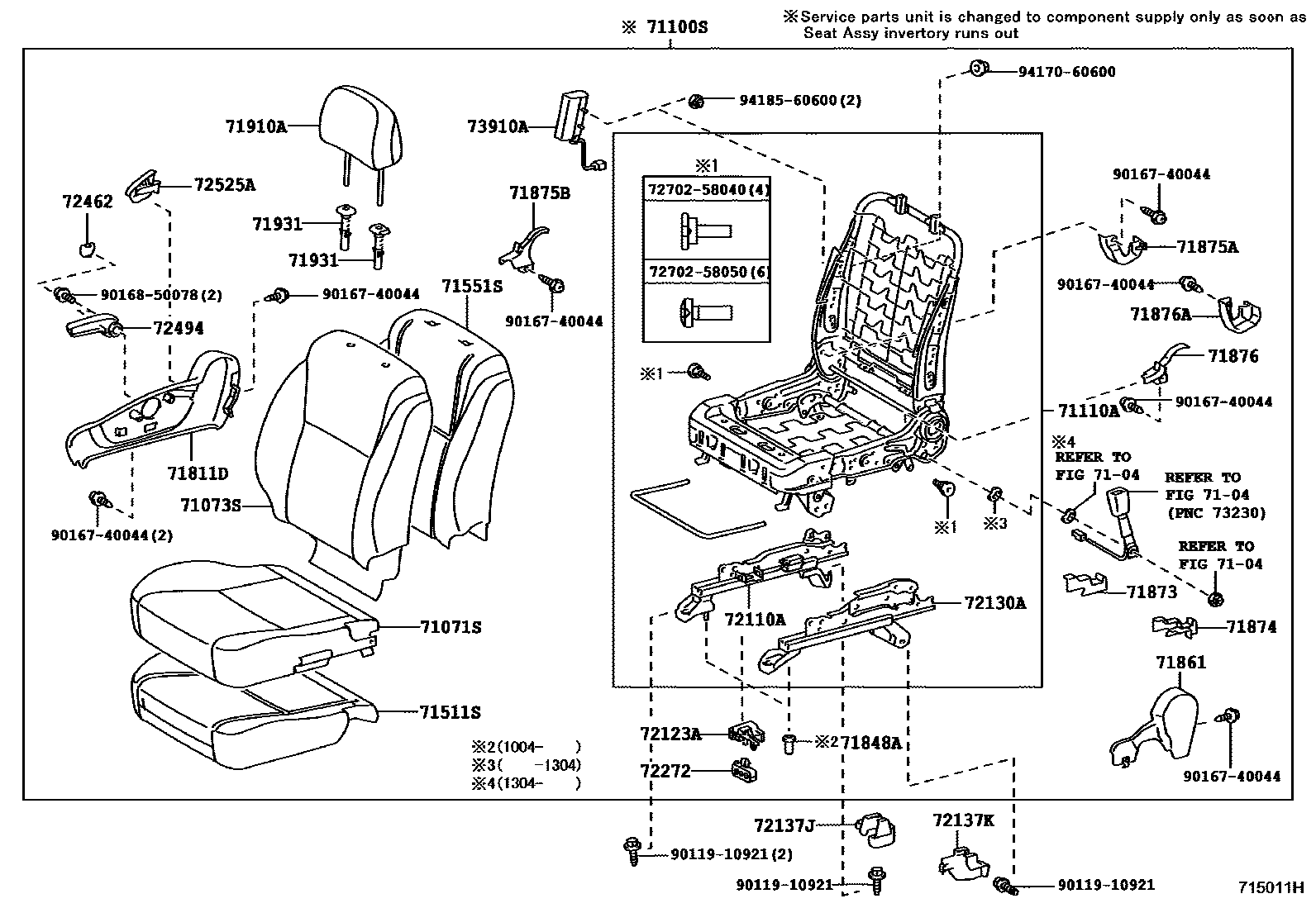

FRONT SEAT & SEAT TRACK

7104SEAT BELT & CHILD RESTRAINT SEAT

→ Go to FIG 71-04

71071SCOVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

main71071-12T30-E2supersedes 71071-12S80-E2i201004-201103

GREGE,TRIM4#; SRS AIR BAG-WITH(DRIVER&PASSENGER&SIDE&CURTAIN&KNEE),GREGE,TRIM4#

main71071-12J20-B1supersedes 71071-12Q40-B1i200703-200812

SRS AIR BAG-WITH(DRIVER&PASSENGER&SIDE&CURTAIN&KNEE),DARK GRAY,TRIM1#; SRS AIR BAG-WITH(DRIVER&PASSENGER&SIDE&KNEE),DARK GRAY,TRIM1#

main71071-12K40-B3supersedes 71071-12S80-B2i200812-201004

SEAT COVER MATERIAL-NATURAL LEATHER,DK.GRAY,TRIM1#

main71071-12Q50-B0supersedes 71071-12Q40-B1i201004-201103

SRS AIR BAG-WITH(DRIVER&PASSENGER&SIDE&CURTAIN&KNEE),DK.GRAY,TRIM1#

main71071-12Q50-B1supersedes 71071-12Q40-B1i201103-201311

SRS AIR BAG-WITH(DRIVER&PASSENGER&SIDE&CURTAIN&KNEE),DARK GRAY,TRIM1#

main71071-12S90-B1supersedes 71071-12S80-B2i201004-201103

SEAT COVER MATERIAL-NATURAL LEATHER,DK.GRAY,TRIM1#

main71071-12S90-B2supersedes 71071-12S80-B2i201103-201311

SEAT COVER MATERIAL-NATURAL LEATHER,DK.GRAY,TRIM1#

main71071-12T30-B1supersedes 71071-12S80-B2i201004-201103

DK.GRAY,TRIM1#; SRS AIR BAG-WITH(DRIVER&PASSENGER&SIDE&CURTAIN&KNEE),DK.GRAY,TRIM1#

main71071-12T30-B2supersedes 71071-12S80-B2i201103-201311

DARK GRAY,TRIM1#; SRS AIR BAG-WITH(DRIVER&PASSENGER&SIDE&CURTAIN&KNEE),DARK GRAY,TRIM1#

main71071-12X00-B0supersedes 71071-12T30-B2i201004-201103

SEAT COVER MATERIAL-NATURAL LEATHER&SRS AIR BAG-WITH(DRIVER&PASSENGER&SIDE&CURTAIN&KNEE),DK.GRAY,TRIM1#; SEAT COVER MATERIAL-NATURAL LEATHER,DK.GRAY,TRIM1#

main71071-12X00-B1supersedes 71071-12T30-B2i201103-201311

SEAT COVER MATERIAL-NATURAL LEATHER&SRS AIR BAG-WITH(DRIVER&PASSENGER&SIDE&CURTAIN&KNEE),DK.GRAY,TRIM1#; SEAT COVER MATERIAL-NATURAL LEATHER,DK.GRAY,TRIM1#

71073SCOVER, FRONT SEATBACK, RH(FOR SEPARATE TYPE)

main71073-12U10-E2supersedes 71073-12T80-E2i201004-201103

GREGE,TRIM4#; SRS AIR BAG-WITH(DRIVER&PASSENGER&SIDE&CURTAIN&KNEE),GREGE,TRIM4#

main71073-12G30-B2supersedes 71073-12Q60-B1i200703-200812

SRS AIR BAG-WITH(DRIVER&PASSENGER&SIDE&CURTAIN&KNEE),DK.GRAY,TRIM1#; SRS AIR BAG-WITH(DRIVER&PASSENGER&SIDE&KNEE),DK.GRAY,TRIM1#

main71073-12J30-B5supersedes 71073-12T80-B2i200812-201004

SEAT COVER MATERIAL-NATURAL LEATHER,DK.GRAY,TRIM1#

main71073-12Q70-B0supersedes 71073-12Q60-B1i201004-201103

SRS AIR BAG-WITH(DRIVER&PASSENGER&SIDE&CURTAIN&KNEE),DK.GRAY,TRIM1#

main71073-12Q70-B1supersedes 71073-12Q60-B1i201103-201202

SRS AIR BAG-WITH(DRIVER&PASSENGER&SIDE&CURTAIN&KNEE),DARK GRAY,TRIM1#

main71073-12Q70-B2supersedes 71073-12Q60-B1i201202-201311

SRS AIR BAG-WITH(DRIVER&PASSENGER&SIDE&CURTAIN&KNEE),DARK GRAY,TRIM1#

main71073-12R00-B0supersedes 71073-12U10-B3i201004-201103

SEAT COVER MATERIAL-NATURAL LEATHER&SRS AIR BAG-WITH(DRIVER&PASSENGER&SIDE&CURTAIN&KNEE),DK.GRAY,TRIM1#; SEAT COVER MATERIAL-NATURAL LEATHER,DK.GRAY,TRIM1#

main71073-12R00-B1supersedes 71073-12T80-B2i201103-201202

SEAT COVER MATERIAL-NATURAL LEATHER&SRS AIR BAG-WITH(DRIVER&PASSENGER&SIDE&CURTAIN&KNEE),DK.GRAY,TRIM1#; SEAT COVER MATERIAL-NATURAL LEATHER,DK.GRAY,TRIM1#

main71073-12R00-B2supersedes 71073-12U10-B3i201202-201311

SEAT COVER MATERIAL-NATURAL LEATHER&SRS AIR BAG-WITH(DRIVER&PASSENGER&SIDE&CURTAIN&KNEE),DK.GRAY,TRIM1#; SEAT COVER MATERIAL-NATURAL LEATHER,DK.GRAY,TRIM1#

main71073-12T90-B1supersedes 71073-12T80-B2i201004-201103

SEAT COVER MATERIAL-NATURAL LEATHER,DK.GRAY,TRIM1#

main71073-12T90-B2supersedes 71073-12T80-B2i201103-201311

SEAT COVER MATERIAL-NATURAL LEATHER,DK.GRAY,TRIM1#

main71073-12U10-B1supersedes 71073-12T80-B2i201004-201103

DK.GRAY,TRIM1#; SRS AIR BAG-WITH(DRIVER&PASSENGER&SIDE&CURTAIN&KNEE),DK.GRAY,TRIM1#

main71073-12U10-B2supersedes 71073-12T80-B2i201103-201202

DARK GRAY,TRIM1#; SRS AIR BAG-WITH(DRIVER&PASSENGER&SIDE&CURTAIN&KNEE),DARK GRAY,TRIM1#

main71073-12U10-B3supersedes 71073-12T80-B2i201202-201311

DARK GRAY,TRIM1#; SRS AIR BAG-WITH(DRIVER&PASSENGER&SIDE&CURTAIN&KNEE),DARK GRAY,TRIM1#

71100SSEAT ASSY, FRONT RH

main71100-1AA10-E2supersedes 71100-12M70-E5i201004-201103

GREGE,TRIM4#; SRS AIR BAG-WITH(DRIVER&PASSENGER&SIDE&CURTAIN&KNEE),GREGE,TRIM4#

main71100-12M50-B4i200703-200812

SRS AIR BAG-WITH(DRIVER&PASSENGER&SIDE&CURTAIN&KNEE),DK.GRAY,TRIM1#; SRS AIR BAG-WITH(DRIVER&PASSENGER&SIDE&KNEE),DK.GRAY,TRIM1#

main71100-12M90-B7supersedes 71100-12M70-B4i200703-200812

SEAT COVER MATERIAL-NATURAL LEATHER,DK.GRAY,TRIM1#

main71100-1AA10-B2supersedes 71100-12M70-B4i201004-201204

DK.GRAY,TRIM1#; SRS AIR BAG-WITH(DRIVER&PASSENGER&SIDE&CURTAIN&KNEE),DK.GRAY,TRIM1#

main71100-1AA11-B0supersedes 71100-12M70-B4i201205-201311

DK.GRAY,TRIM1#; SRS AIR BAG-WITH(DRIVER&PASSENGER&SIDE&CURTAIN&KNEE),DK.GRAY,TRIM1#

main71100-1AG00-B0i201004-201204

SRS AIR BAG-WITH(DRIVER&PASSENGER&SIDE&CURTAIN&KNEE),DK.GRAY,TRIM1#

main71100-1AG01-B0i201205-201311

SRS AIR BAG-WITH(DRIVER&PASSENGER&SIDE&CURTAIN&KNEE),DK.GRAY,TRIM1#

main71100-1AG40-B0supersedes 71100-1AA11-B0i201004-201204

SEAT COVER MATERIAL-NATURAL LEATHER&SRS AIR BAG-WITH(DRIVER&PASSENGER&SIDE&CURTAIN&KNEE),DK.GRAY,TRIM1#; SEAT COVER MATERIAL-NATURAL LEATHER,DK.GRAY,TRIM1#

main71100-1AG41-B0supersedes 71100-1AA11-B0i201205-201311

SEAT COVER MATERIAL-NATURAL LEATHER&SRS AIR BAG-WITH(DRIVER&PASSENGER&SIDE&CURTAIN&KNEE),DK.GRAY,TRIM1#; SEAT COVER MATERIAL-NATURAL LEATHER,DK.GRAY,TRIM1#

71110AFRAME ASSY, FRONT SEAT W/ADJUSTER, RH

main71110-12140supersedes 71110-12131i201004-201304

SEAT COVER MATERIAL-NATURAL LEATHER&SRS AIR BAG-WITH(DRIVER&PASSENGER&SIDE&CURTAIN&KNEE); SRS AIR BAG-WITH(DRIVER&PASSENGER&SIDE&CURTAIN&KNEE)

main71110-12141i201304-201311

SEAT COVER MATERIAL-NATURAL LEATHER&SRS AIR BAG-WITH(DRIVER&PASSENGER&SIDE&CURTAIN&KNEE); SRS AIR BAG-WITH(DRIVER&PASSENGER&SIDE&CURTAIN&KNEE)

71511SPAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

main71511-12B10i201004

71551SPAD, FRONT SEATBACK, RH(FOR SEPARATE TYPE)

main71551-12A70supersedes 71551-12A60i201004

SEAT COVER MATERIAL-NATURAL LEATHER&SRS AIR BAG-WITH(DRIVER&PASSENGER&SIDE&CURTAIN&KNEE); SRS AIR BAG-WITH(DRIVER&PASSENGER&SIDE&CURTAIN&KNEE)

71811DSHIELD, FRONT SEAT CUSHION, RH

main71811-12450-B0i200812-201004

DK.GRAY,TRIM1#

main71811-12450-E0i200703-200812

GREGE,TRIM4#

71848ACAP, SEAT ADJUSTER COVER, RH

main71848-26010×2i201004

71861SHIELD, FRONT SEAT CUSHION, INNER RH

main71861-12300-B0i200812-201004

DK.GRAY,TRIM1#

main71861-12300-E0i200812-201004

GREGE,TRIM4#

71873SHIELD, FRONT SEAT CUSHION, LOWER RH

main71873-12060×2i200710-200812

main71873-53030×2i200703-200709

71874SHIELD, FRONT SEAT CUSHION, LOWER LH

main71874-12060×2i201004

main71874-53010×2i200703-200709

71875ACOVER, RECLINING ADJUSTER INSIDE, RH

main71875-58060×2i200703-200812

71875BCOVER, RECLINING ADJUSTER INSIDE, RH

main71875-12020-B0×2i200703-200812

DK.GRAY,TRIM1#

main71875-12020-E0×2i200703-200812

GREGE,TRIM4#

71876COVER, RECLINING ADJUSTER INSIDE, LH

main71876-12020-B0×2i200812-201004

DK.GRAY,TRIM1#

main71876-12020-E0×2i200703-200812

GREGE,TRIM4#

71876ACOVER, RECLINING ADJUSTER INSIDE, LH

main71876-58060×2i200812-201004

71910AHEADREST ASSY, FRONT SEAT

main71910-12B30-B3×2i200812-201004

DARK GRAY,TRIM1#

main71910-12B30-E2×2i200703-200812

GREGE,TRIM4#

main71910-12F40-B1×2i201004-201311

DARK GRAY,TRIM1#

main71910-12F40-E1×2i201004-201103

GREGE,TRIM4#

main71910-12C40-B4×2i200812-201004

SEAT COVER MATERIAL-NATURAL LEATHER,DK.GRAY,TRIM1#

main71910-12C40-B6×2i201004-201311

SEAT COVER MATERIAL-NATURAL LEATHER&SRS AIR BAG-WITH(DRIVER&PASSENGER&SIDE&CURTAIN&KNEE),DK.GRAY,TRIM1#; SEAT COVER MATERIAL-NATURAL LEATHER,DK.GRAY,TRIM1#

71931SUPPORT, FRONT SEAT HEADREST

main71930-44020-B0×2i200812-201004

W(LOCK),DK.GRAY,TRIM1#

main71930-44020-E0×2i200706-200812

W(LOCK),GREGE,TRIM4#

main71930-47010-B2×2i200703-200705

W(LOCK),DK.GRAY,TRIM1#

main71930-47010-E3×2i200703-200705

W(LOCK),GREGE,TRIM4#

main71931-47010-B2×2i200703-200812

W/O(LOCK),DK.GRAY,TRIM1#

main71931-47010-E4×2i200703-200812

W/O(LOCK),GREGE,TRIM4#

72110ATRACK ASSY, FRONT SEAT, OUTER RH

main72110-12210i200703-200812

72123ACOVER, SEAT TRACK BRACKET, OUTER FRONT RH

main72123-12140i200703-200812

72130ATRACK ASSY, FRONT SEAT, INNER RH

main72130-12800i200812-201004

72137JCOVER, FRONT SEAT TRACK, RH REAR OUTER

main72137-12160-B0i200703-200812

DK.GRAY

72137KCOVER, FRONT SEAT TRACK, RH REAR INNER

main72157-12130-B0i200703-200812

DK.GRAY

72272CLAMP, SEAT TRACK CONTROL CABLE

main72272-12020×2i200703-200812

72462COVER, VERTICAL ADJUSTER RH

main72462-42010-B0i200703-200812

DK.GRAY,TRIM1#

main72462-42010-E1i200703-200812

GREGE,TRIM4#

72494HANDLE, VERTICAL ADJUSTING, RH

main72494-12040-B0i200812-201004

DK.GRAY,TRIM1#

main72494-12040-E0i201004-201103

GREGE,TRIM4#

72525AHANDLE, RECLINING ADJUSTER RELEASE, RH

main72525-42020-B0i200703-200812

DK.GRAY,TRIM1#

main72525-42020-E1i200812-201004

GREGE,TRIM4#

73910AAIRBAG ASSY, FRONT SEAT, RH

main73910-12040i201004-201302

SEAT COVER MATERIAL-NATURAL LEATHER&SRS AIR BAG-WITH(DRIVER&PASSENGER&SIDE&CURTAIN&KNEE); SRS AIR BAG-WITH(DRIVER&PASSENGER&SIDE&CURTAIN&KNEE)

main73910-12041i201303

SEAT COVER MATERIAL-NATURAL LEATHER&SRS AIR BAG-WITH(DRIVER&PASSENGER&SIDE&CURTAIN&KNEE); SRS AIR BAG-WITH(DRIVER&PASSENGER&SIDE&CURTAIN&KNEE)

7270258040BRACKET SUB-ASSY, REAR SEATBACK STRIKER

main72702-58040

7270258050BRACKET SUB-ASSY, REAR SEATBACK STRIKER

main72702-58050

9011910921

main90119-10921

9016740044

main90167-40044

9016850078

main90168-50078

9417060600

main94170-60600

9418560600

main94185-60600

35 parts on this diagram · 4 diagrams in section
