E
EPC Data

FRONT DOOR LOCK & HANDLE

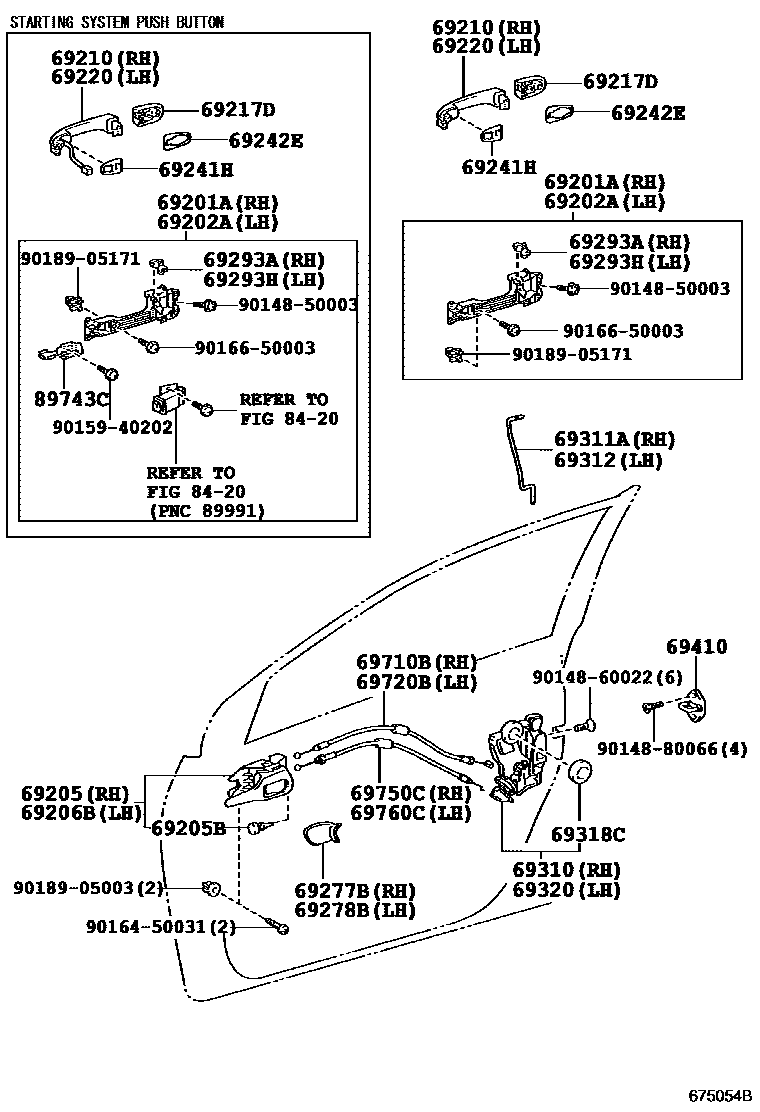

Parts diagram
69201AFRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, RH
main69201-52040i200703-201004
main69201-52060i201004
69202AFRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, LH
main69202-52020i200703-201004
main69202-52040i201004
69205HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH
main69205-12220-B4i200703-201004
SILVER,TRIM1#,4#
main69205-12220-B4i200703-201004
SILVER,TRIM1#
main69205-12220-B6i201004-201311
ORNAMENT SILVER,TRIM1#
main69205-12220-B6i201004-201311
ORNAMENT SILVER,TRIM1#,4#
69205BCUSHION(FOR FRONT DOOR INSIDE HANDLE)
main90541-04027i200703-201004
69206BHANDLE SUB-ASSY, FRONT DOOR INSIDE, LH
main69206-12220-B4i200703-201004
SILVER,TRIM1#,4#
main69206-12220-B4i200703-201004
SILVER,TRIM1#
main69206-12220-B6i201004-201311
ORNAMENT SILVER,TRIM1#,4#
main69206-12220-B6i201004-201311
ORNAMENT SILVER,TRIM1#
69210HANDLE ASSY, FRONT DOOR, OUTSIDE RH
main69210-12320-A0i201004-201311
SUPER WHITE 2,040
sub69210-12320
main69210-12320-B6i201004-201311
GRAY ME.,1G3
sub69210-12320
main69210-12320-B7i201004-201311
SILVER ME.,1F7
sub69210-12320
main69210-12320-C0i201004-201311
BLACK MC.,209
sub69210-12320
main69210-12320-D6i201004-201311
RED M.M.,3R3
sub69210-12320
main69210-12320-J7i201004-201311
LT.BLUE M.M.,8S1
sub69210-12320
main69210-12320-J8i201004-201304
DK.BLUE MC.,8S6
sub69210-12320
main69210-12320-R6i201004-201311
BLUE ME.,8T7
sub69210-12320
main69210-12320-R9i201004-201311
BLUE ME.,8U6
sub69210-12320
main69211-12220-A0i200703-201311
DOOR OUTSIDE HANDLE-BODY COLOR,W/O(PASSENGER KEY CYLINDER),SUPER WHITE 2,040
sub69211-12903
sub69211-12220
sub69211-52090
main69211-12220-A0i200703-201311
SUPER WHITE 2,040
sub69211-12903
sub69211-12220
sub69211-52090
main69211-12220-C2i200703-201311
DOOR OUTSIDE HANDLE-BODY COLOR,W/O(PASSENGER KEY CYLINDER),BLACK MC.,209
sub69211-12903
sub69211-12220
sub69211-52090
main69211-12220-C2i200703-201311
BLACK MC.,209
sub69211-12903
sub69211-12220
sub69211-52090
main69211-12220-P5i200703-201311
DOOR OUTSIDE HANDLE-BODY COLOR,W/O(PASSENGER KEY CYLINDER),GRAY ME.,1G3
sub69211-12903
sub69211-12220
sub69211-52090
main69211-12220-P5i200703-201311
GRAY ME.,1G3
sub69211-12903
sub69211-12220
sub69211-52090
main69211-12220-P6i200703-201311
DOOR OUTSIDE HANDLE-BODY COLOR,W/O(PASSENGER KEY CYLINDER),SILVER ME.,1F7
sub69211-12903
sub69211-12220
sub69211-52090
main69211-12220-P6i200703-201311
SILVER ME.,1F7
sub69211-12903
sub69211-12220
sub69211-52090
main69211-12220-R2i200703-201311
LT.BLUE M.M.,8S1
sub69211-12903
sub69211-12220
sub69211-52090
main69211-12220-R2i200703-201311
DOOR OUTSIDE HANDLE-BODY COLOR,W/O(PASSENGER KEY CYLINDER),LT.BLUE M.M.,8S1
sub69211-12903
sub69211-12220
sub69211-52090
main69211-12220-R8i200703-201304
DK.BLUE MC.,8S6
sub69211-12903
sub69211-12220
sub69211-52090
main69211-12220-R8i200703-201304
DOOR OUTSIDE HANDLE-BODY COLOR,W/O(PASSENGER KEY CYLINDER),DK.BLUE MC.,8S6
sub69211-12903
sub69211-12220
sub69211-52090
main69211-12220-V0i200703-201004
DK.BLUE ME.,8T8
sub69211-12903
sub69211-12220
sub69211-52090
main69211-12220-V0i200703-201004
DOOR OUTSIDE HANDLE-BODY COLOR,W/O(PASSENGER KEY CYLINDER),DK.BLUE ME.,8T8
sub69211-12903
sub69211-12220
sub69211-52090
main69211-12220-V2i201004-201311
DOOR OUTSIDE HANDLE-BODY COLOR,W/O(PASSENGER KEY CYLINDER),BLUE ME.,8T7
sub69211-12903
sub69211-12220
sub69211-52090
main69211-12220-V2i201004-201311
BLUE ME.,8T7
sub69211-12903
sub69211-12220
sub69211-52090
main69211-12220-V4i201004-201311
BLUE ME.,8U6
sub69211-12903
sub69211-12220
sub69211-52090
main69211-12220-V4i201004-201311
DOOR OUTSIDE HANDLE-BODY COLOR,W/O(PASSENGER KEY CYLINDER),BLUE ME.,8U6
sub69211-12903
sub69211-12220
sub69211-52090
main69211-12220-X4i200703-201311
RED M.M.,3R3
sub69211-12903
sub69211-12220
sub69211-52090
main69211-12220-X4i200703-201311
DOOR OUTSIDE HANDLE-BODY COLOR,W/O(PASSENGER KEY CYLINDER),RED M.M.,3R3
sub69211-12903
sub69211-12220
sub69211-52090
main69211-42010i200703-201311
NO PAINT REQ.
69217DCOVER, FRONT DOOR OUTSIDE HANDLE
main69217-12030i200703-201311
BLACK MATERIAL,PASSENGER SIDE
main69217-12040-A0i200703-201311
DOOR OUTSIDE HANDLE-BODY COLOR,W/O(PASSENGER KEY CYLINDER),SUPER WHITE 2,040,PASSENGER SIDE
sub69217-12040
main69217-12040-A0i200703-201311
SUPER WHITE 2,040,PASSENGER SIDE
sub69217-12040
main69217-12040-C2i200703-201311
BLACK MC.,209,PASSENGER SIDE
sub69217-12040
main69217-12040-C2i200703-201311
DOOR OUTSIDE HANDLE-BODY COLOR,W/O(PASSENGER KEY CYLINDER),BLACK MC.,209,PASSENGERSIDE
sub69217-12040
main69217-12040-D9i200703-201311
RED M.M.,3R3,PASSENGER SIDE
sub69217-12040
main69217-12040-D9i200703-201311
DOOR OUTSIDE HANDLE-BODY COLOR,W/O(PASSENGER KEY CYLINDER),RED M.M.,3R3,PASSENGERSIDE
sub69217-12040
main69217-12040-J9i200703-201311
DOOR OUTSIDE HANDLE-BODY COLOR,W/O(PASSENGER KEY CYLINDER),LT.BLUE M.M.,8S1,PASSENGER SIDE
sub69217-12040
main69217-12040-J9i200703-201311
LT.BLUE M.M.,8S1,PASSENGER SIDE
sub69217-12040
main69217-12040-P0i200703-201311
GRAY ME.,1G3,PASSENGER SIDE
sub69217-12040
main69217-12040-P0i200703-201311
DOOR OUTSIDE HANDLE-BODY COLOR,W/O(PASSENGER KEY CYLINDER),GRAY ME.,1G3,PASSENGERSIDE
sub69217-12040
main69217-12040-P1i200703-201311
DOOR OUTSIDE HANDLE-BODY COLOR,W/O(PASSENGER KEY CYLINDER),SILVER ME.,1F7,PASSENGER SIDE
sub69217-12040
main69217-12040-P1i200703-201311
SILVER ME.,1F7,PASSENGER SIDE
sub69217-12040
main69217-12040-R5i200703-201304
DK.BLUE MC.,8S6,PASSENGER SIDE
sub69217-12040
main69217-12040-R5i200703-201304
DOOR OUTSIDE HANDLE-BODY COLOR,W/O(PASSENGER KEY CYLINDER),DK.BLUE MC.,8S6,PASSENGER SIDE
sub69217-12040
main69217-12040-R8i200703-201004
DK.BLUE ME.,8T8,PASSENGER SIDE
sub69217-12040
main69217-12040-R8i200703-201004
DOOR OUTSIDE HANDLE-BODY COLOR,W/O(PASSENGER KEY CYLINDER),DK.BLUE ME.,8T8,PASSENGER SIDE
sub69217-12040
main69217-12040-V1i201004-201311
DOOR OUTSIDE HANDLE-BODY COLOR,W/O(PASSENGER KEY CYLINDER),BLUE ME.,8T7,PASSENGERSIDE
sub69217-12040
main69217-12040-V1i201004-201311
BLUE ME.,8T7,PASSENGER SIDE
sub69217-12040
main69217-12040-V5i201004-201311
BLUE ME.,8U6,PASSENGER SIDE
sub69217-12040
main69217-12040-V5i201004-201311
DOOR OUTSIDE HANDLE-BODY COLOR,W/O(PASSENGER KEY CYLINDER),BLUE ME.,8U6,PASSENGERSIDE
sub69217-12040
main69217-42010i200703-201311
BLACK MATERIAL,DRIVER SIDE
main69217-42020-A3i200703-201311
DOOR OUTSIDE HANDLE-BODY COLOR,W/O(PASSENGER KEY CYLINDER),SUPER WHITE 2,040,DRIVER SIDE
sub69217-42020
sub69217-42010
main69217-42020-A3i200703-201311
SUPER WHITE 2,040,DRIVER SIDE
sub69217-42020
sub69217-42010
main69217-42020-C2i200703-201311
DOOR OUTSIDE HANDLE-BODY COLOR,W/O(PASSENGER KEY CYLINDER),BLACK MC.,209,DRIVER SIDE
sub69217-42020
sub69217-42010
main69217-42020-C2i200703-201311
BLACK MC.,209,DRIVER SIDE
sub69217-42020
sub69217-42010
main69217-42020-P5i200703-201311
GRAY ME.,1G3,DRIVER SIDE
sub69217-42020
sub69217-42010
main69217-42020-P5i200703-201311
DOOR OUTSIDE HANDLE-BODY COLOR,W/O(PASSENGER KEY CYLINDER),GRAY ME.,1G3,DRIVER SIDE
sub69217-42020
sub69217-42010
main69217-42020-P6i200703-201311
SILVER ME.,1F7,DRIVER SIDE
sub69217-42020
sub69217-42010
main69217-42020-P6i200703-201311
DOOR OUTSIDE HANDLE-BODY COLOR,W/O(PASSENGER KEY CYLINDER),SILVER ME.,1F7,DRIVER SIDE
sub69217-42020
sub69217-42010
main69217-42020-R4i200703-201311
DOOR OUTSIDE HANDLE-BODY COLOR,W/O(PASSENGER KEY CYLINDER),LT.BLUE M.M.,8S1,DRIVERSIDE
sub69217-42020
sub69217-42010
main69217-42020-R4i200703-201311
LT.BLUE M.M.,8S1,DRIVER SIDE
sub69217-42020
sub69217-42010
main69217-42020-R9i200703-201304
DOOR OUTSIDE HANDLE-BODY COLOR,W/O(PASSENGER KEY CYLINDER),DK.BLUE MC.,8S6,DRIVERSIDE
sub69217-42020
sub69217-42010
main69217-42020-R9i200703-201304
DK.BLUE MC.,8S6,DRIVER SIDE
sub69217-42020
sub69217-42010
main69217-42020-V1i200703-201004
DK.BLUE ME.,8T8,DRIVER SIDE
sub69217-42020
sub69217-42010
main69217-42020-V1i200703-201004
DOOR OUTSIDE HANDLE-BODY COLOR,W/O(PASSENGER KEY CYLINDER),DK.BLUE ME.,8T8,DRIVERSIDE
sub69217-42020
sub69217-42010
main69217-42020-V4i201004-201311
BLUE ME.,8T7,DRIVER SIDE
sub69217-42020
sub69217-42010
main69217-42020-V4i201004-201311
DOOR OUTSIDE HANDLE-BODY COLOR,W/O(PASSENGER KEY CYLINDER),BLUE ME.,8T7,DRIVER SIDE
sub69217-42020
sub69217-42010
main69217-42020-V7i201004-201311
DOOR OUTSIDE HANDLE-BODY COLOR,W/O(PASSENGER KEY CYLINDER),BLUE ME.,8U6,DRIVER SIDE
sub69217-42020
sub69217-42010
main69217-42020-V7i201004-201311
BLUE ME.,8U6,DRIVER SIDE
sub69217-42020
sub69217-42010
main69217-42020-X4i200703-201311
RED M.M.,3R3,DRIVER SIDE
sub69217-42020
sub69217-42010
main69217-42020-X4i200703-201311
DOOR OUTSIDE HANDLE-BODY COLOR,W/O(PASSENGER KEY CYLINDER),RED M.M.,3R3,DRIVER SIDE
sub69217-42020
sub69217-42010
69220HANDLE ASSY, FRONT DOOR OUTSIDE, LH
main69210-12320-A0i201004-201311
SUPER WHITE 2,040
sub69210-12320
main69210-12320-B6i201004-201311
GRAY ME.,1G3
sub69210-12320
main69210-12320-B7i201004-201311
SILVER ME.,1F7
sub69210-12320
main69210-12320-C0i201004-201311
BLACK MC.,209
sub69210-12320
main69210-12320-D6i201004-201311
RED M.M.,3R3
sub69210-12320
main69210-12320-J7i201004-201311
LT.BLUE M.M.,8S1
sub69210-12320
main69210-12320-J8i201004-201304
DK.BLUE MC.,8S6
sub69210-12320
main69210-12320-R6i201004-201311
BLUE ME.,8T7
sub69210-12320
main69210-12320-R9i201004-201311
BLUE ME.,8U6
sub69210-12320
main69211-12220-A0i200703-201311
SUPER WHITE 2,040
sub69211-12903
sub69211-12220
sub69211-52090
main69211-12220-A0i200703-201311
DOOR OUTSIDE HANDLE-BODY COLOR,W/O(PASSENGER KEY CYLINDER),SUPER WHITE 2,040
sub69211-12903
sub69211-12220
sub69211-52090
main69211-12220-C2i200703-201311
DOOR OUTSIDE HANDLE-BODY COLOR,W/O(PASSENGER KEY CYLINDER),BLACK MC.,209
sub69211-12903
sub69211-12220
sub69211-52090
main69211-12220-C2i200703-201311
BLACK MC.,209
sub69211-12903
sub69211-12220
sub69211-52090
main69211-12220-P5i200703-201311
DOOR OUTSIDE HANDLE-BODY COLOR,W/O(PASSENGER KEY CYLINDER),GRAY ME.,1G3
sub69211-12903
sub69211-12220
sub69211-52090
main69211-12220-P5i200703-201311
GRAY ME.,1G3
sub69211-12903
sub69211-12220
sub69211-52090
main69211-12220-P6i200703-201311
DOOR OUTSIDE HANDLE-BODY COLOR,W/O(PASSENGER KEY CYLINDER),SILVER ME.,1F7
sub69211-12903
sub69211-12220
sub69211-52090
main69211-12220-P6i200703-201311
SILVER ME.,1F7
sub69211-12903
sub69211-12220
sub69211-52090
main69211-12220-R2i200703-201311
LT.BLUE M.M.,8S1
sub69211-12903
sub69211-12220
sub69211-52090
main69211-12220-R2i200703-201311
DOOR OUTSIDE HANDLE-BODY COLOR,W/O(PASSENGER KEY CYLINDER),LT.BLUE M.M.,8S1
sub69211-12903
sub69211-12220
sub69211-52090
main69211-12220-R8i200703-201304
DK.BLUE MC.,8S6
sub69211-12903
sub69211-12220
sub69211-52090
main69211-12220-R8i200703-201304
DOOR OUTSIDE HANDLE-BODY COLOR,W/O(PASSENGER KEY CYLINDER),DK.BLUE MC.,8S6
sub69211-12903
sub69211-12220
sub69211-52090
main69211-12220-V0i200703-201004
DK.BLUE ME.,8T8
sub69211-12903
sub69211-12220
sub69211-52090
main69211-12220-V0i200703-201004
DOOR OUTSIDE HANDLE-BODY COLOR,W/O(PASSENGER KEY CYLINDER),DK.BLUE ME.,8T8
sub69211-12903
sub69211-12220
sub69211-52090
main69211-12220-V2i201004-201311
BLUE ME.,8T7
sub69211-12903
sub69211-12220
sub69211-52090
main69211-12220-V2i201004-201311
DOOR OUTSIDE HANDLE-BODY COLOR,W/O(PASSENGER KEY CYLINDER),BLUE ME.,8T7
sub69211-12903
sub69211-12220
sub69211-52090
main69211-12220-V4i201004-201311
DOOR OUTSIDE HANDLE-BODY COLOR,W/O(PASSENGER KEY CYLINDER),BLUE ME.,8U6
sub69211-12903
sub69211-12220
sub69211-52090
main69211-12220-V4i201004-201311
BLUE ME.,8U6
sub69211-12903
sub69211-12220
sub69211-52090
main69211-12220-X4i200703-201311
DOOR OUTSIDE HANDLE-BODY COLOR,W/O(PASSENGER KEY CYLINDER),RED M.M.,3R3
sub69211-12903
sub69211-12220
sub69211-52090
main69211-12220-X4i200703-201311
RED M.M.,3R3
sub69211-12903
sub69211-12220
sub69211-52090
main69211-42010i200703-201311
NO PAINT REQ.
69241HPAD, FRONT DOOR OUTSIDE HANDLE, FRONT
main69241-42020i200703-201004
69242EPAD, FRONT DOOR OUTSIDE HANDLE, REAR
main69242-42010i200703-200709
main69242-52020i200710-201004
69277BBEZEL, FRONT DOOR INSIDE HANDLE, RH
main69277-12140-B0i200703-201311
DK.GRAY,TRIM1#
main69277-12140-E0i200703-201304
GREGE,TRIM4#
69278BBEZEL, FRONT DOOR INSIDE HANDLE, LH
main69278-12140-B0i200703-201311
DK.GRAY,TRIM1#
main69278-12140-E0i200703-201304
GREGE,TRIM4#
69293ASNAP, FRONT DOOR OUTSIDE HANDLE
main69293-12030i200703-201004
69293HSNAP, FRONT DOOR OUTSIDE HANDLE, LH
main69293-12040i200703-201004
69310LOCK ASSY, FRONT DOOR, RH
main69030-42210i200703-201010
main69030-53080i201010
69311AROD, FRONT DOOR LOCK OPEN, RH
main69311-12160i200703-201004
69312ROD, FRONT DOOR LOCK OPEN, LH
main69312-12160i200703-201004
69318CSEAL, DOOR LOCK WIRING HARNESS
main69318-51010i200703-201004
69320LOCK ASSY, FRONT DOOR, LH
main69040-12490i200703-201004
main69040-42230i201004-201010
main69040-53090i201010
69410PLATE ASSY, FRONT DOOR LOCK STRIKER
main69410-33010i200703-201004
69710BCABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL, RH
main69710-12120i200703-201004
69720BCABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL, LH
main69710-12120i200703-201004
69750CCABLE ASSY, FRONT DOOR INSIDE LOCKING, RH
main69750-12150i200703-201004
69760CCABLE ASSY, FRONT DOOR INSIDE LOCKING LH
main69750-12150i200703-201004
8420
89743CBRACKET, ELECTRICAL KEY WIRE HARNESS
main89743-47010i201004-201311
RH
main89743-47020i201004-201311
LH
9014850003
main90148-50003
9014860022
main90148-60022
9014880066
main90148-80066
9015940202
main90159-40202
9016450031
main90164-50031
9016650003
main90166-50003
9018905003
main90189-05003
9018905171
main90189-05171

34 parts on this diagram · 1 diagram in section

FRONT DOOR LOCK & HANDLE — Toyota Parts Diagram with OEM Numbers & Prices | EPC Data
