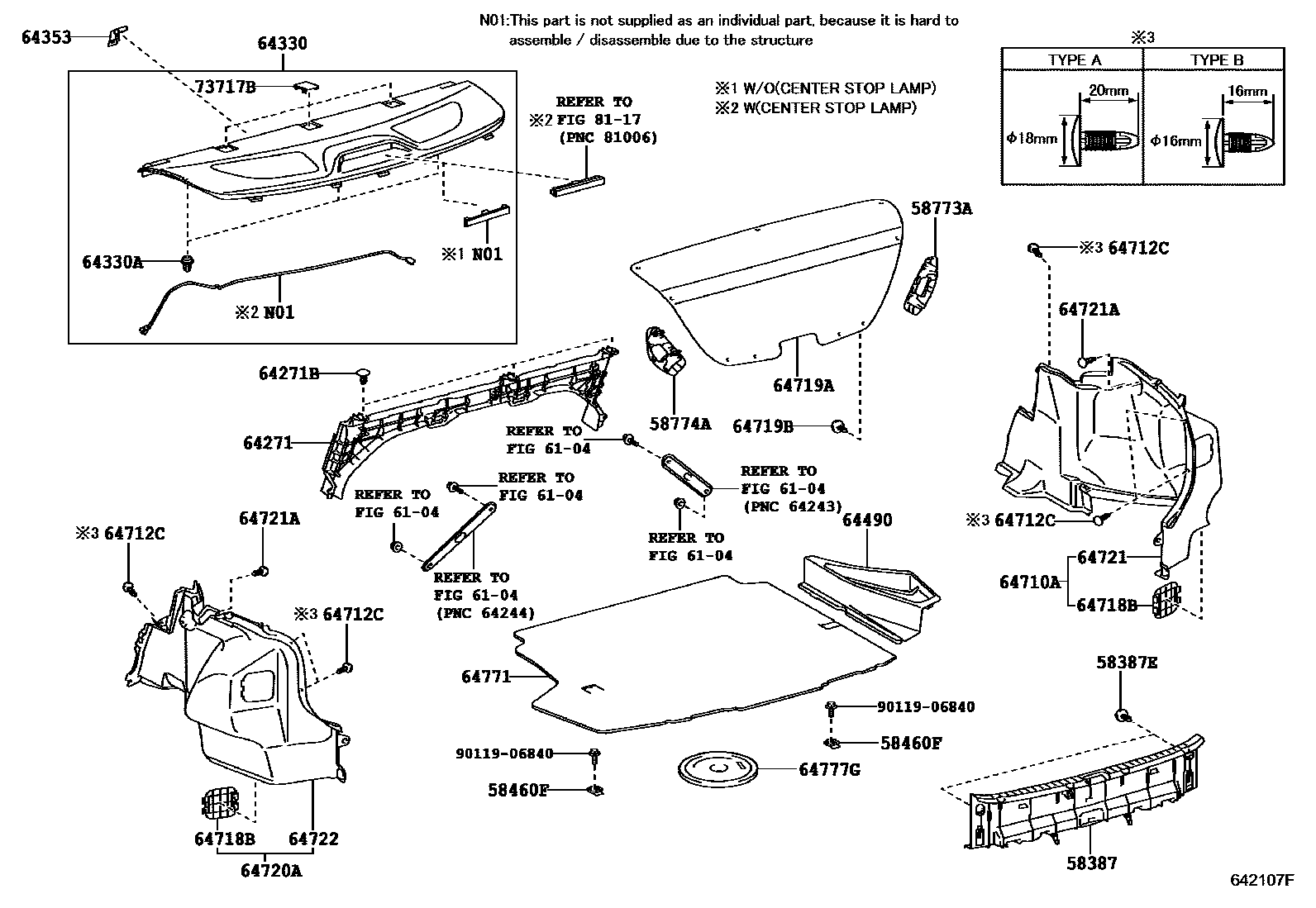

PACKAGE TRAY PANEL & LUGGAGE COMPARTMENT MAT
58387PLATE, REAR FLOOR FINISH
58387ECLIP(FOR REAR FLOOR FINISH PLATE)
BLACK
58460FSTRIKER ASSY, LUGGAGE HOLD BELT
58773ACOVER, LUGGAGE COMPARTMENT SIDE, RH
58774ACOVER, LUGGAGE COMPARTMENT SIDE, LH
6104ROOF PANEL & BACK WINDOW GLASS
64271BOARD, ROOM PARTITION, NO.1
64271BCLIP(FOR ROOM PARTITION BOARD)
BLACK
64330PANEL ASSY, PACKAGE TRAY TRIM
REAR SPOILER-WITH,DK.GRAY,TRIM1#
REAR SPOILER-WITH,ASH BROWN,TRIM4#
REAR SPOILER-WITH,DK.GRAY,TRIM1#
REAR SPOILER-WITH,DK.GRAY,TRIM1#
REAR SPOILER-WITH,ASH BROWN,TRIM4#
REAR SPOILER-WITH,ASH BROWN,TRIM4#
DK.GRAY,TRIM1#; REAR SPOILER-WITH,DK.GRAY,TRIM1#
ASH BROWN,TRIM4#; REAR SPOILER-WITH,ASH BROWN,TRIM4#
DK.GRAY,TRIM1#; DK.GRAY,TRIM1#,4#; REAR SPOILER-WITH,DK.GRAY,TRIM1#; REAR SPOILER-WITH,DK.GRAY,TRIM1#,4#
ASH BROWN,TRIM4#; REAR SPOILER-WITH,ASH BROWN,TRIM4#
64330ACLIP(FOR PACKAGE TRAY TRIM PANEL)
64353COVER, PACKAGE TRAY TRIM BELT HOLE
DK.GRAY,TRIM1#
ASH BROWN,TRIM4#
64490TRAY ASSY, LUGGAGE COMPARTMENT SIDE
64710ACOVER ASSY, LUGGAGE COMPARTMENT TRIM, RH
BLACK,TRIM1#; BLACK,TRIM1#,4#
64712CCLIP(FOR LUGGAGE COMPARTMENT TRIM COVER)
BLACK,TYPE A
BLACK,TYPE B
64718BCOVER, LUGGAGE TRIM SERVICE HOLE
64719ACOVER, LUGGAGE COMPARTMENT DOOR
BLACK,TRIM1#; BLACK,TRIM1#,4#
64719BCLIP(FOR LUGGAGE COMPARTMENT DOOR)
BLACK
64720ACOVER ASSY, LUGGAGE COMPARTMENT TRIM, LH
BLACK,TRIM1#; BLACK,TRIM1#,4#
64721COVER, LUGGAGE COMPARTMENT TRIM, INNER RH
BLACK,TRIM1#; BLACK,TRIM1#,4#
64721ACLIP(FOR LUGGAGE COMPARTMENT TRIM INNER COVER)
BLACK
64722COVER, LUGGAGE COMPARTMENT TRIM, INNER LH
BLACK,TRIM1#; BLACK,TRIM1#,4#
64771COVER, SPARE WHEEL
BLACK,TRIM1#; BLACK,TRIM1#,4#
64777GCUSHION, SPARE WHEEL
73717BCOVER, CHILD RESTRAINT SEAT TETHER ANCHOR
DK.GRAY,TRIM1#,4#,CENTER; DK.GRAY,TRIM1#,CENTER
ASH BROWN,TRIM4#,CENTER
DK.GRAY,TRIM1#,RH
ASH BROWN,TRIM4#,RH
DK.GRAY,TRIM1#,4#,LH; DK.GRAY,TRIM1#,LH
ASH BROWN,TRIM4#,LH
8117CENTER STOP LAMP
9011906840
main90119-06840
26 parts on this diagram · 1 diagram in section
