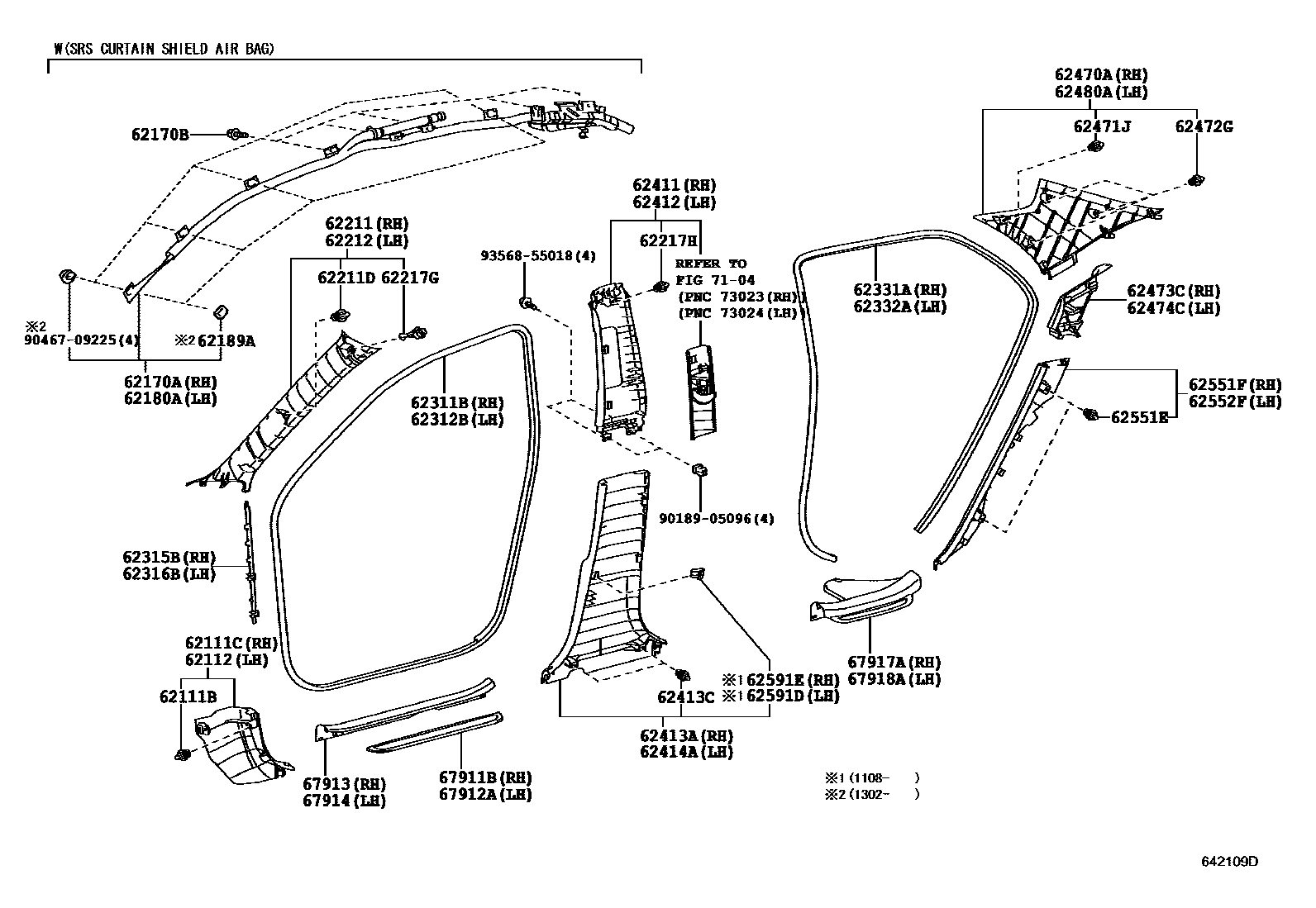

INSIDE TRIM BOARD & DOOR OPENING TRIM MOULDING

62111BCLIP(FOR COWL SIDE TRIM)

main90467-10161iZRE15#200703-201004

62111CBOARD, COWL SIDE TRIM, RH

main62111-12300-B0iZRE152200703-201311

DK.GRAY,TRIM1#

main62111-12300-E1iZRE15#..E,N200703-201304

GREGE,TRIM4#

62112BOARD, COWL SIDE TRIM, LH

main62112-12330-B0iZRE152200703-201311

DK.GRAY,TRIM1#

main62112-12330-E1iZRE152..N200703-201304

GREGE,TRIM4#

62170AAIRBAG ASSY, CURTAIN SHIELD, RH

main62170-12030iZRE153201004-201203

SRS AIR BAG-WITH(DRIVER&PASSENGER&SIDE&CURTAIN&KNEE)

sub62170-12031

main62170-12030iZRE152..4FC..N201002-201004

sub62170-12031

main62170-12031iZRE153201204-201301

SRS AIR BAG-WITH(DRIVER&PASSENGER&SIDE&CURTAIN&KNEE)

sub62170-12032

main62170-12032iZRE153201302

SRS AIR BAG-WITH(DRIVER&PASSENGER&SIDE&CURTAIN&KNEE)

62170BBOLT, W/WASHER

main90119-06869iZRE152..4FC..N201002-201004

main90119-06869iZRE153201004

SRS AIR BAG-WITH(DRIVER&PASSENGER&SIDE&CURTAIN&KNEE)

62180AAIRBAG ASSY, CURTAIN SHIELD, LH

main62180-12030iZRE152..4FC..N201002-201004

sub62180-12031

main62180-12030iZRE153201004-201203

SRS AIR BAG-WITH(DRIVER&PASSENGER&SIDE&CURTAIN&KNEE)

sub62180-12031

main62180-12031iZRE153201204-201301

SRS AIR BAG-WITH(DRIVER&PASSENGER&SIDE&CURTAIN&KNEE)

sub62180-12032

main62180-12032iZRE153201302

SRS AIR BAG-WITH(DRIVER&PASSENGER&SIDE&CURTAIN&KNEE)

62189ASPACER, CURTAIN SHIELD AIRBAG CLIP

main62189-33010iZRE153201302

SRS AIR BAG-WITH(DRIVER&PASSENGER&SIDE&CURTAIN&KNEE)

62211GARNISH, FRONT PILLAR, RH

main62211-12410-B0iZRE153201002-201311

LT.GRAY,TRIM1#

main62211-12410-B0iZRE153201004-201311

SRS AIR BAG-WITH(DRIVER&PASSENGER&SIDE&CURTAIN&KNEE),LT.GRAY,TRIM1#

main62211-12410-E0iZRE152..N201004-201103

SRS AIR BAG-WITH(DRIVER&PASSENGER&SIDE&CURTAIN&KNEE),GREGE,TRIM4#

main62211-12410-E0iZRE153201002-201103

GREGE,TRIM4#

main62211-12420-B0iZRE152200703-201311

LT.GRAY,TRIM1#

main62211-12420-E0iZRE152..N200703-201103

GREGE,TRIM4#

62211DCLIP(FOR FRONT BODY PILLAR GARNISH)

main90467-10161iZRE152..4FC;ZRE152..6F..D200703-201004

62212GARNISH, FRONT PILLAR, LH

main62212-12410-B0iZRE153201002-201311

LT.GRAY,TRIM1#

main62212-12410-B0iZRE153201004-201311

SRS AIR BAG-WITH(DRIVER&PASSENGER&SIDE&CURTAIN&KNEE),LT.GRAY,TRIM1#

main62212-12410-E0iZRE152..N201002-201103

GREGE,TRIM4#

main62212-12410-E0iZRE153201004-201103

SRS AIR BAG-WITH(DRIVER&PASSENGER&SIDE&CURTAIN&KNEE),GREGE,TRIM4#

main62212-12420-B0iZRE152..4FC..N200703-201311

LT.GRAY,TRIM1#

main62212-12420-E0iZRE152..N200703-201103

GREGE,TRIM4#

62217GCLIP, FRONT PILLAR GARNISH

main62217-52010iZRE152..N200703-201004

main90950-08004iZRE152..4FC..N201002-201004

main90950-08004iZRE153201004

SRS AIR BAG-WITH(DRIVER&PASSENGER&SIDE&CURTAIN&KNEE)

62217HCLIP, CENTER PILLER GARNISH

main90467-10167iZRE152..4FC;ZRE152..6F..D200703-201004

62311BWEATHERSTRIP, FRONT DOOR OPENING TRIM, RH

main62311-12200-B0iZRE15#200703-201311

DK.GRAY,TRIM1#

main62311-12200-E1iZRE152..N200703-201304

GREGE,TRIM4#

62312BWEATHERSTRIP, FRONT DOOR OPENING TRIM, LH

main62312-12200-B0iZRE15#200703-201311

DK.GRAY,TRIM1#

main62312-12200-E1iZRE152..N200703-201304

GREGE,TRIM4#

62315BCOVER, FRONT DOOR OPENING TRIM, RH

main62315-12020-B0iZRE152200703-201311

DK.GRAY,TRIM1#

main62315-12020-E0iZRE152..N200703-201103

GREGE,TRIM4#

62316BCOVER, FRONT DOOR OPENING TRIM, LH

main62316-12020-B0iZRE152200703-201311

DK.GRAY,TRIM1#

main62316-12020-E0iZRE152..N200703-201103

GREGE,TRIM4#

62331AWEATHERSTRIP, REAR DOOR OPENING TRIM, RH

main62331-12220-B0iZRE15#200703-201311

DK.GRAY,TRIM1#

main62331-12220-E1iZRE152..N200703-201304

GREGE,TRIM4#

62332AWEATHERSTRIP, REAR DOOR OPENING TRIM, LH

main62332-12220-B0iZRE152200703-201311

DK.GRAY,TRIM1#

main62332-12220-E1iZRE152..N200703-201304

GREGE,TRIM4#

62411GARNISH, CENTER PILLAR, RH

main62410-12060-B0iZRE152200703-201311

LT.GRAY,TRIM1#

main62410-12060-E0iZRE15#..E,N200703-201304

GREGE,TRIM4#

62412GARNISH, CENTER PILLAR, LH

main62420-12060-B0iZRE152200703-201311

LT.GRAY,TRIM1#

main62420-12060-E0iZRE152..N200703-201304

GREGE,TRIM4#

62413AGARNISH, CENTER PILLAR, LOWER RH

main62413-12250-B0iZRE152200703-201311

DK.GRAY,TRIM1#

main62413-12250-E1iZRE15#..E,N200703-201304

GREGE,TRIM4#

62413CCLIP (FOR CENTER LOWER GARNISH)

main90467-10167iZRE15#200703-201004

62414AGARNISH, CENTER PILLAR, LOWER LH

main62414-12250-B0iZRE152200703-201311

DK.GRAY,TRIM1#

main62414-12250-E1iZRE152..N200703-201304

GREGE,TRIM4#

62470AGARNISH ASSY, ROOF SIDE, INNER RH

main62470-12140-B1iZRE152201004-201311

SRS AIR BAG-WITH(DRIVER&PASSENGER&SIDE&CURTAIN&KNEE),LT.GRAY,TRIM1#

main62470-12140-B1iZRE152201002-201311

LT.GRAY,TRIM1#

main62470-12140-E1iZRE152..N201002-201304

GREGE,TRIM4#

main62470-12140-E1iZRE153201004-201304

SRS AIR BAG-WITH(DRIVER&PASSENGER&SIDE&CURTAIN&KNEE),GREGE,TRIM4#

main62470-12150-B1iZRE152..4FC..N200703-201311

LT.GRAY,TRIM1#

main62470-12150-E1iZRE152..N200703-201304

GREGE,TRIM4#

62471JCLIP (FOR ROOF SIDE GARNISH)

main90467-10188iZRE152200703-201004

62472GCLIP (FOR ROOF SIDE GARNISH)

main90467-10161iZRE152200703-201004

62473CBOARD, ROOF SIDE INNER GARNISH, RH

main62473-12020-B0iZRE152200703-200708

DK.GRAY,TRIM1#

sub62473-12020

main62473-12020-E0iZRE152..N200703-200708

ASH BROWN,TRIM4#

sub62473-12020

main62473-12021-B0iZRE152200708-201311

DK.GRAY,TRIM1#

main62473-12021-B0iZRE152..D201004-201311

DK.GRAY,TRIM1#,4#

main62473-12021-E0iZRE152..N200708-201004

ASH BROWN,TRIM4#

62474CBOARD, ROOF SIDE INNER GARNISH, LH

main62474-12020-B0iZRE152200703-200708

DK.GRAY,TRIM1#

sub62474-12020

main62474-12020-E0iZRE152..N200703-200708

ASH BROWN,TRIM4#

sub62474-12020

main62474-12021-B0iZRE152..D200708-201311

DK.GRAY,TRIM1#

main62474-12021-B0iZRE152..D201004-201311

DK.GRAY,TRIM1#,4#

main62474-12021-E0iZRE152..N200708-201004

ASH BROWN,TRIM4#

62480AGARNISH ASSY, ROOF SIDE, INNER LH

main62480-12140-B1iZRE152..N201002-201311

LT.GRAY,TRIM1#

main62480-12140-B1iZRE153201004-201311

SRS AIR BAG-WITH(DRIVER&PASSENGER&SIDE&CURTAIN&KNEE),LT.GRAY,TRIM1#

main62480-12140-E1iZRE152..N201002-201304

GREGE,TRIM4#

main62480-12140-E1iZRE153201004-201304

SRS AIR BAG-WITH(DRIVER&PASSENGER&SIDE&CURTAIN&KNEE),GREGE,TRIM4#

main62480-12150-B1iZRE152200703-201311

LT.GRAY,TRIM1#

main62480-12150-E1iZRE152..N200703-201304

GREGE,TRIM4#

62551ECLIP(FOR REAR SEAT SIDE GARNISH)

main90467-10161iZRE152..4FC;ZRE152..6F..D200703-201004

62551FGARNISH, REAR SEAT SIDE, RH

main62551-12210-B0iZRE152200703-201311

DK.GRAY,TRIM1#

main62551-12210-E1iZRE152..N200703-201304

GREGE,TRIM4#

62552FGARNISH, REAR SEAT SIDE, LH

main62552-12190-B0iZRE15#200703-201311

DK.GRAY,TRIM1#

main62552-12190-E1iZRE152..N200703-201304

GREGE,TRIM4#

62591DPLATE, SIDE TRIM BASE, NO.1

main62591-12040iZRE15#201108

62591EPLATE, SIDE TRIM BASE, NO.2

main62592-12040iZRE15#201108

67911BPLATE, FRONT DOOR SCUFF, OUTSIDE, RH

main67911-12080-B1iZRE152..N200703-201311

DK.GRAY,TRIM1#,4#

sub67911-12080

main67911-12080-B1iZRE152..N200703-201311

DK.GRAY,TRIM1#

sub67911-12080

67912APLATE, FRONT DOOR SCUFF, OUTSIDE LH

main67911-12080-B1iZRE15#..E,N200703-201311

DK.GRAY,TRIM1#

sub67911-12080

main67911-12080-B1iZRE152..N200703-201311

DK.GRAY,TRIM1#,4#

sub67911-12080

67913PLATE, FRONT DOOR SCUFF, RH

main67913-12290-B0iZRE152200703-201311

DK.GRAY,TRIM1#

main67913-12290-E1iZRE152..N200703-201304

GREGE,TRIM4#

67914PLATE, FRONT DOOR SCUFF, LH

main67914-12250-B0iZRE15#200703-201311

DK.GRAY,TRIM1#

main67914-12250-E1iZRE152..N200703-201304

GREGE,TRIM4#

67917APLATE, REAR DOOR SCUFF, RH

main67917-12140-B0iZRE152200703-201311

DK.GRAY,TRIM1#

main67917-12140-E1iZRE152..N200703-201304

GREGE,TRIM4#

67918APLATE, REAR DOOR SCUFF, LH

main67918-12130-B0iZRE152200703-201311

DK.GRAY,TRIM1#

main67918-12130-E1iZRE152..N200703-201304

GREGE,TRIM4#

7104

9018905096

main90189-05096

9046709225

main90467-09225

9356855018

main93568-55018

44 parts on this diagram · 1 diagram in section
