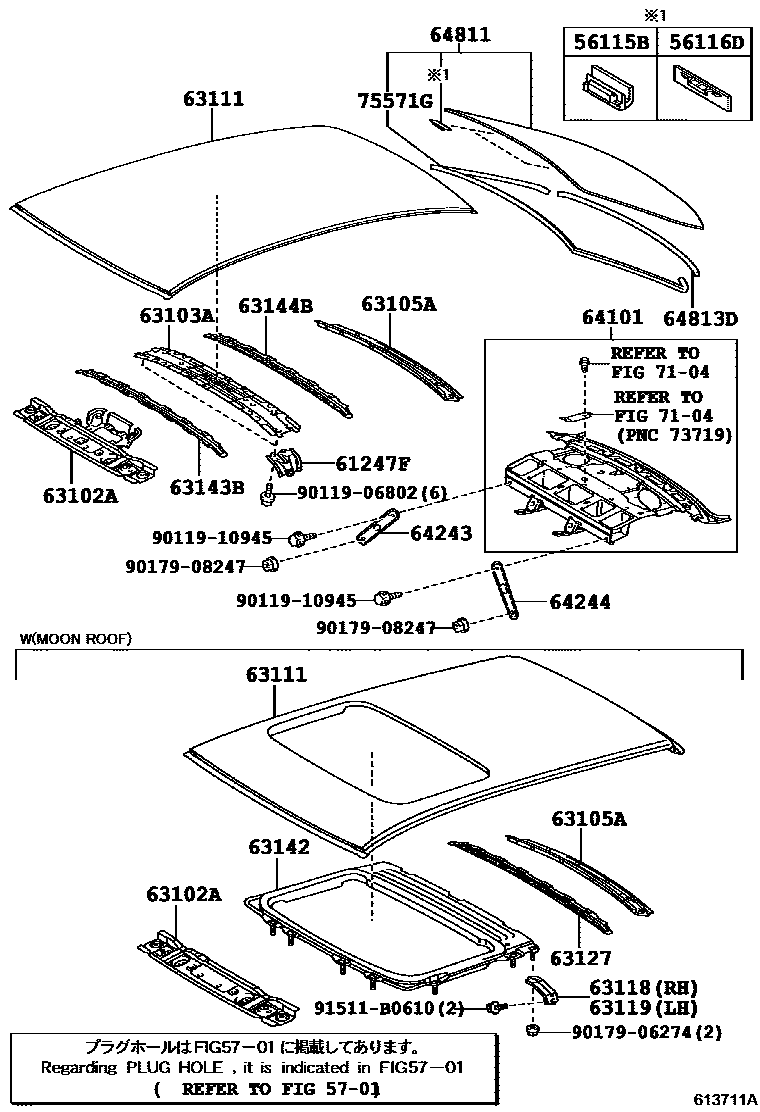

ROOF PANEL & BACK WINDOW GLASS

0001 1ROOF PANEL 0002 1MOON ROOF

56115BSTOPPER, BACK WINDOW GLASS, NO.1

main56115-30120×2iZRE152200703-200812

56116DSTOPPER, BACK WINDOW GLASS, NO.2

main56116-22050×2iZRE152..4FC;ZRE152..6F..D200812-201004

5701HOLE PLUG

→ Go to FIG 57-01

61247FREINFORCEMENT, ROOF SIDE RAIL, INNER

main61247-12050×2iZRE152200703-200812

63102APANEL SUB-ASSY, WINDSHIELD HEADER

main63102-12230iZRE152..6F..N200812-201002

main63102-12240supersedes 63102-12230iZRE152201004

MOON ROOF-WITH

63103AREINFORCEMENT SUB-ASSY, ROOF PANEL

main63141-12290iZRE152..4FC;ZRE152..6F..D200812-201004

63105AFRAME SUB-ASSY, BACK DOOR OPENING

main63105-12290iZRE152..4FC;ZRE152..6F..D200812-201004

63111PANEL, ROOF

main63111-12870iZRE152..6F..N200812-201002

main63111-12880supersedes 63111-12870iZRE152201004

MOON ROOF-WITH

63118SUPPORT, ROOF PANEL, RH

main63118-12120iZRE153201004-201203

MOON ROOF-WITH

63119SUPPORT, ROOF PANEL, LH

main63118-12120iZRE152201004

MOON ROOF-WITH

63127REINFORCEMENT, ROOF PANEL, NO.5

main63127-12010iZRE153201004-201203

MOON ROOF-WITH

63142REINFORCEMENT, ROOF PANEL, NO.2

main63142-12140iZRE153201004-201203

MOON ROOF-WITH

63143BREINFORCEMENT, ROOF PANEL, NO.3

main63143-12130iZRE152200703-200812

63144BREINFORCEMENT, ROOF PANEL, NO.4

main63144-12110iZRE152201004

64101PANEL SUB-ASSY, UPPER BACK

main64101-12840iZRE152200703-200812

64243PANEL, ROOM PARTITION, NO.2 RH

main64243-12010iZRE152200703-200812

64244PANEL, ROOM PARTITION, NO.2 LH

main64244-12010iZRE152200703-200812

64811GLASS, BACK WINDOW

main64801-12540iZRE152200703-200807

*UVCEHT,T=3.1,GREEN

main64801-12541iZRE152200808-200812

*UVCEHT,T=3.1,GREEN

64813DDAM, BACK WINDOW GLASS ADHESIVE

main64813-12180iZRE152200703-200812

7104SEAT BELT & CHILD RESTRAINT SEAT

→ Go to FIG 71-04

75571GMOULDING, BACK WINDOW, OUTSIDE UPPER, NO.1

main75571-12A10iZRE152200703-200812

9011906802

main90119-06802

9011910945

main90119-10945

9017906274

main90179-06274

9017908247

main90179-08247

91511B0610

main91511-B0610

26 parts on this diagram · 2 diagrams in section
