FLOOR INSULATOR

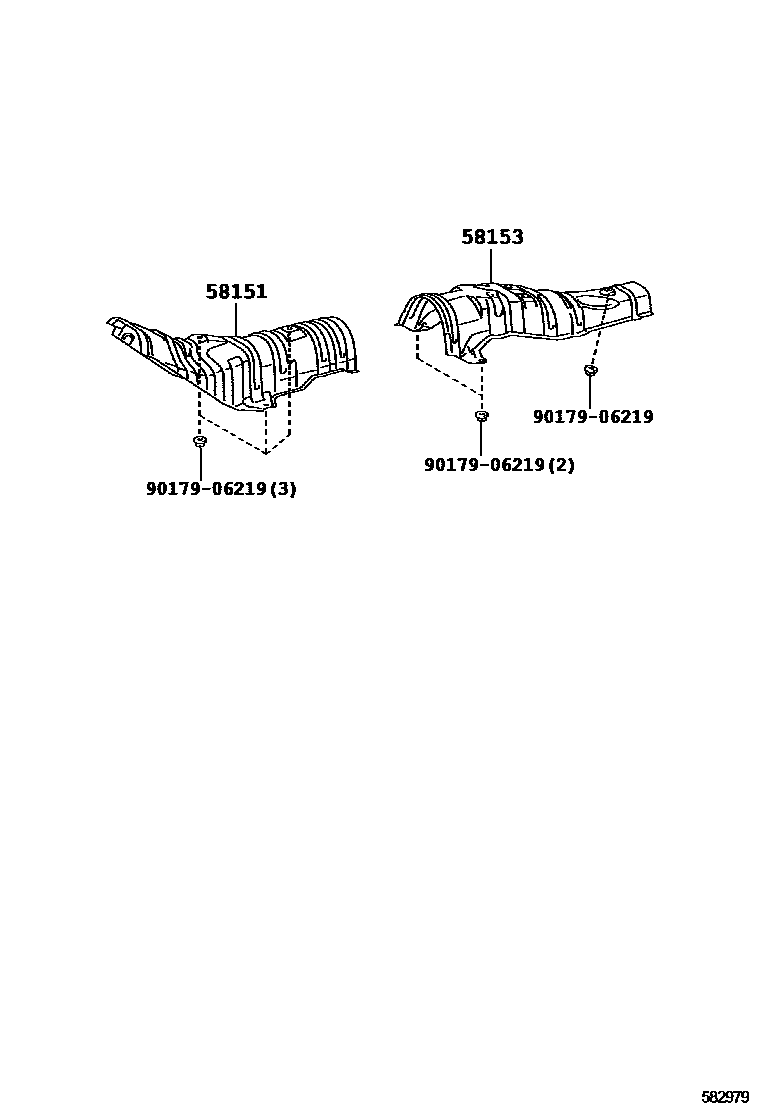

Parts diagram

58151INSULATOR, FRONT FLOOR HEAT, NO.1

main58151-12240i200703-200801

main58151-12241i200802-200812

main58151-12310i200812-201002

58153INSULATOR, FRONT FLOOR HEAT, NO.2

main58153-12180i200703-200801

main58153-12181i200802-200812

9017906219

main90179-06219

3 parts on this diagram · 1 diagram in section
