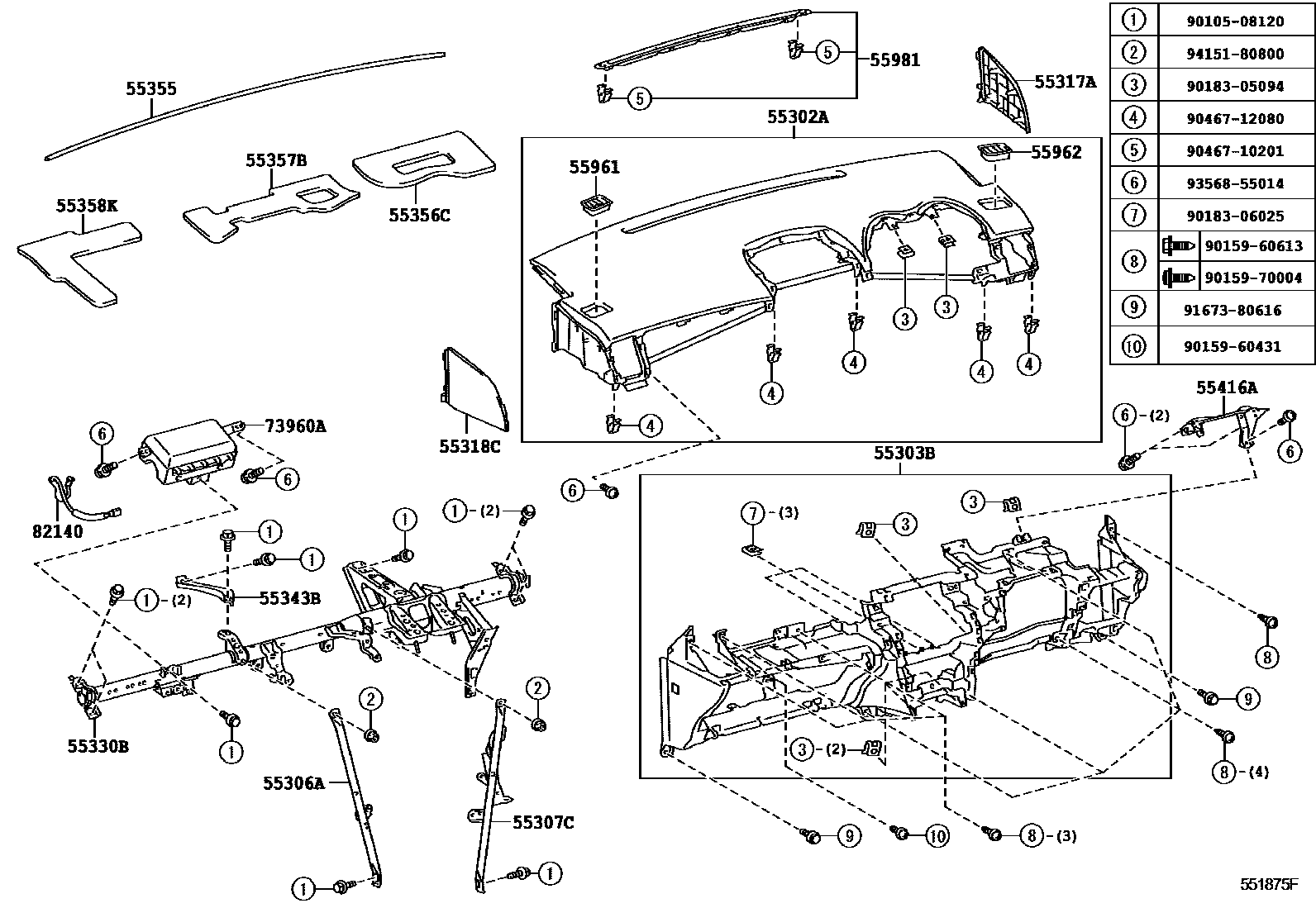

INSTRUMENT PANEL & GLOVE COMPARTMENT

0001 1 0002 1DRIVER SIDE 0003 1CENTER 0004 1PASSENGER SIDE 0005 1DRIVER SIDE 0006 1CENTER 0007 1PASSENGER SIDE

55302APANEL SUB-ASSY, INSTRUMENT, UPPER

main55302-12130-B0iZRE152200703-200804

DK.GRAY,TRIM1#

sub55302-12131

main55302-12130-E0iZRE152..N200703-200804

ASH BROWN,TRIM4#

sub55302-12131

main55302-12131-B0iZRE15#..E,N201004-201311

DK.GRAY,TRIM1#,4#

main55302-12131-B0iZRE152200805-201311

DK.GRAY,TRIM1#

main55302-12131-E0iZRE152..N200805-201004

ASH BROWN,TRIM4#

55303BPANEL SUB-ASSY, INSTRUMENT, LOWER

main55303-12360-B0iZRE152200703-201311

DK.GRAY,TRIM1#

main55303-12360-E0iZRE15#..E,N200703-201103

GREGE,TRIM4#

55306ABRACE SUB-ASSY, INSTRUMENT PANEL, NO.1

main55306-12370iZRE152200703-201004

55307CBRACE SUB-ASSY, INSTRUMENT PANEL, NO.2

main55307-12320iZRE152200703-201004

main55307-12330iZRE152..4FC..N201002-201004

main55307-12330iZRE153201010

SRS AIR BAG-WITH(DRIVER&PASSENGER&SIDE&CURTAIN&KNEE)

main55307-12420iZRE152201004-201010

main55307-12430iZRE152201004-201010

SRS AIR BAG-WITH(DRIVER&PASSENGER&SIDE&CURTAIN&KNEE)

55317APANEL, INSTRUMENT SIDE, RH

main55317-12100-B0iZRE152200703-201311

DK.GRAY,TRIM1#

main55317-12100-E0iZRE152..N200703-201103

GREGE,TRIM4#

55318CPANEL, INSTRUMENT SIDE, LH

main55318-12090-B0iZRE152200703-201311

DK.GRAY,TRIM1#

main55318-12090-E0iZRE152..N200703-201103

GREGE,TRIM4#

55330BREINFORCEMENT ASSY, INSTRUMENT PANEL

main55330-12710iZRE152200703-201311

main55330-12720iZRE152..N201002-201004

main55330-12720iZRE153201004-201311

SRS AIR BAG-WITH(DRIVER&PASSENGER&SIDE&CURTAIN&KNEE)

55343BBRACE, INSTRUMENT PANEL TO COWL, CENTER

main55343-12070iZRE15#200703-201004

55355CUSHION, INSTRUMENT PANEL, NO.1

main55355-12110iZRE152200703-201004

55356CCUSHION, INSTRUMENT PANEL, NO.2

main55356-12150iZRE152200703-201004

55357BCUSHION, INSTRUMENT PANEL, NO.3

main55357-12090iZRE152200703-201004

55358KCUSHION, INSTRUMENT PANEL, NO.4

main55358-12080iZRE152200703-201004

55416ARETAINER, METER HOOD, NO.1

main55416-12080iZRE152..6F..N200703-201004

55961NOZZLE, SIDE DEFROSTER, NO.1

main55961-12230-B0iZRE15#..E,N201004-201311

DK.GRAY,TRIM1#,4#

main55961-12230-B0iZRE152200703-201311

DK.GRAY,TRIM1#

main55961-12230-E0iZRE152..N200703-201004

ASH BROWN,TRIM4#

55962NOZZLE, SIDE DEFROSTER, NO.2

main55962-12200-B0iZRE152..D201004-201311

DK.GRAY,TRIM1#,4#

main55962-12200-B0iZRE152200703-201311

DK.GRAY,TRIM1#

main55962-12200-E0iZRE152..N200703-201004

ASH BROWN,TRIM4#

55981GARNISH, DEFROSTER NOZZLE, NO.1

main55981-12170iZRE152..6F..N200703-201004

73960AAIRBAG ASSY, INSTRUMENT PANEL PASSENGER W/O DOOR

main73960-12140iZRE152..4FC;ZRE152..6F..D200703-201311

sub73960-12430

82140WIRE ASSY, INSTRUMENT PANEL

main82140-1A200iZRE152..6F..N200703-201004

9010508120

main90105-08120

9015960431

main90159-60431

9015960613

main90159-60613

9015970004

main90159-70004

9018305094

main90183-05094

9018306025

main90183-06025

9046710201

main90467-10201

9046712080

main90467-12080

9167380616

main91673-80616

9356855014

main93568-55014

9415180800

main94151-80800

29 parts on this diagram · 7 diagrams in section
