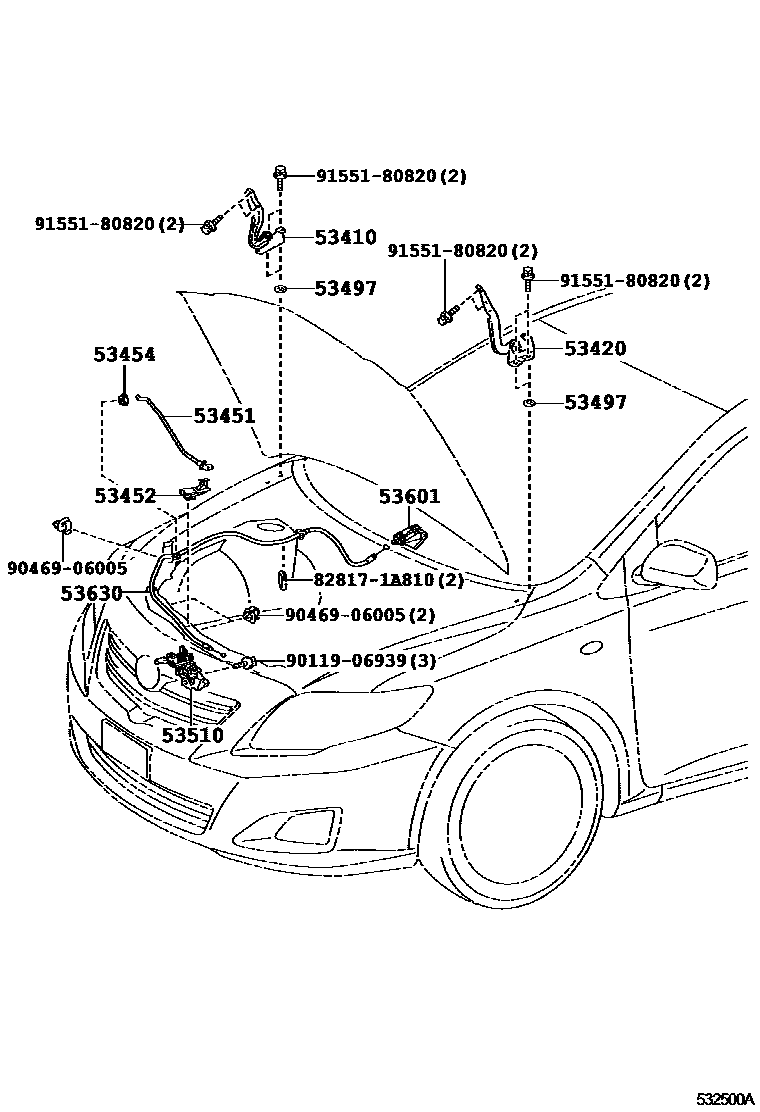

HOOD LOCK & HINGE

53410HINGE ASSY, HOOD, RH

main53410-12550iZRE152..4FC;ZRE152..6F..D200812-201004

53420HINGE ASSY, HOOD, LH

main53420-12520iZRE152..6F..N200812-201002

53451ROD, HOOD SUPPORT

main53440-12130iZRE152200703-200812

53452HOLDER, HOOD STAY

main53452-12070iZRE152..6F..N200812-201002

53454CLIP, HOOD SUPPORT ROD

main53454-12030iZRE152200703-200705

main53454-12040iZRE152200706-200812

53497PAD, HOOD HINGE, NO.1

main53497-20070×4iZRE15#201004

T=2.0

main53497-42010×2iZRE152..4FC;ZRE152..6F..D200812-201004

T=0.5

53510LOCK ASSY, HOOD

main53510-12890iZRE152..4FC;ZRE152..6F..D200812-201004

main53510-12A00iZRE152..N200703-200812

ANTI-THEFT SYSTEM-WITH(IMMOBILIZER & ALARM)

53601LEVER SUB-ASSY, HOOD LOCK CONTROL

main53601-52010-B3iZRE152200703-200812

DK.GRAY,TRIM1#

main53601-52010-E4iZRE15#..E,N201004-201103

GREGE,TRIM4#

53630CABLE ASSY, HOOD LOCK CONTROL

main53630-12580iZRE152..4FC;ZRE152..6F..D200812-201004

828171A810PROTECTOR, WIRING HARNESS, NO.1

main82817-1A810

9011906939

main90119-06939

9046906005

main90469-06005

9155180820

main91551-80820

13 parts on this diagram · 1 diagram in section
