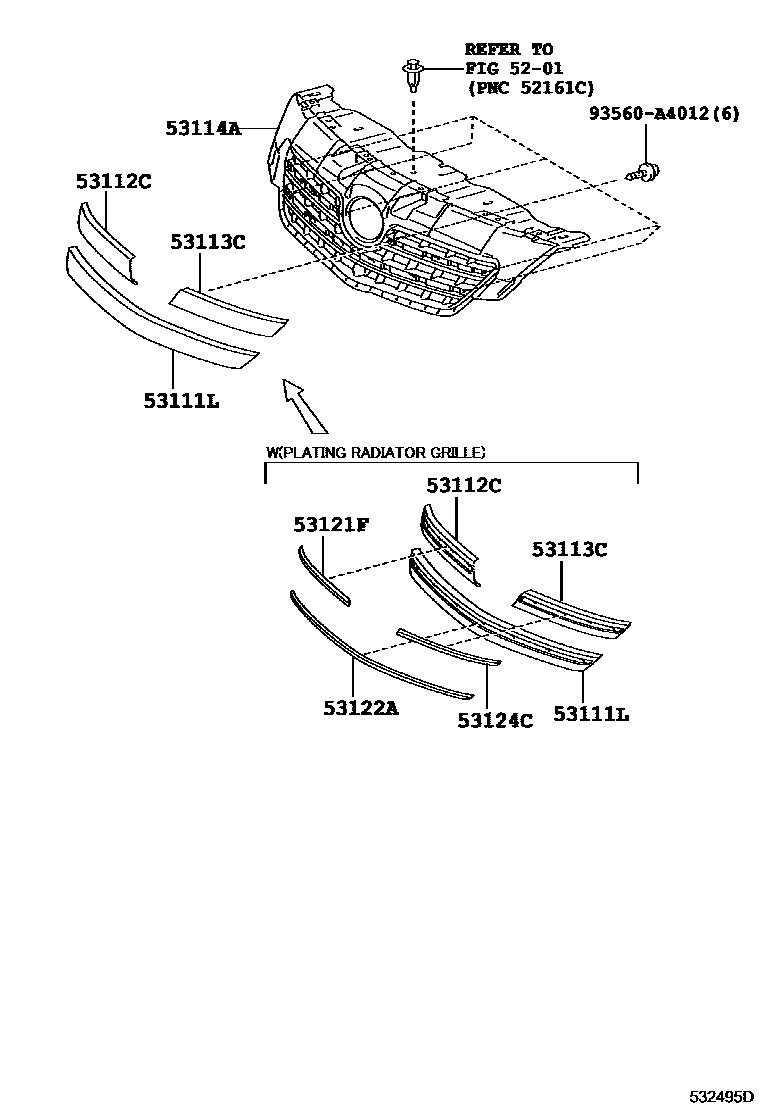

RADIATOR GRILLE
5201FRONT BUMPER & BUMPER STAY
53111GRILLE, RADIATOR
NO PAINT REQ.
RADIATOR GRILLE-WITH(BODY COLOR & PLATED),SUPER WHITE 2,040; SUPER WHITE 2,040
RADIATOR GRILLE-WITH(BODY COLOR & PLATED),SILVER ME.,1F7; SILVER ME.,1F7
GRAY ME.,1G3; RADIATOR GRILLE-WITH(BODY COLOR & PLATED),GRAY ME.,1G3
BLACK MC.,209; RADIATOR GRILLE-WITH(BODY COLOR & PLATED),BLACK MC.,209
RADIATOR GRILLE-WITH(BODY COLOR & PLATED),RED M.M.,3R3; RED M.M.,3R3
LT.BLUE M.M.,8S1; RADIATOR GRILLE-WITH(BODY COLOR & PLATED),LT.BLUE M.M.,8S1
DK.BLUE MC.,8S6; RADIATOR GRILLE-WITH(BODY COLOR & PLATED),DK.BLUE MC.,8S6
BLUE ME.,8T7; RADIATOR GRILLE-WITH(BODY COLOR & PLATED),BLUE ME.,8T7
BLUE ME.,8U6; RADIATOR GRILLE-WITH(BODY COLOR & PLATED),BLUE ME.,8U6
53111LGRILLE SUB-ASSY, RADIATOR, CENTER
RADIATOR GRILLE-PLATING
53112CGRILLE, RADIATOR, LOWER RH
RADIATOR GRILLE-PLATING
53113CGRILLE, RADIATOR, LOWER LH
RADIATOR GRILLE-PLATING
53121FMOULDING, RADIATOR GRILLE, UPPER RH
RADIATOR GRILLE-PLATING
RADIATOR GRILLE-WITH(BODY COLOR & PLATED)
53122AMOULDING, RADIATOR GRILLE, LOWER
RADIATOR GRILLE-PLATING
RADIATOR GRILLE-WITH(BODY COLOR & PLATED)
53124CMOULDING, RADIATOR GRILLE, UPPER LH
RADIATOR GRILLE-PLATING
RADIATOR GRILLE-WITH(BODY COLOR & PLATED)
93560A4012
main93560-A4012
10 parts on this diagram · 2 diagrams in section
