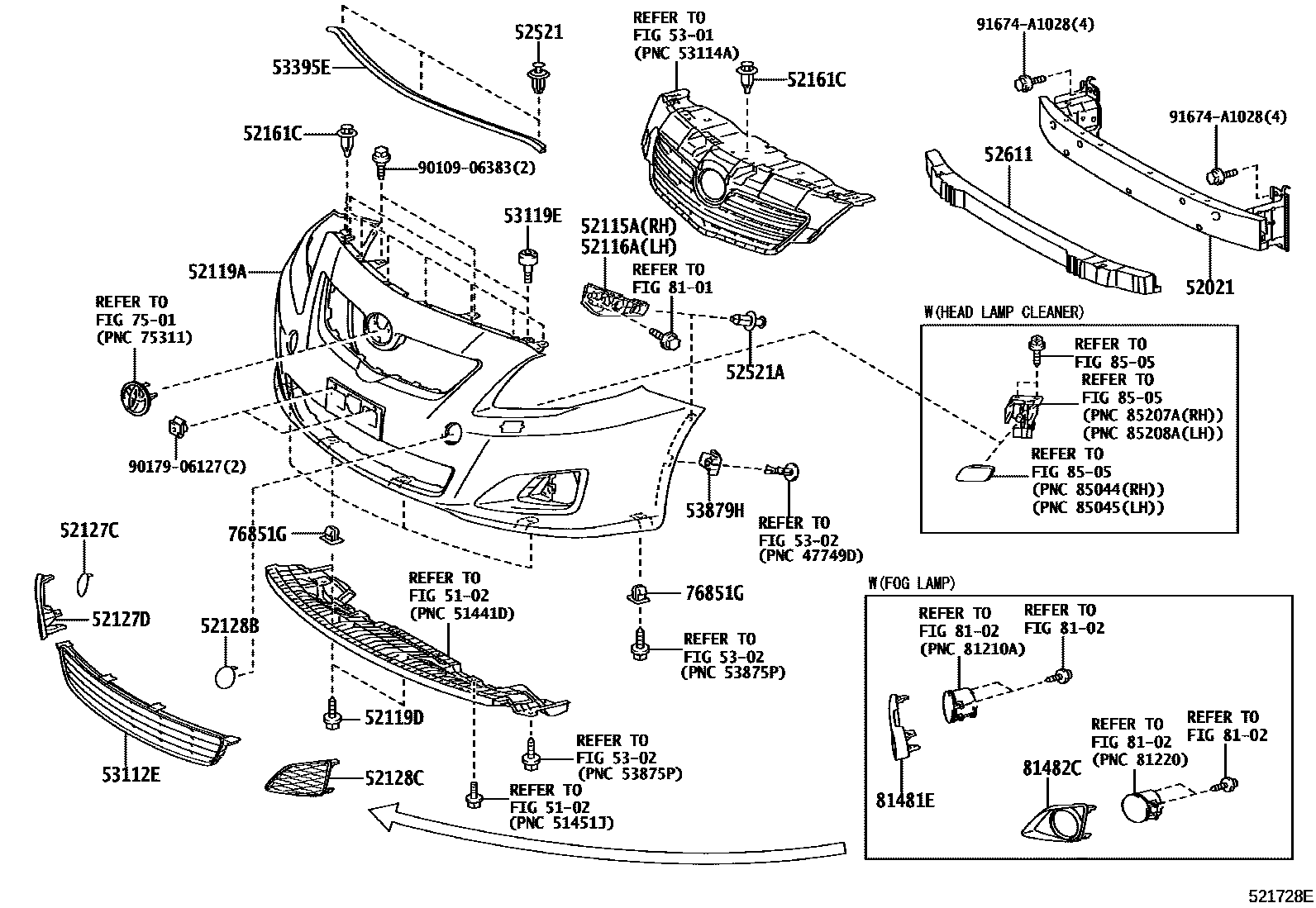

FRONT BUMPER & BUMPER STAY
5102SUSPENSION CROSSMEMBER & UNDER COVER
52021REINFORCEMENT SUB-ASSY, FRONT BUMPER
52115ASUPPORT, FRONT BUMPER SIDE, RH
52116ASUPPORT, FRONT BUMPER SIDE, LH
52119ACOVER, FRONT BUMPER
PAINT REQ.
PAINT REQ.
PAINT REQ.; PAINT REQ.,HEADLAMP CLEANER-WITH; PAINT REQ.,HEADLAMP CLEANER-WITH&FRONT FOG LAMP-WITH
PAINT REQ.,HEAD LAMP CLEANER-WITH; PAINT REQ.,HEAD LAMP CLEANER-WITH&FRONT FOG LAMP-WITH
52119DSCREW, NO.1
52127CCOVER, FRONT BUMPER HOLE
SUPER WHITE 2,040
SILVER ME.,1F7
GRAY ME.,1G3
BLACK MC.,209
RED M.M.,3R3
SUPER RED II,3E5
LT.BLUE M.M.,8S1
DK.BLUE MC.,8S6
DK.BLUE ME.,8T8
52128BCOVER, FRONT BUMPER HOLE, LH
SUPER WHITE 2,040
SILVER ME.,1F7
GRAY ME.,1G3
BLACK MC.,209
RED M.M.,3R3
SUPER RED II,3E5
LT.BLUE M.M.,8S1
DK.BLUE MC.,8S6
DK.BLUE ME.,8T8
52161CPIECE, FRONT BUMPER
52521RETAINER, FRONT BUMPER, UPPER CENTER
BLACK
52521ACLIP(FOR FRONT BUMPER RETAINER)
DK.GRAY
5301RADIATOR GRILLE
5302HOOD & FRONT FENDER
53112EGRILLE, RADIATOR, LOWER NO.1
NO PAINT REQ.
NO PAINT REQ.
53119EPROTECTOR, RADIATOR GRILLE
53395ESEAL, HOOD TO FRONT END PANEL
53879HRETAINER, FRONT FENDER LINER
7501EMBLEM & NAME PLATE (EXTERIOR & INTERIOR)
76851GGROMMET, SCREW, NO.1
8101HEADLAMP
8102FOG LAMP
81481ECOVER, FOG LAMP, RH
FRONT FOG LAMP-WITH; HEADLAMP CLEANER-WITH&FRONT FOG LAMP-WITH; RADIATOR GRILLE-WITH(BODY COLOR & PLATED)&FRONT FOG LAMP-WITH
FRONT FOG LAMP-WITH; HEAD LAMP CLEANER-WITH&FRONT FOG LAMP-WITH; RADIATOR GRILLE-PLATING&FRONT FOG LAMP-WITH
81482CCOVER, FOG LAMP, LH
FRONT FOG LAMP-WITH; HEADLAMP CLEANER-WITH&FRONT FOG LAMP-WITH; RADIATOR GRILLE-WITH(BODY COLOR & PLATED)&FRONT FOG LAMP-WITH
FRONT FOG LAMP-WITH(FOG LAMP); HEAD LAMP CLEANER-WITH&FRONT FOG LAMP-WITH(FOG LAMP); RADIATOR GRILLE-PLATING&FRONT FOG LAMP-WITH(FOG LAMP)
8505HEADLAMP CLEANER
9010906383
main90109-06383
9017906127
main90179-06127
91674A1028
main91674-A1028
30 parts on this diagram · 2 diagrams in section
