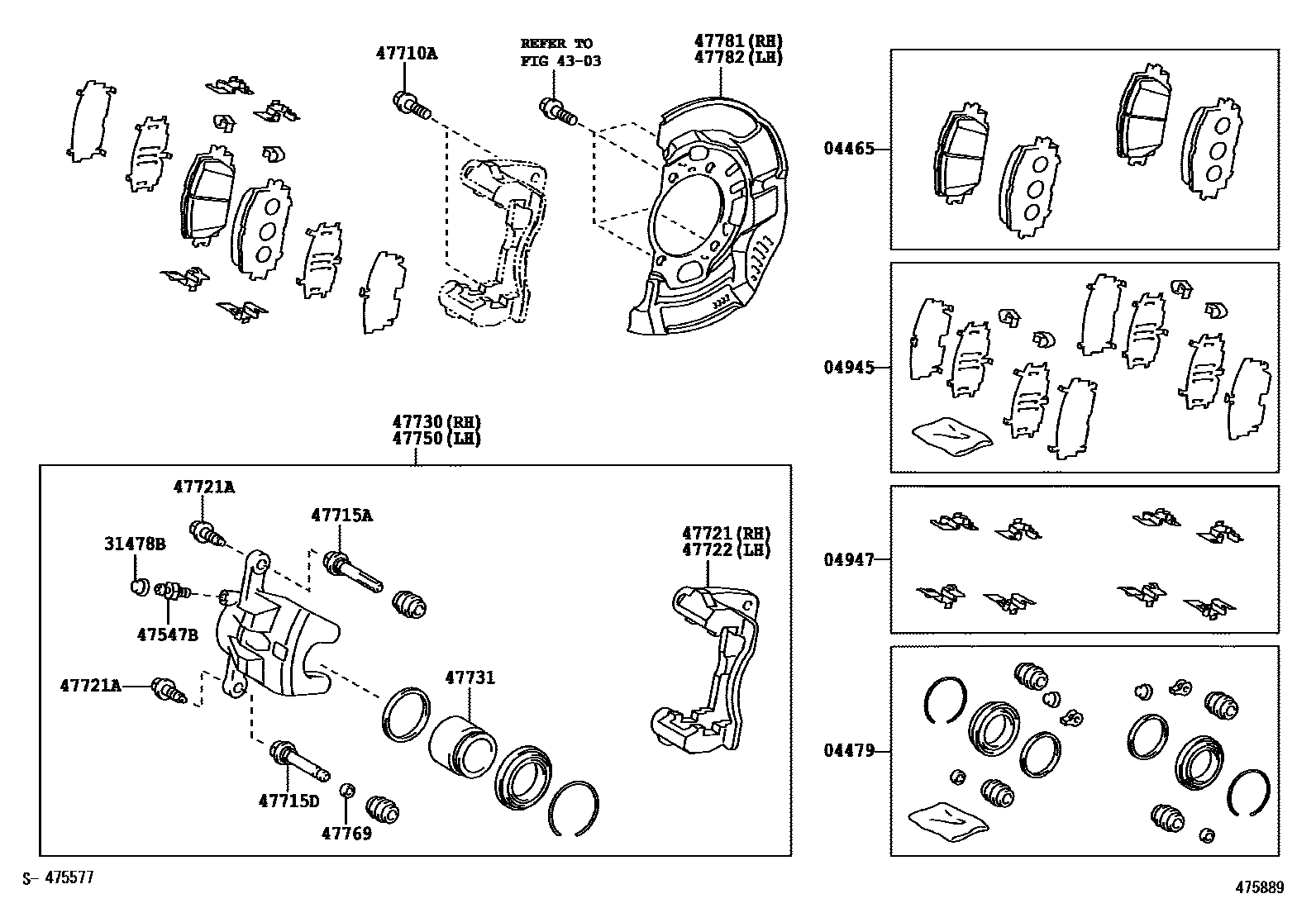

FRONT DISC BRAKE CALIPER & DUST COVER

04465PAD KIT, DISC BRAKE, FRONT

main04465-02220iZRE152200703-201311

MARK ADVICS PV565H

04479CYLINDER KIT, DISC BRAKE, FRONT

main04478-12060iZRE152200703-201311

04945SHIM KIT, ANTI SQUEAL, FRONT

main04945-12100iZRE152200703-200904

sub04945-12110

main04945-12110iZRE152..6F..N200905-201311

sub04945-12111

04947FITTING KIT, DISC BRAKE, FRONT

main04947-42050iZRE152200703-201311

31478BCAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)

main31478-30010iZRE152200703-201004

4303

47547BPLUG, BLEEDER(FOR FRONT DISC BRAKE)

main47547-20010iZRE152200703-201004

47710ABOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)

main90105-12208iZRE152200703-201311

*12-1.25PX29.5-23

47715APIN, FRONT DISC BRAKE CYLINDER SLIDE

main47715-52190iZRE152200703-201004

47715DPIN, FRONT DISC BRAKE CYLINDER SLIDE, NO.2

main47715-12A10iZRE152200703-201004

47721MOUNTING, FRONT DISC BRAKE CYLINDER, RH

main47721-12A10iZRE152200703-201311

47721ABOLT(FOR FRONT DISC BRAKE CYLINDER MOUNTING)

main90105-08164iZRE152200703-201004

*8-1.00PX23-15

47722MOUNTING, FRONT DISC BRAKE CYLINDER, LH

main47722-12A10iZRE152200703-201311

47730CYLINDER ASSY, FRONT DISC BRAKE, RH

main47730-12A10iZRE152200703-201004

47731PISTON, FRONT DISC BRAKE

main47731-12A10iZRE152200703-201004

47750CYLINDER ASSY, DISC BRAKE, LH

main47750-12A10iZRE152200703-201004

47769BUSH, CYLINDER SLIDE, NO.1(FOR FRONT DISC BRAKE)

main47769-50010iZRE152200703-201004

47781COVER, DISC BRAKE DUST, FRONT RH

main47781-12250iZRE152200703-201311

47782COVER, DISC BRAKE DUST, FRONT LH

main47782-12250iZRE152200703-201311

19 parts on this diagram · 1 diagram in section
