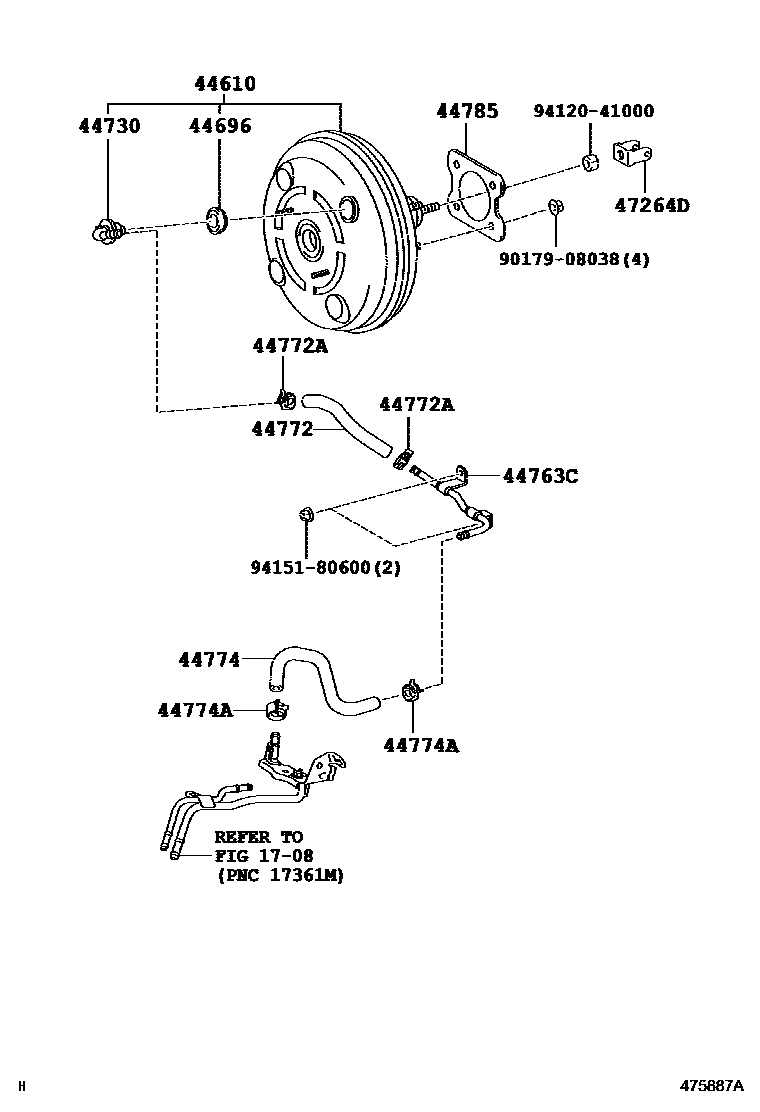

BRAKE BOOSTER & VACUUM TUBE

1708VACUUM PIPING

→ Go to FIG 17-08

44610BOOSTER ASSY, BRAKE

main44610-12A41iZRE153201004-201311

44696GROMMET, CHECK VALVE

main90480-24439iZRE152..6F..N200812-201002

44730VALVE ASSY, VACUUM CHECK(FOR BRAKE)

main44730-12070iZRE152200703-200812

44763CTUBE, HOSE TO HOSE, NO.2

main44763-12440iZRE152200703-200812

44772HOSE, CHECK VALVE TO CONNECTOR TUBE

main44772-12600iZRE152200812-201004

44772ACLIP(FOR CHECK VALVE TO CONNECTOR TUBE)

main96133-41500×2iZRE152200703-200812

44774HOSE, UNION TO CONNECTOR TUBE

main44774-12560iZRE152200703-200812

44774ACLIP(FOR UNION TO CONNECTOR TUBE HOSE)

main96133-41500×2iZRE152200703-200812

44785GASKET, BRAKE BOOSTER

main44785-12040iZRE152200703-200812

47264DCLEVIS, BRAKE MASTER CYLINDER PUSH ROD

main47264-63020iZRE152200703-200812

main47264-68010iZRE15#201012

9017908038

main90179-08038

9412041000

main94120-41000

9415180600

main94151-80600

14 parts on this diagram · 1 diagram in section
