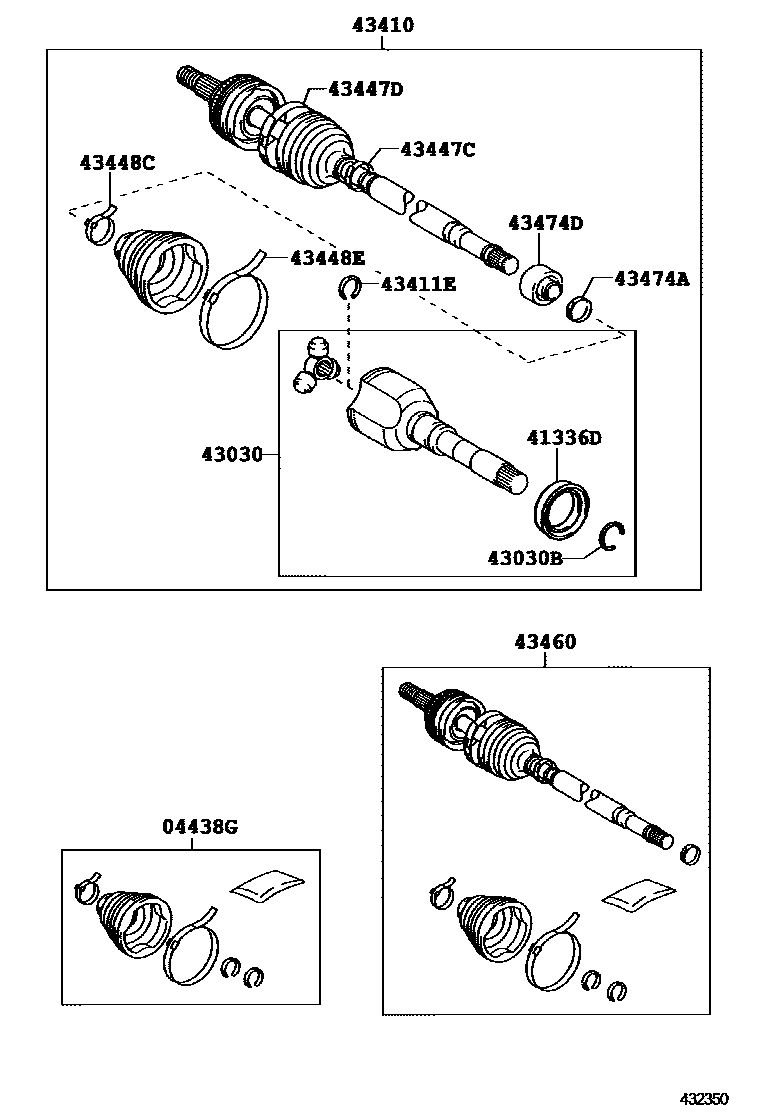

FRONT DRIVE SHAFT

0001 1RH 0002 1LH 0003 1 0004 1RH 0005 1LH

04438GBOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, RH

main04437-02280iZRE152..6F..N200812-201002

main04438-42180iZRE153201004

41336DCOVER, FRONT DRIVE SHAFT DUST, RH

main41336-05140iZRE152..6F..N200812-201002

main41336-12020iZRE153201004

43030JOINT ASSY, FRONT DRIVE INBOARD, RH

main43030-44021iZRE153201004

main43040-05110iZRE152200703-200812

43030BRING, HOLE SNAP (FOR FRONT DRIVE INBOARD JOINT RH)

main90080-52055iZRE152201004

43410SHAFT ASSY, FRONT DRIVE, RH

main43410-02580iZRE152200812-201004

main43410-02581iZRE152201112-201311

main43410-12820iZRE153201004-201311

sub43410-12821

43411ERING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER RH)

main43425-28010iZRE153201004

main90080-52093iZRE152..4FC;ZRE152..6F..D200812-201004

43447CCLAMP (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)

main42345-05140iZRE152..6F..N200812-201002

main42345-42100iZRE153201004

43447DCLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)

main42345-02220iZRE152200703-200812

main42345-42090iZRE153201004

43448CCLAMP (FOR FRONT AXLE INBOARD JOINT BOOT RH)

main42345-02240iZRE152200703-200812

main42345-42010iZRE153201004

TYPE A:REFER ILLUST.

main90949-01559iZRE153201004

TYPE B:REFER ILLUST.

43448ECLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT RH)

main42345-05030iZRE152200703-200812

main42345-12160iZRE153201004

43460SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, RH

main43460-09R30iZRE152200703-200812

main43460-09R31iZRE152201112

main43470-49645iZRE153201004

43474ACLAMP (FOR DRIVE SHAFT DAMPER SETTING)

main42345-02230iZRE152..6F..N200812-201002

43474DDAMPER, FRONT DRIVE SHAFT, RH

main43474-02150iZRE152200703-200812

13 parts on this diagram · 5 diagrams in section
