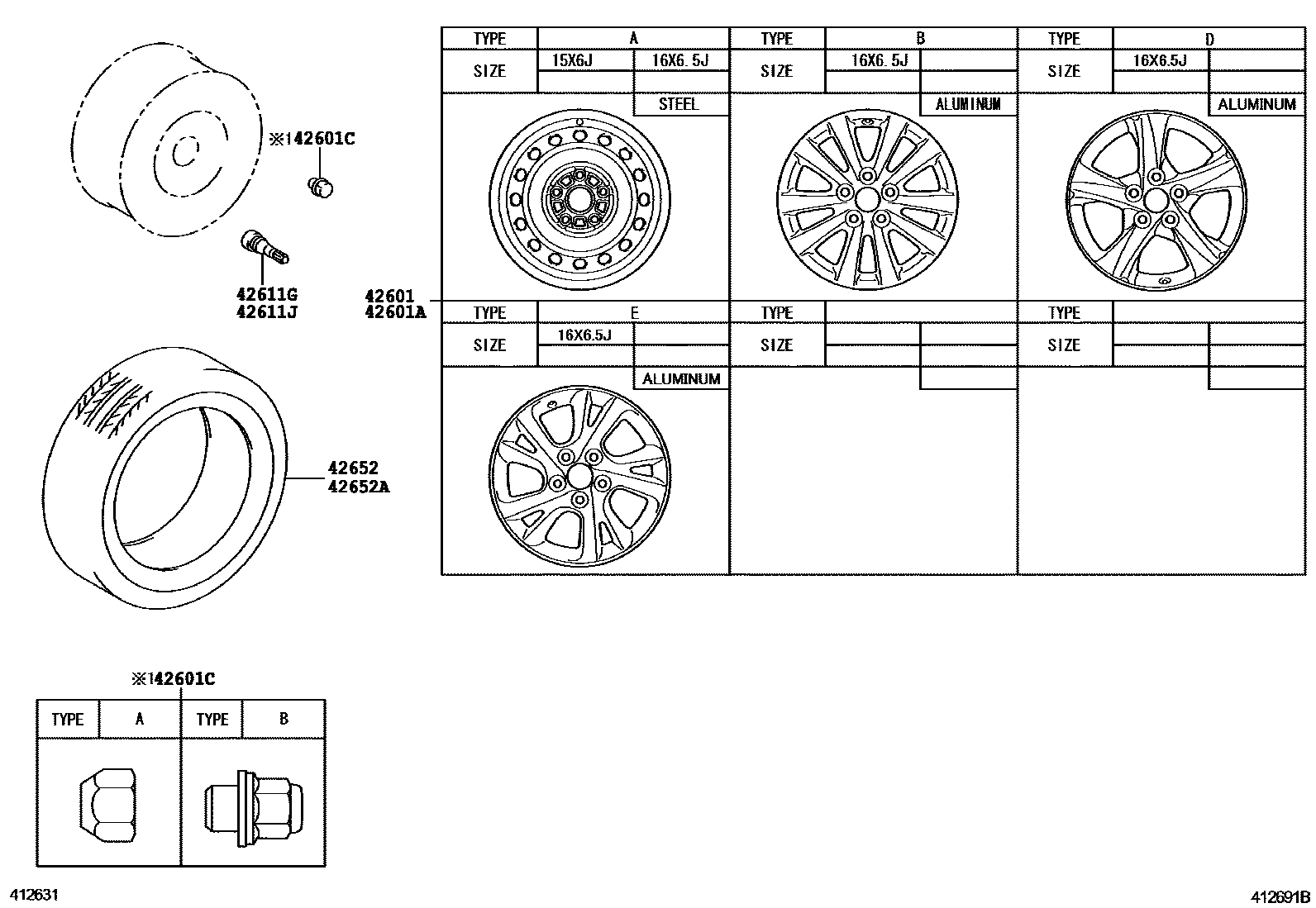

DISC WHEEL & WHEEL CAP

42601WHEEL, DISC

main42611-12A60×4supersedes 42611-12A00i201004

16X6.5J, #,TIRE & DISC WHEEL-205/55R16 6.5J ALUMINUM,TYPE D:REFER ILLUST.; 16X6.5J, #,TYPE D:REFER ILLUST.

main42611-12A10×4supersedes 42611-12A00i200703-200812

16X6.5J, #,TIRE & DISC WHEEL-205/55R16 6.5J STEEL,GENERAL COUNTRIES,TYPE A:REFER ILLUST.

main42611-12A20×4supersedes 42611-12A00i200703-200812

16X6.5J, #,TIRE & DISC WHEEL-205/55R16 6.5J ALUMI,GENERAL COUNTRIES,TYPE B:REFER ILLUST.

main42611-12C20×4i201004

16X6.5J, #,TIRE & DISC WHEEL-205/55R16 6.5J ALUMINUM,TYPE E:REFER ILLUST.

42601AWHEEL, DISC (FOR SPARE)

main42611-12A10supersedes 42611-12A00i201004

16X6.5J, #,TIRE & DISC WHEEL-205/55R16 6.5J ALUMINUM,TYPE A:REFER ILLUST.; 16X6.5J, #,TIRE & DISC WHEEL-205/55R16 6.5J STEEL,TYPE A:REFER ILLUST.; 16X6.5J, #,TYPE A:REFER ILLUST.

42601CNUT, HUB (FOR AXLE)

main90942-01033×20supersedes 90942-01007i201004

TIRE & DISC WHEEL-205/55R16 6.5J ALUMINUM,TYPE B:REFER ILLUST.; TYPE B:REFER ILLUST.

42611GVALVE (FOR TUBELESS TIRE)

main90942-05009×4i201004

42611JVALVE (FOR TUBELESS TIRE SPARE)

main90942-05009i200703-200812

42652TIRE

main42652-12B81×4i201004

205/55R16,*D/L; 205/55R16,*D/L,TIRE & DISC WHEEL-205/55R16 6.5J ALUMINUM; 205/55R16,*D/L,TIRE & DISC WHEEL-205/55R16 6.5J STEEL

main42652-12C01×4i201004

205/55R16,*Y/H; 205/55R16,*Y/H,TIRE & DISC WHEEL-205/55R16 6.5J ALUMINUM; 205/55R16,*Y/H,TIRE & DISC WHEEL-205/55R16 6.5J STEEL

main42652-12F80×4supersedes 42652-12C60i201004

205/55R16,*B/S; 205/55R16,*B/S,TIRE & DISC WHEEL-205/55R16 6.5J ALUMINUM; 205/55R16,*B/S,TIRE & DISC WHEEL-205/55R16 6.5J STEEL

main42652-12D11×4supersedes 42652-12C60i200812-201004

205/55R16,*D/L,TIRE & DISC WHEEL-205/55R16 6.5J ALUMI GENERAL COUNTRIES; 205/55R16,*D/L,TIRE & DISC WHEEL-205/55R16 6.5J STEEL GENERAL COUNTRIES

main42652-12D30×4supersedes 42652-12C60i200703-200812

205/55R16,*Y/H,TIRE & DISC WHEEL-205/55R16 6.5J ALUMI,GENERAL COUNTRIES; 205/55R16,*Y/H,TIRE & DISC WHEEL-205/55R16 6.5J STEEL,GENERAL COUNTRIES

main42652-12D31×4supersedes 42652-12C60i200905-201004

205/55R16,*Y/H,TIRE & DISC WHEEL-205/55R16 6.5J ALUMI GENERAL COUNTRIES; 205/55R16,*Y/H,TIRE & DISC WHEEL-205/55R16 6.5J STEEL GENERAL COUNTRIES

42652ATIRE (FOR SPARE)

main42652-12B81i201004

205/55R16,*D/L; 205/55R16,*D/L,TIRE & DISC WHEEL-205/55R16 6.5J ALUMINUM; 205/55R16,*D/L,TIRE & DISC WHEEL-205/55R16 6.5J STEEL

main42652-12C01i201004

205/55R16,*Y/H; 205/55R16,*Y/H,TIRE & DISC WHEEL-205/55R16 6.5J ALUMINUM; 205/55R16,*Y/H,TIRE & DISC WHEEL-205/55R16 6.5J STEEL

main42652-12F80supersedes 42652-12C60i201004

205/55R16,*B/S; 205/55R16,*B/S,TIRE & DISC WHEEL-205/55R16 6.5J ALUMINUM; 205/55R16,*B/S,TIRE & DISC WHEEL-205/55R16 6.5J STEEL

main42652-12D11supersedes 42652-12C60i200812-201004

205/55R16,*D/L,TIRE & DISC WHEEL-205/55R16 6.5J ALUMI GENERAL COUNTRIES; 205/55R16,*D/L,TIRE & DISC WHEEL-205/55R16 6.5J STEEL GENERAL COUNTRIES

main42652-12D30supersedes 42652-12C60i200812-200904

205/55R16,*Y/H,TIRE & DISC WHEEL-205/55R16 6.5J ALUMI GENERAL COUNTRIES; 205/55R16,*Y/H,TIRE & DISC WHEEL-205/55R16 6.5J STEEL GENERAL COUNTRIES

main42652-12D31supersedes 42652-12C60i200905-201004

205/55R16,*Y/H,TIRE & DISC WHEEL-205/55R16 6.5J ALUMI GENERAL COUNTRIES; 205/55R16,*Y/H,TIRE & DISC WHEEL-205/55R16 6.5J STEEL GENERAL COUNTRIES

7 parts on this diagram · 3 diagrams in section
