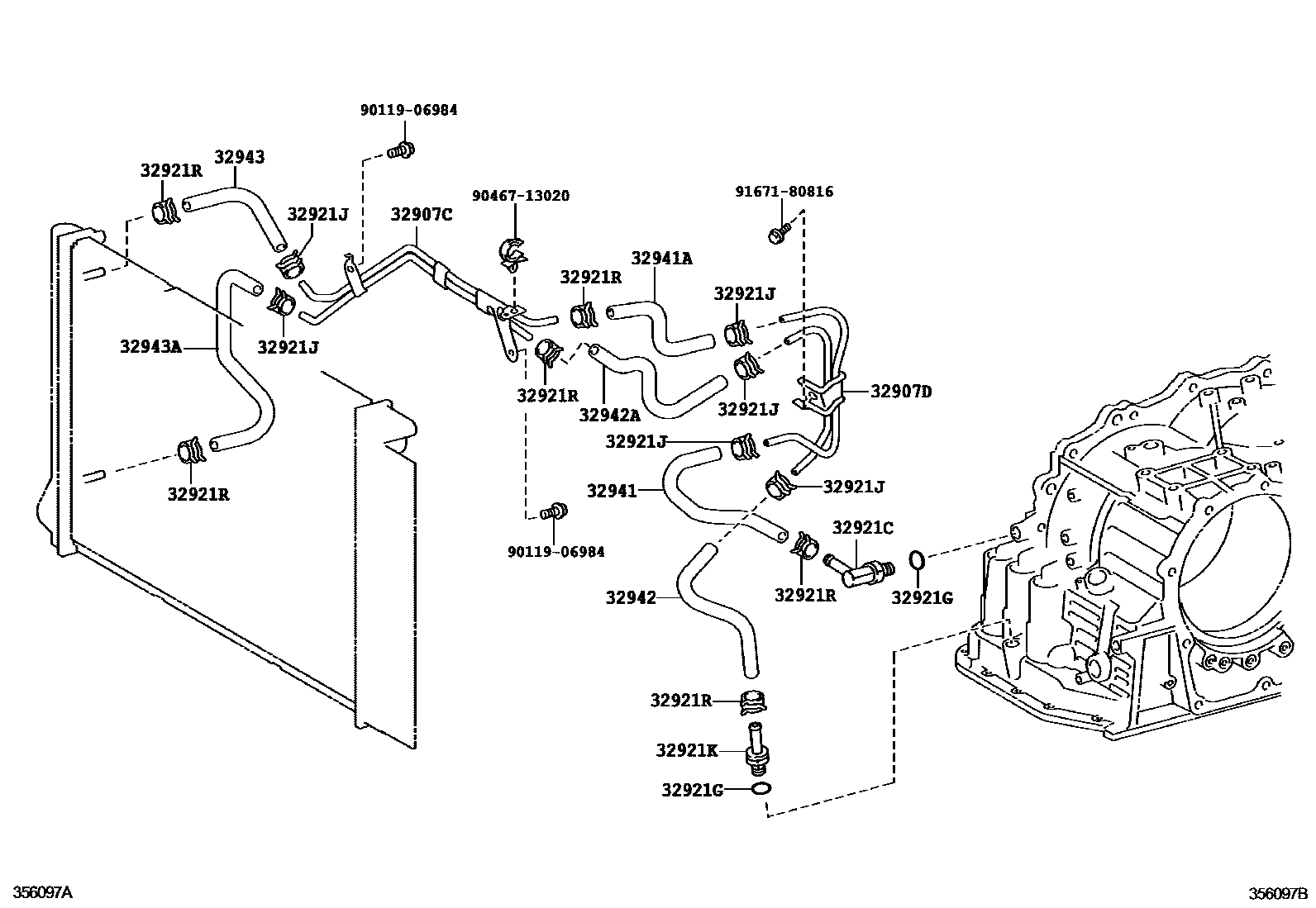

OIL COOLER & TUBE (ATM)

0001 1U341E 0002 1U241E

32907CTUBE SUB-ASSY, OIL COOLER W/O HOSE, NO.1

main32907-12050iZRE152..4FC200703-200812

main32907-12240iZRE152..4FC200812-200901

main32907-12241iZRE152..4FC200901-201004

main32907-20070iZRE153201004

32907DTUBE SUB-ASSY, OIL COOLER W/O HOSE, NO.2

main32907-12060iZRE152..4FC201004

main32907-12130iZRE153201007

main32907-20080iZRE153201004-201007

32921CUNION(FOR OIL COOLER TUBE)

main90404-13005iZRE152..4FC200703-200812

main90407-13009iZRE153201004

32921GRING, O(FOR OIL COOLER TUBE UNION)

main90301-10018×2iZRE15#..4FC201307

main90301-10189×2iZRE15#..4FC201004-201307

32921JCLIP(FOR OIL COOLER HOSE)

main96135-51300×6iZRE152..4FC200703-200812

main96137-41501×6iZRE152..4FC201001-201004

32921KUNION, NO.2(FOR OIL COOLER TUBE)

main90404-13004iZRE153201004

main90404-13007iZRE152..4FC201004

32921RCLIP, NO.2(FOR OIL COOLER HOSE)

main96137-41501×6iZRE152..4FC200703-200812

32941HOSE, OIL COOLER INLET, NO.1

main32941-20330iZRE153201004

main32943-12060iZRE152..4FC200703-200812

main32943-12061iZRE152..4FC200907-201004

32941AHOSE, OIL COOLER INLET, NO.2

main32942-35011iZRE153201004-201007

L=280 OR L=290

main90445-15044iZRE152..4FC200812-201004

main90445-17085iZRE153201103

L=250.0

main90445-17181iZRE153201007-201103

L=230

32942HOSE, OIL COOLER OUTLET, NO.1

main32942-20160iZRE153201004

main32943-12050iZRE152..4FC200703-200812

main32943-12051iZRE152..4FC200907-201004

32942AHOSE, OIL COOLER OUTLET, NO.2

main90445-15016iZRE152..4FC201004

main90445-17181iZRE153201007

L=230

main90445-17182iZRE153201004-201007

L=220

32943HOSE, TRANSMISSION OIL COOLER, NO.1

main32943-12070iZRE152..4FC200703-200812

main32943-12071iZRE152..4FC200907-201004

main32943-20180iZRE153201004

32943AHOSE, TRANSMISSION OIL COOLER, NO.2

main32943-12080iZRE152..4FC200703-200812

main32943-12081iZRE152..4FC200907-201004

9011906984

main90119-06984

9046713020

main90467-13020

9167180816

main91671-80816

16 parts on this diagram · 2 diagrams in section
