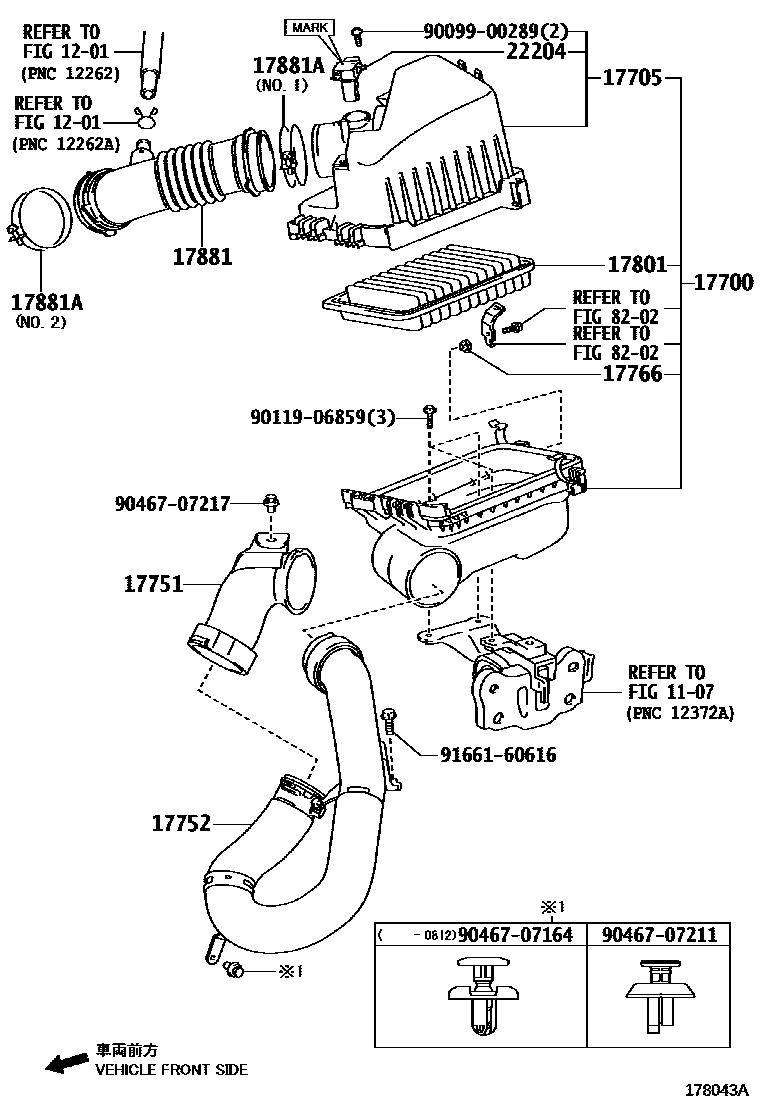

AIR CLEANER

17700CLEANER ASSY, AIR

main17700-22201i2ZRFE..ZRE152200703-200812

main17700-37230i2ZRFE..ZRE152..6F..N200812-201103

sub17700-37231

main17700-37231i2ZRFE,3ZRFE..ZRE15#201104

17705CAP SUB-ASSY, AIR CLEANER

main17705-22221i2ZRFE..ZRE152200703-200812

main17705-37110i2ZRFE..ZRE152..6F..N200812-201103

sub17705-37111

main17705-37111i2ZRFE,3ZRFE..ZRE15#201104

17751INLET, AIR CLEANER, NO.1

main17751-37020i2ZRFE..ZRE152..4FC;2ZRFE..ZRE152..6F..D200703-201004

17752INLET, AIR CLEANER, NO.2

main17752-37030i2ZRFE..ZRE152200703-201111

main17752-37130i2ZRFE,3ZRFE..ZRE15#201111

17766STAY, AIR CLEANER, NO.2

main17706-21010i2ZRFE,3ZRFE..ZRE15#200906-201004

main17706-22010i2ZRFE..ZRE152200703-200906

17801ELEMENT SUB-ASSY, AIR CLEANER FILTER

main17801-21050i2ZRFE..ZRE152200703-201004

17881HOSE, AIR CLEANER, NO.1

main17880-22040i2ZRFE..ZRE152200703-200812

main17880-22110i2ZRFE..ZRE152..4FC;2ZRFE..ZRE152..6F..D200812-201004

main17880-37160i3ZRFE..ZRE153201004

17881ACLAMP(FOR AIR CLEANER HOSE, NO.1)

main96111-10750i2ZRFE..ZRE152..4FC;2ZRFE..ZRE152..6F..D200812-201004

NO.1

main96111-10780i2ZRFE..ZRE152..4FC;2ZRFE..ZRE152..6F..D200703-201004

NO.2

main96111-10830i2ZRFE..ZRE152200703-200812

NO.1

22204METER SUB-ASSY, INTAKE AIR FLOW

main22204-0T040i2ZRFE,3ZRFE..ZRE15#201104

MARK 22204-0T040

sub22204-28010

main22204-0V010i2ZRFE,3ZRFE..ZRE15#201104

MARK 22204-0V010

sub22204-0V020

main22204-0V020i2ZRFE,3ZRFE..ZRE15#201104

MARK 22204-0V020

main22204-28010i2ZRFE,3ZRFE..ZRE15#201104

MARK 22204-28010

main22204-31020i2ZRFE..ZRE152200703-200812

main22204-37010i2ZRFE,3ZRFE..ZRE15#200812-201104

sub22204-28010

9009900289

main90099-00289

9011906859

main90119-06859

9046707164

main90467-07164

9046707211

main90467-07211

9046707217

main90467-07217

9166160616

main91661-60616

15 parts on this diagram · 1 diagram in section
