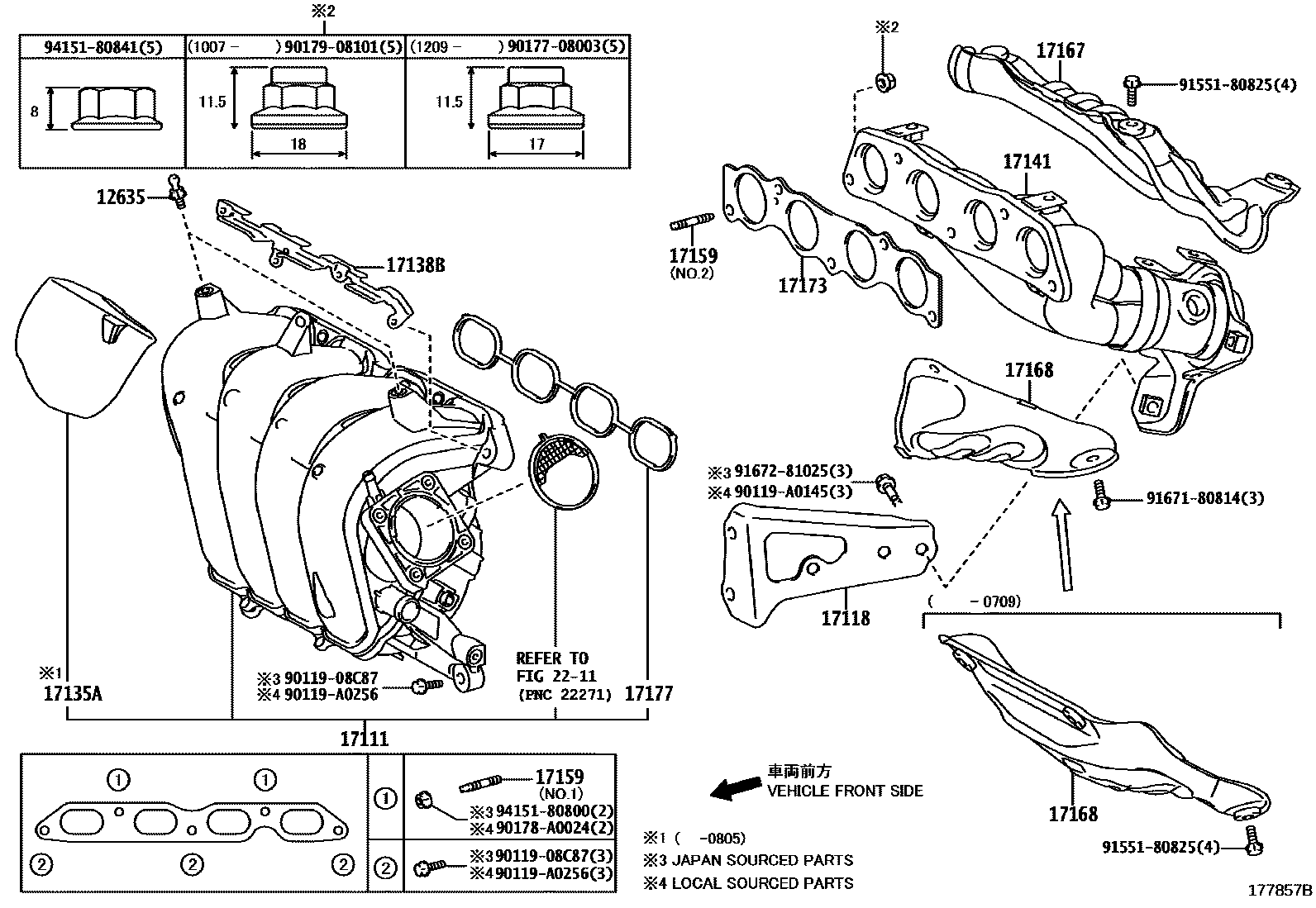

MANIFOLD
12635JOINT, ENGINE COVER
17118STAY, MANIFOLD
(J),*251
*119
17135AINSULATOR, INTAKE MANIFOLD, NO.1
17138BSTAY, INTAKE MANIFOLD
(J)
*119
(J),*251
17159BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
NO.1
(J),NO.1
NO.2
(J),NO.2
(L),NO.1
(L),NO.2
17167INSULATOR, EXHAUST MANIFOLD HEAT, NO.1
17168INSULATOR, EXHAUST MANIFOLD HEAT, NO.2
17173GASKET, EXHAUST MANIFOLD TO HEAD
(L)
(J)
17177GASKET, INTAKE MANIFOLD TO HEAD, NO.1
(L)
(J)
2211
9011908C87
main90119-08C87
90119A0145
main90119-A0145
90119A0256
main90119-A0256
9017708003
main90177-08003
90178A0024
main90178-A0024
9017908101
main90179-08101
9155180825
main91551-80825
9167180814
main91671-80814
9167281025
main91672-81025
9415180800
main94151-80800
9415180841
main94151-80841
23 parts on this diagram · 2 diagrams in section
