V-BELT

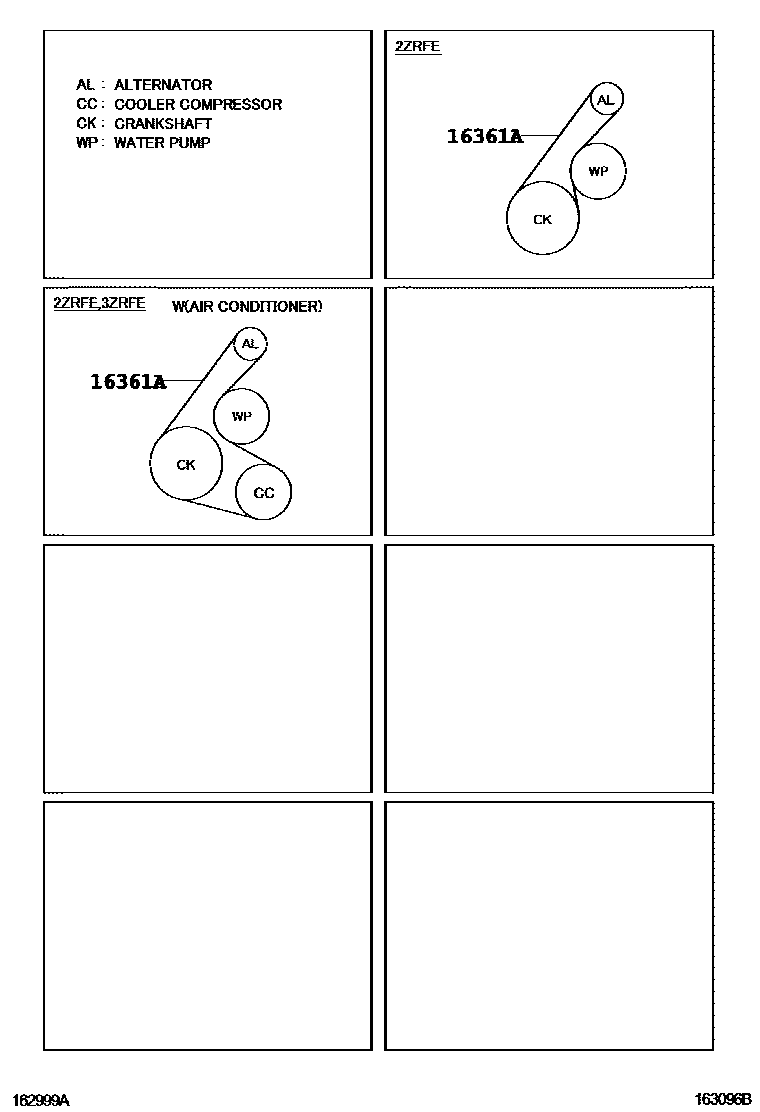

Parts diagram

16361ABELT, V(FOR FAN & ALTERNATOR)

main90916-02664supersedes 99366-K0910i201004

main99366-K1230i200703-200706

MANUAL AIR CONDITIONER(DEALER OPTION); MANUAL AIR CONDITIONER(MAKER OPTION)

1 parts on this diagram · 1 diagram in section
