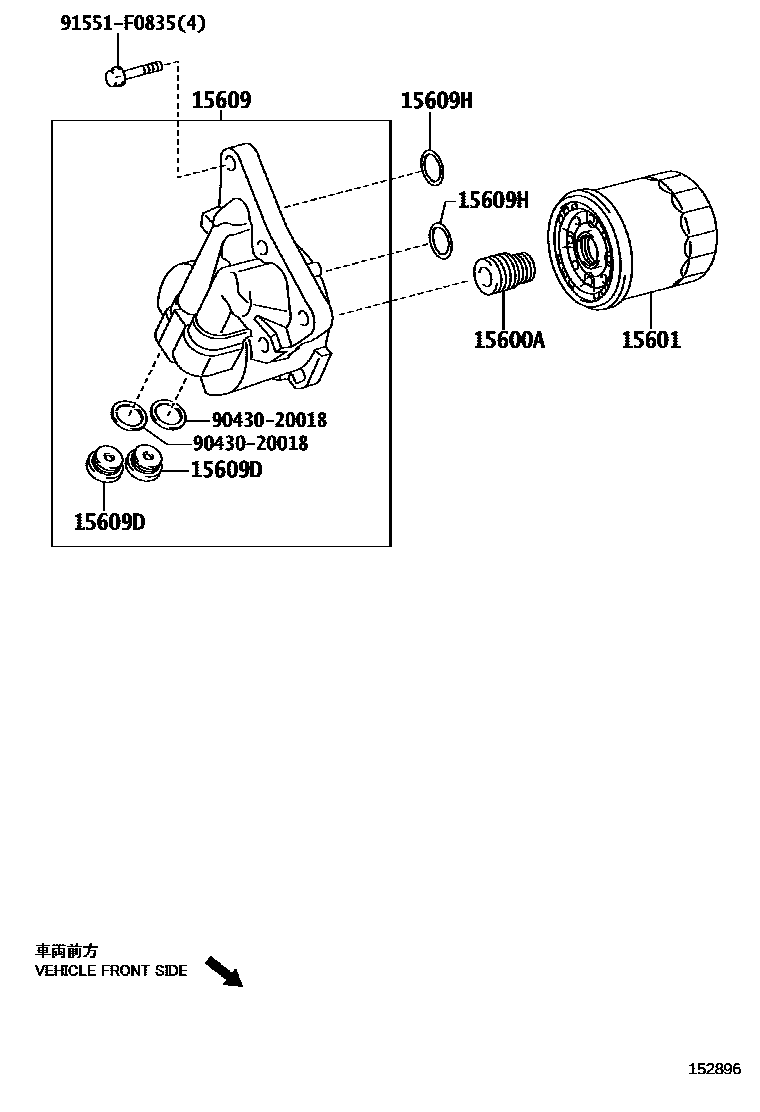

OIL FILTER

0001 1 0002 1

15600AUNION(FOR OIL FILTER)

main90904-04006i2ZRFE..ZRE152200703-200812

15601FILTER SUB-ASSY, OIL

main90915-10003i2ZRFE..ZRE152200703-200812

15609BRACKET SUB-ASSY, OIL FILTER

main15609-37010i2ZRFE..ZRE152200703-200812

main15609-37040i2ZRFE..ZRE152..6F..N200812-201002

main15609-37041i2ZRFE,3ZRFE..ZRE15#201310-201311

15609DPLUG, W/HEAD STRAIGHT SCREW(FOR OIL FILTER BRACKET)

main90341-20002×2i2ZRFE..ZRE152200703-200812

15609HRING, O(FOR OIL FILTER BRACKET)

main90301-A0034×2i2ZRFE..ZRE152201110

(L)

main96723-24020×2i2ZRFE..ZRE152200703-200812

9043020018

main90430-20018

91551F0835

main91551-F0835

7 parts on this diagram · 2 diagrams in section
