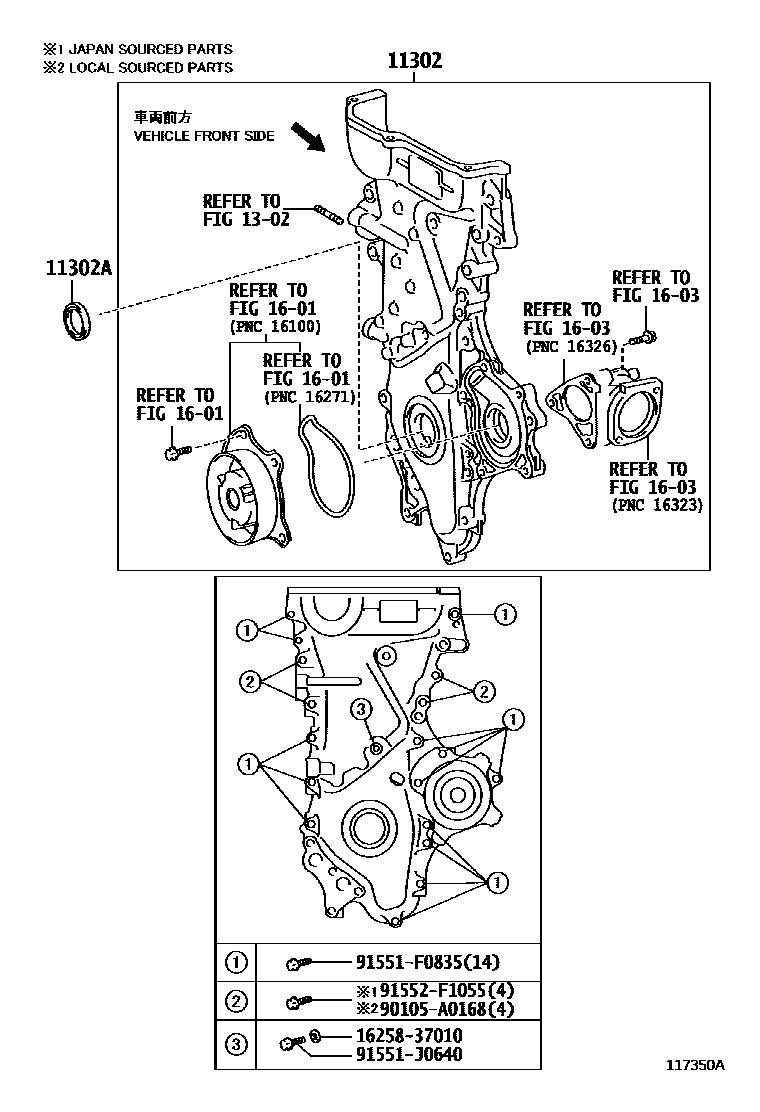

TIMING GEAR COVER & REAR END PLATE

11302COVER SUB-ASSY, TIMING CHAIN OR BELT

main11310-0T041i2ZRFE..ZRE152201110-201308

(L),*251

main11310-0T042i2ZRFE..ZRE152201308

(L),*251

main11310-37010i2ZRFE..ZRE152..4FC;2ZRFE..ZRE152..6F..D200812-201004

main11310-37011i2ZRFE..ZRE152201201

(J),*251,*119

main11310-37031i3ZRFE..ZRE153201004-201201

main11310-37032i3ZRFE..ZRE153201201

11302ASEAL, OIL(FOR TIMING CHAIN OR BELT COVER)

main90311-38089i2ZRFE..ZRE152200703-200812

main90311-38096i2ZRFE,3ZRFE..ZRE15#201110

(J)

main90311-A0018i2ZRFE..ZRE152201301

(L)

1302CAMSHAFT & VALVE

→ Go to FIG 13-02

1601WATER PUMP

→ Go to FIG 16-01

1603RADIATOR & WATER OUTLET

→ Go to FIG 16-03

1625837010GASKET(FOR HEATER RETURN)

main16258-37010

90105A0168

main90105-A0168

91551F0835

main91551-F0835

91551J0640

main91551-J0640

91552F1055

main91552-F1055

10 parts on this diagram · 1 diagram in section
