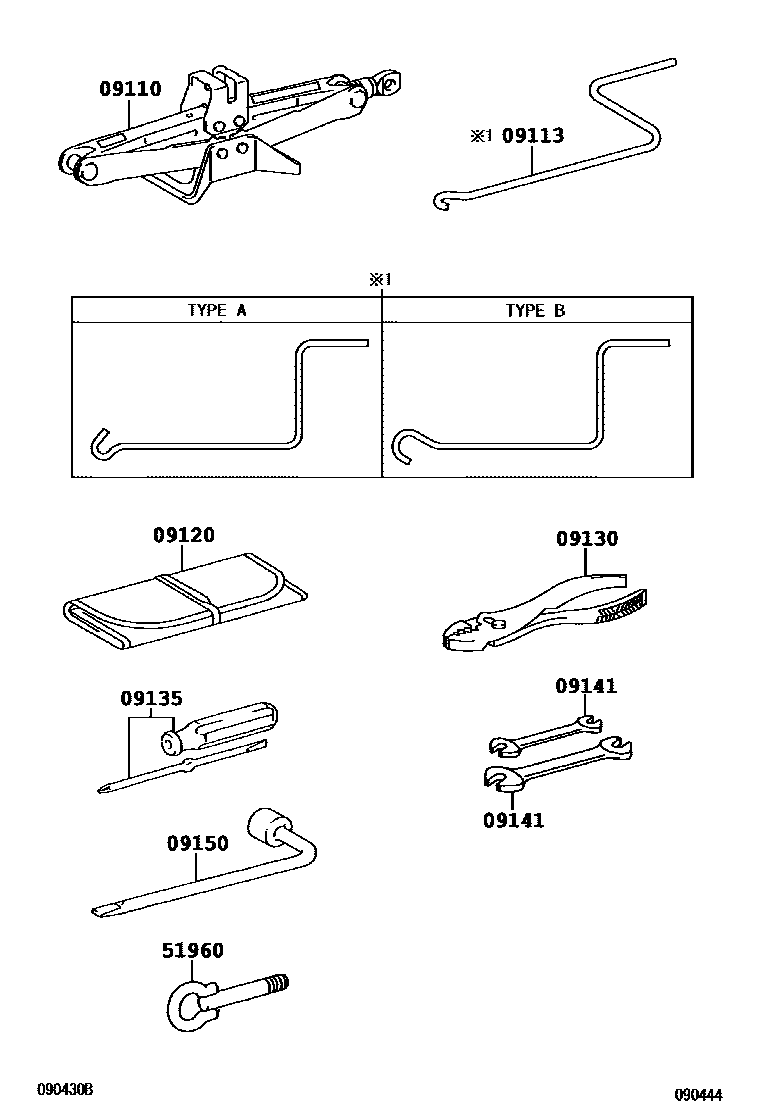

STANDARD TOOL

09110JACK ASSY

main09110-12210iZRE15#201009

main09111-12170iZRE152200703-200812

sub09111-12220

main09111-12220iZRE152..4FC;ZRE152..6F..D200812-201008

sub09110-12210

09113HANDLE, JACK

main09113-20040iZRE152..4FC;ZRE152..6F..D200703-201004

TYPE A:REFER ILLUST.

sub09113-20050

main09113-20050iZRE15#201201

TYPE B:REFER ILLUST.

main09113-52010iZRE152..4FC;ZRE152..6F..D200703-201112

TYPE B:REFER ILLUST.

09120BAG, TOOL

main09120-10040iZRE152200703-201004

09130PLIERS

main99913-11500iZRE15#200703-201004

09135DRIVER, SCREW

main99915-10700iZRE152..6F..N200703-201004

09141SPANNER

main99914-10810iZRE15#200703-201004

8 X 10

main99914-11214iZRE152..4FC;ZRE152..6F..D200703-201004

12 X 14

09150WRENCH, HUB NUT BOX

main09150-35070iZRE15#200703-201303

main09150-40010iZRE15#201304-201311

51960HOOK ASSY, FRONT

main51960-28020iZRE152200703-201004

8 parts on this diagram · 1 diagram in section
