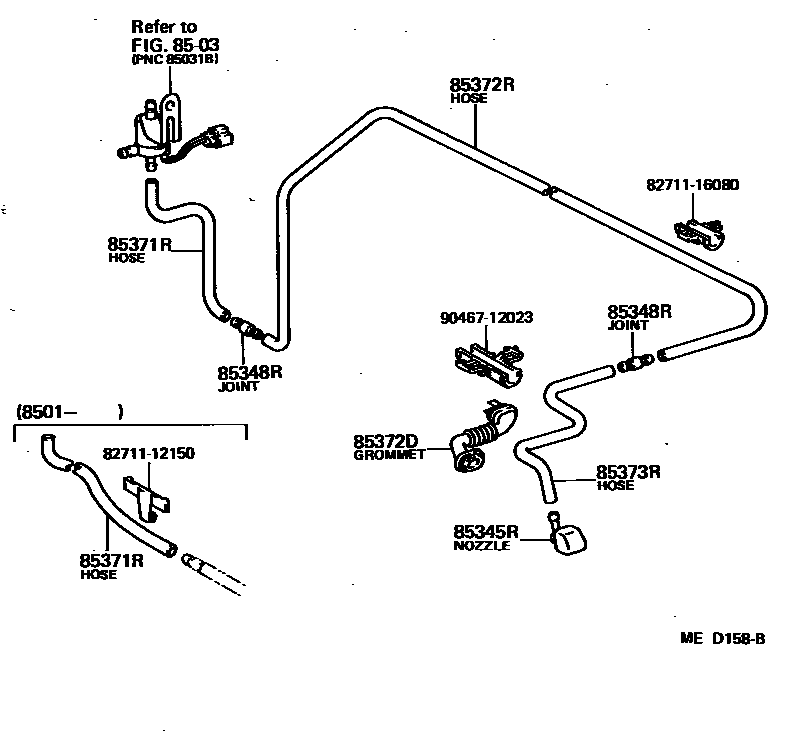

REAR WASHER

8503WINDSHIELD WASHER

→ Go to FIG 85-03

85345RNOZZLE, REAR WASHER

main85035-12160iAE86..3D198305-198506

main85035-12280iAE86..3D198506-198707

85348RJOINT, REAR WASHER HOSE, NO.1

main85355-87201×2iAE86..3D198305-198408

main85355-89122×2iAE86..3D198408-198707

85371RHOSE, REAR WASHER (FROM MOTOR TO JOINT)

main85370-12220iAE86..3D198305-198501

L=600

main90446-07001iAE86..3D198501-198707

L=1800(*H,L=810)

85372DGROMMET, REAR WASHER HOSE

main85372-12010iAE86..3D198305-198707

85372RHOSE, REAR WASHER (FROM JOINT TO JOINT OR NOZZLE)

main90099-33420iAE86..3D198305-198501

L=3300(*H,L=2400)

main90099-33497iAE86..3D198501-198707

L=2320

85373RHOSE, REAR WASHER (FROM JOINT TO NOZZLE)

main90099-33082iAE86..3D198408-198707

L=1450(*H,L=310)

main90099-33299iAE86..3D198305-198408

L=1450(*H,L=310)

8271112150WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-12150

8271116080WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-16080

9046712023

main90467-12023

10 parts on this diagram · 1 diagram in section
