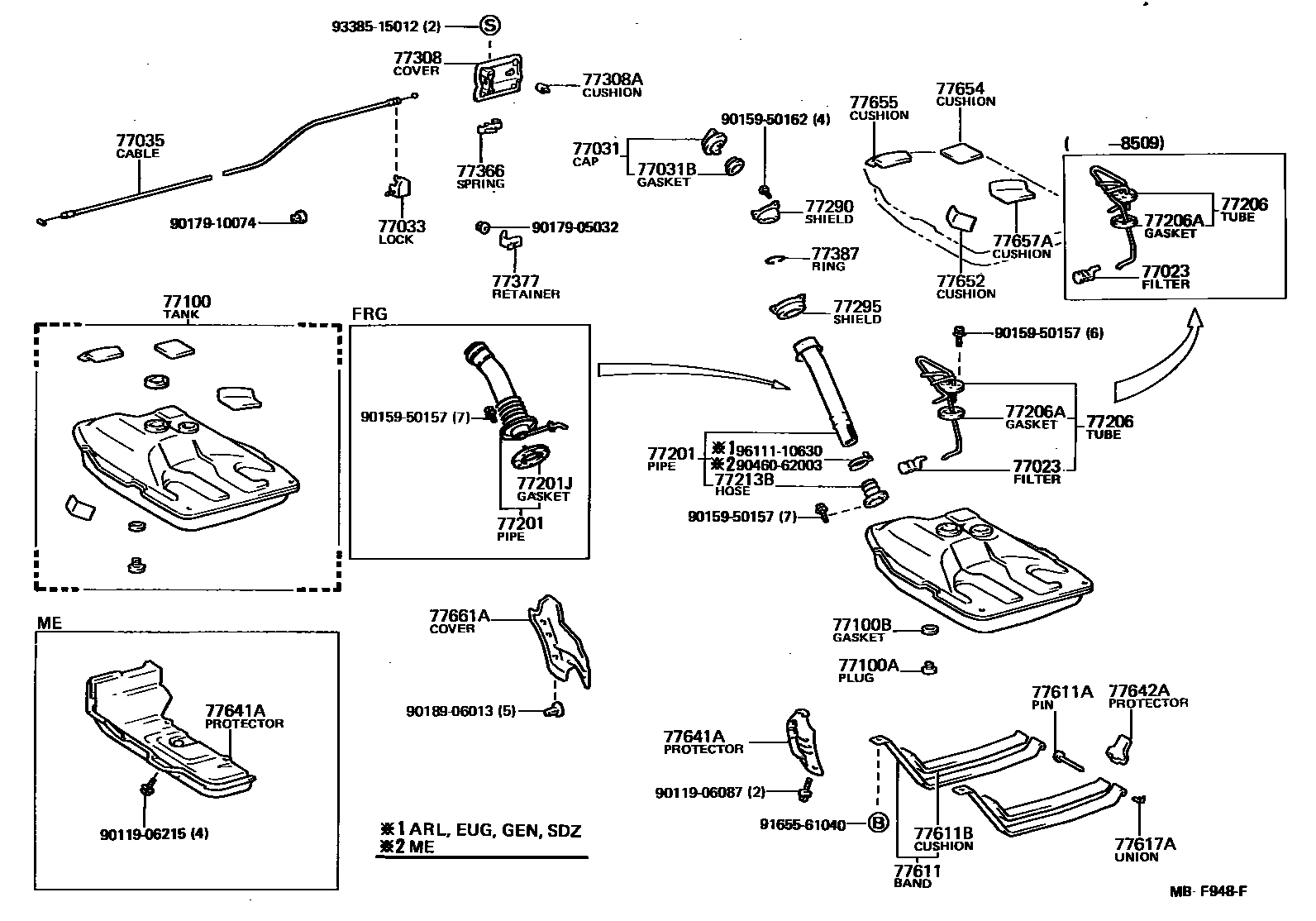

FUEL TANK & TUBE

0001 1 0002 1 0003 1 0004 1

77023FILTER SUB-ASSY, FUEL SUCTION TUBE

main77023-12050iAE86..SR198305-198704

77031CAP ASSY, FUEL TANK

main77310-12100iAE86..SR;AE86..GT..(GEN,ME);AE86..GT..(EUG,SDZ)198305-198707

main77310-16010iAE86..FRG198505-198704

77031BGASKET (FOR FUEL TANK CAP)

main77316-12050iAE86..SR;AE86..GT..(GEN,ME);AE86..GT..(EUG,SDZ)198305-198707

main77316-16010iAE86..SDZ;AE86..2D..EUG198504-198505

FRG SPEC

77033LOCK SUB-ASSY, FUEL TANK CAP

main77037-14010iAE86..ARL,GEN,ME198305-198707

77035CABLE SUB-ASSY, FUEL LID LOCK CONTROL

main77035-12090iAE86..RHD..(ARL,GEN)198305-198704

main77035-12110iAE86..LHD..(GEN,ME)198305-198707

77100TANK ASSY, FUEL

main77001-19295iAE86..GT..GEN198308-198408

main77001-19305iAE86..SR..(ARL,GEN)198305-198408

main77001-19335iAE86..GT..(GEN,ME);AE86..GT..(EUG,SDZ)198408-198707

main77001-19355iAE86..SR..(EUR,GEN)198408-198510

main77001-19395iAE86..FRG198505-198704

77100APLUG(FOR FUEL TANK)

main90341-20004iAE86198305-198707

77100BGASKET(FOR FUEL TANK)

main90430-20007iAE86198305-198707

77201PIPE SUB-ASSY, FUEL TANK INLET

main77201-12290iAE86..ME198308-198707

main77201-12310iAE86..FRG198505-198704

main77201-16060iAE86..SR;AE86..GT..GEN;AE86..GT..(EUG,SDZ)198305-198704

77201JGASKET(FOR FUEL TANK INLET PIPE)

main77169-14010iAE86..FRG198505-198704

77206TUBE SUB-ASSY, FUEL TANK SUCTION

main77017-12210iAE86..SR198305-198408

main77017-12240iAE86..SR..(EUR,GEN)198408-198509

main77017-12260iAE86..SR198509-198610

main77017-12380iAE86..SR198610-198704

main77017-16040iAE86..ARL198408-198505

77206AGASKET (FOR FUEL TANK SUCTION TUBE)

main77178-10010iAE86..SR198305-198704

77213BHOSE, FUEL TANK TO FILLER PIPE

main77213-14090iAE86..SR;AE86..GT..(GEN,ME);AE86..GT..(EUG,SDZ)198305-198704

77290SHIELD ASSY, FUEL TANK FILLER PIPE

main77290-12010iAE86198305-198505

main77290-12030iAE86..FRG198505-198704

77295SHIELD, FUEL FILLER PIPE

main77293-12020iAE86198305-198707

77308COVER SUB-ASSY, FUEL INLET BOX

main77350-12050iAE86..GT..EUR;AE86..SR..(EUR,GEN)198305-198608

W/O OPENER

main77350-12100iAE86..ARL,GEN,ME198305-198707

W/OPENER

77308ACUSHION(FOR FUEL INLET BOX COVER)

main90541-08009×2iAE86198305-198707

77366SPRING, FUEL FILLER OPENING LID HINGE

main77360-24010iAE86198305-198707

77377RETAINER, FUEL FILLER OPENING LID LOCK

main77377-24010iAE86..ARL,GEN,ME198305-198707

77387RING, FUEL INLET BOX

main77391-16010iAE86198305-198707

77611BAND, FUEL TANK

main77601-12030iAE86..GEN198305-198704

RH

main77601-12070iAE86..ARL,EUR198305-198704

RH

main77601-16050iAE86..ME198308-198707

RH

main77602-12030iAE86..ARL,EUR,ME198305-198312

LH

main77602-12040iAE86..GEN198305-198704

LH

main77602-16040iAE86..ARL,EUR198312-198704

LH

77611APIN (FOR FUEL TANK BAND)

main90240-08020×2iAE86198305-198707

77611BCUSHION, FUEL TANK, NO.4

main77654-12021×2iAE86198305-198707

77617AUNION, AUXILIARY FUEL BAND

main77617-12010×2iAE86198305-198707

77641APROTECTOR, FUEL TANK, NO.1

main77641-12130iAE86..ARL,EUR198305-198704

main77641-16030iAE86..ME198308-198707

77642APROTECTOR, FUEL TANK, NO.2

main77642-12010×2iAE86198305-198707

77652CUSHION, FUEL TANK, NO.1

main77651-16050iAE86198305-198406

main77655-12021iAE86198406-198707

77654CUSHION, FUEL TANK, NO.2

main77652-12041iAE86198305-198707

77655CUSHION, FUEL TANK, NO.3

main77653-12031iAE86198305-198707

77657ACUSHION, FUEL TANK, NO.5

main77655-12021iAE86198305-198707

77661ACOVER, FUEL TANK FILLER HOSE

main77661-12030iAE86..ME198505-198707

main77661-12040iAE86..EUR,GEN198505-198704

9011906087

main90119-06087

9011906215

main90119-06215

9015950157

main90159-50157

9015950162

main90159-50162

9017905032

main90179-05032

9017910074

main90179-10074

9018906013

main90189-06013

9046062003

main90460-62003

9165561040

main91655-61040

9338515012

main93385-15012

9611110630

main96111-10630

42 parts on this diagram · 4 diagrams in section
