E
EPC Data

SEAT BELT & CHILD RESTRAINT SEAT

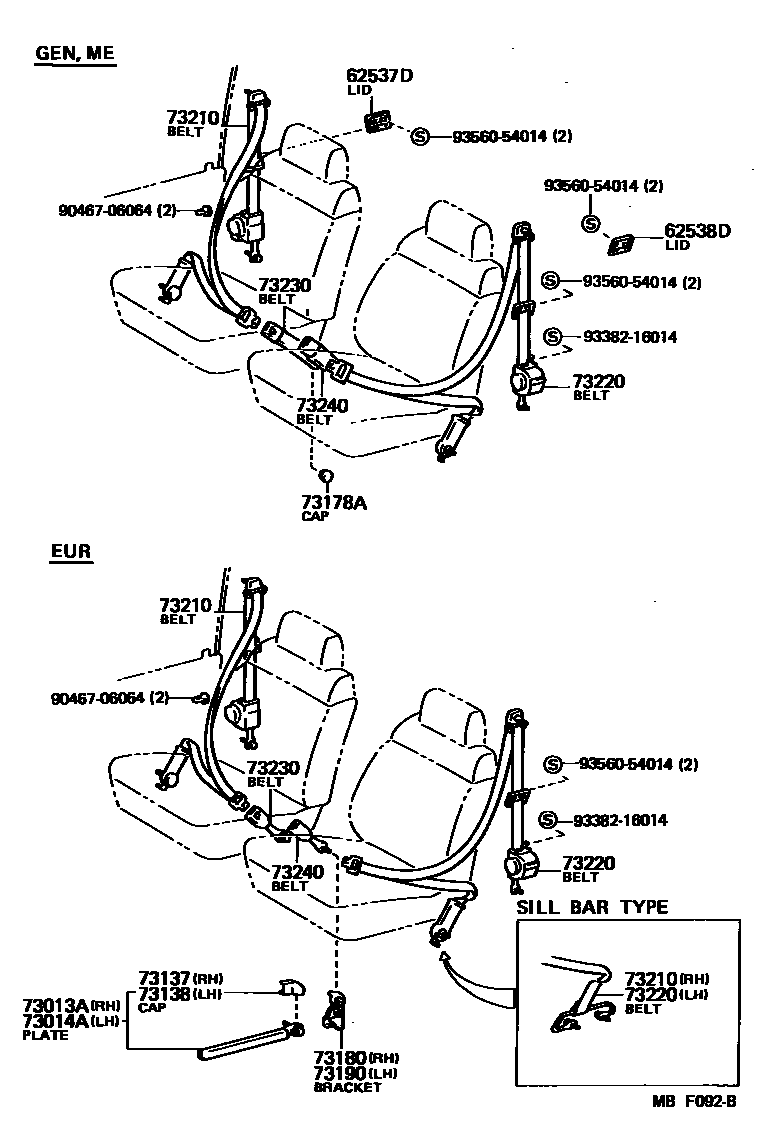

Parts diagram
62537DLID, QUARTER TRIM BELT HOLE, RH
main62537-12030-01i198505-198608
BLACK,BLACK,TRIM2#
main62537-12030-02i198305-198505
DEEP MAROON,RED/MAROON,TRIM3#
main62537-12030-04i198305-198608
BLUE,BLUE,TRIM8#
62538DLID, QUARTER TRIM BELT HOLE, LH
main62538-12020-01i198505-198608
BLACK,BLACK,TRIM2#
main62538-12020-02i198305-198505
DEEP MAROON,RED/MAROON,TRIM3#
main62538-12020-04i198305-198608
BLUE,BLUE,TRIM8#
73013APLATE SUB-ASSY, FRONT SEAT BELT INNER ANCHOR, RH
main73013-12010-01i198505-198704
BLACK,BLACK,TRIM2#
main73013-12010-02i198308-198505
DEEP MAROON,RED/MAROON,TRIM3#
main73013-12010-04i198308-198704
BLUE,BLUE,TRIM8#
73014APLATE SUB-ASSY, FRONT SEAT BELT INNER ANCHOR, LH
main73014-12010-01i198505-198704
BLACK,BLACK,TRIM2#
main73014-12010-02i198308-198505
DEEP MAROON,RED/MAROON,TRIM3#
main73014-12010-04i198308-198704
BLUE,BLUE,TRIM8#
73137CAP, FRONT SEAT BELT INNER ANCHOR, RH
main73137-12010-01i198505-198704
BLACK,BLACK,TRIM2#
main73137-12010-02i198308-198505
DEEP MAROON,RED/MAROON,TRIM3#
main73137-12010-04i198308-198704
BLUE,BLUE,TRIM8#
73138CAP, FRONT SEAT BELT INNER ANCHOR, LH
main73138-12010-01i198505-198704
BLACK,BLACK,TRIM2#
main73138-12010-02i198308-198505
DEEP MAROON,RED/MAROON,TRIM3#
main73138-12010-04i198308-198704
BLUE,BLUE,TRIM8#
73178ACAP, SEAT BELT ANCHOR COVER
main73178-16010-01×2i198505-198707
BLACK,MAROON,TRIM2#
main73178-16010-02×2i198305-198505
DEEP MAROON,RED/MAROON,TRIM3#
main73178-16010-04×2i198305-198505
BLUE,BLUE,TRIM8#
main73178-16010-14×2i198505-198707
BLUE,BLUE,TRIM8#
73180BRACKET ASSY, SEAT BELT INNER ANCHOR, RH
main73011-12010i198308-198704
73190BRACKET ASSY, SEAT BELT INNER ANCHOR, LH
main73012-12010i198308-198704
73210BELT ASSY, FRONT SEAT OUTER, RH
main73210-12470-02i198308-198402
W/*SSSB,DEEP MAROON,RED/MAROON,TRIM3#
main73210-12470-04i198308-198402
W/*SSSB,BLUE,BLUE,TRIM8#
main73210-12471-01i198505-198704
W/*SSSB,BLACK,BLACK,TRIM2#
main73210-12471-02i198402-198505
W/*SSSB,DEEP MAROON,RED/MAROON,TRIM3#
main73210-12471-04i198402-198505
W/*SSSB,BLUE,BLUE,TRIM8#
main73210-12480-02i198305-198505
DEEP MAROON,RED/MAROON,TRIM3#
main73210-12480-04i198305-198505
BLUE,BLUE,TRIM8#
main73210-12490-02i198308-198402
DEEP MAROON,RED/MAROON,TRIM3#
main73210-12490-04i198308-198402
BLUE,BLUE,TRIM8#
main73210-12491-01i198505-198704
BLACK,BLACK,TRIM2#
main73210-12491-02i198402-198505
DEEP MAROON,RED/MAROON,TRIM3#
main73210-12491-04i198402-198704
BLUE,BLUE,TRIM8#
main73210-12500-02i198305-198505
DEEP MAROON,RED/MAROON,TRIM3#
main73210-12500-04i198305-198505
BLUE,BLUE,TRIM8#
main73210-12501-01i198505-198510
BLACK,BLACK,TRIM2#
main73210-12501-04i198505-198510
BLUE,BLUE,TRIM8#
main73210-12502-01i198510-198707
BLACK,BLACK,TRIM2#
main73210-12502-04i198510-198707
BLUE,BLUE,TRIM8#
73220BELT ASSY, FRONT SEAT OUTER, LH
main73220-12380-02i198308-198402
W/*SSSB,DEEP MAROON,RED/MAROON,TRIM3#
main73220-12380-04i198308-198402
W/*SSSB,BLUE,BLUE,TRIM8#
main73220-12381-01i198505-198704
W/*SSSB,BLACK,BLACK,TRIM2#
main73220-12381-02i198402-198505
W/*SSSB,DEEP MAROON,RED/MAROON,TRIM3#
main73220-12381-04i198505-198704
W/*SSSB,BLUE,BLUE,TRIM8#
main73220-12390-02i198305-198505
DEEP MAROON,RED/MAROON,TRIM3#
main73220-12390-04i198305-198505
BLUE,BLUE,TRIM8#
main73220-12400-02i198308-198402
DEEP MAROON,RED/MAROON,TRIM3#
main73220-12400-04i198308-198402
BLUE,BLUE,TRIM8#
main73220-12401-01i198505-198704
BLACK,BLACK,TRIM2#
main73220-12401-02i198402-198505
DEEP MAROON,RED/MAROON,TRIM3#
main73220-12401-04i198402-198704
BLUE,BLUE,TRIM8#
main73220-12410-02i198305-198505
DEEP MAROON,RED/MAROON,TRIM3#
main73220-12410-04i198305-198505
BLUE,BLUE,TRIM8#
main73220-12411-01i198505-198510
BLACK,BLACK,TRIM2#
main73220-12411-04i198505-198510
BLUE,BLUE,TRIM8#
main73220-12412-01i198510-198707
BLACK,BLACK,TRIM2#
main73220-12412-04i198510-198707
BLUE,BLUE,TRIM8#
73230BELT ASSY, FRONT SEAT INNER, RH
main73230-12180-01i198505-198707
BLACK,BLACK,TRIM2#
main73230-12180-02i198305-198505
DEEP MAROON,RED/MAROON,TRIM3#
main73230-12180-04i198305-198707
BLUE,BLUE,TRIM8#
main73230-12190-02i198308-198402
DEEP MAROON,RED/MAROON,TRIM3#
main73230-12190-04i198308-198402
BLUE,BLUE,TRIM8#
main73230-12191-01i198505-198704
BLACK,BLACK,TRIM2#
main73230-12191-02i198402-198505
DEEP MAROON,RED/MAROON,TRIM3#
main73230-12191-04i198402-198704
BLUE,BLUE,TRIM8#
main73230-12200-02i198305-198505
DEEP MAROON,RED/MAROON,TRIM3#
main73230-12200-04i198305-198505
BLUE,BLUE,TRIM8#
73240BELT ASSY, FRONT SEAT INNER, LH
main73230-12180-01i198505-198704
BLACK,BLACK,TRIM2#
main73230-12180-02i198305-198505
DEEP MAROON,RED/MAROON,TRIM3#
main73230-12180-04i198305-198704
BLUE,BLUE,TRIM8#
main73230-12190-02i198308-198402
DEEP MAROON,RED/MAROON,TRIM3#
main73230-12190-04i198308-198402
BLUE,BLUE,TRIM8#
main73230-12191-01i198505-198704
BLACK,BLACK,TRIM2#
main73230-12191-02i198402-198505
DEEP MAROON,RED/MAROON,TRIM3#
main73230-12191-04i198402-198704
BLUE,BLUE,TRIM8#
main73230-12200-02i198305-198505
DEEP MAROON,RED/MAROON,TRIM3#
main73230-12200-04i198305-198505
BLUE,BLUE,TRIM8#
main73240-12100-01i198505-198707
BLACK,BLACK,TRIM2#
main73240-12100-02i198308-198505
DEEP MAROON,RED/MAROON,TRIM3#
main73240-12100-04i198308-198707
BLUE,BLUE,TRIM8#
9046706064
main90467-06064
9338216014
main93382-16014
9356054014
main93560-54014

16 parts on this diagram · 2 diagrams in section
