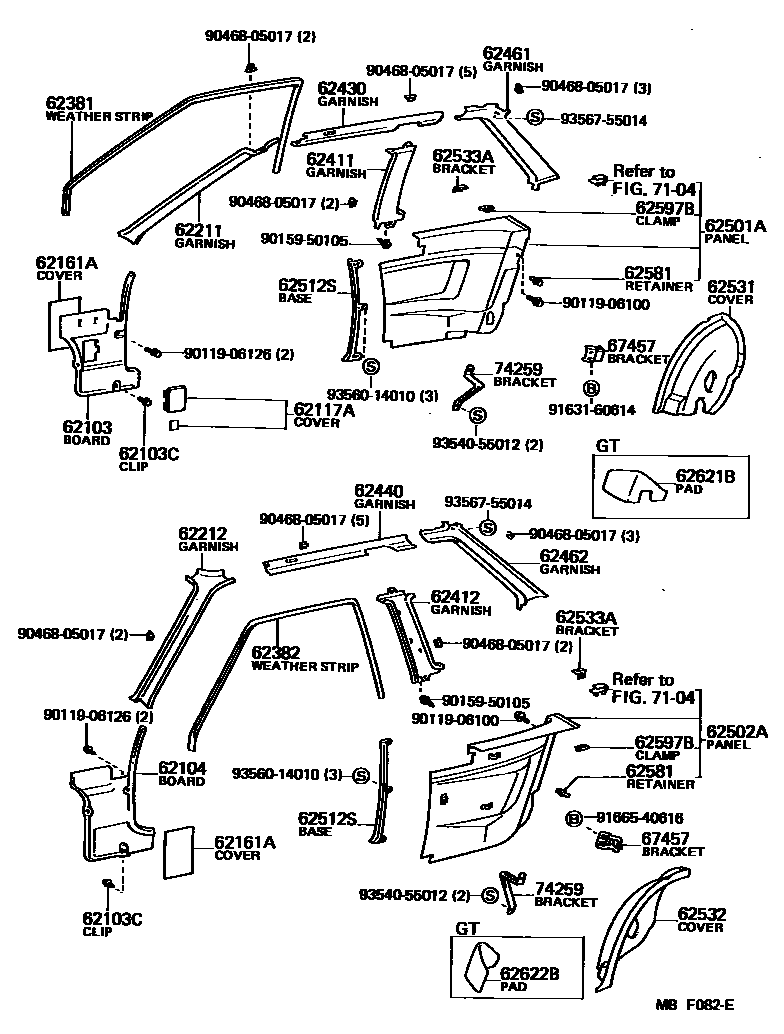

INSIDE TRIM BOARD & DOOR OPENING TRIM MOULDING

0001 1 0002 1

62103BOARD SUB-ASSY, COWL SIDE TRIM, RH

main62101-12100-01iAE86..RHD198505-198704

BLACK,BLACK,TRIM2#

main62101-12100-02iAE86..RHD198305-198505

DEEP MAROON,RED/MAROON,TRIM3#

main62101-12100-04iAE86..RHD198305-198704

BLUE,BLUE,TRIM8#

main62101-12110-01iAE86..LHD198505-198707

BLACK,BLACK,TRIM2#

main62101-12110-02iAE86..LHD198305-198505

DEEP MAROON,RED/MAROON,TRIM3#

main62101-12110-04iAE86..LHD198305-198707

BLUE,BLUE,TRIM8#

62103CCLIP, COWL SIDE TRIM BOARD SET

main90467-07041-01iAE86198505-198707

BLACK,BLACK,TRIM2#

main90467-07041-02×2iAE86198305-198505

DEEP MAROON,RED/MAROON,TRIM3#

main90467-07041-04×2iAE86198305-198707

BLUE,BLUE,TRIM8#

62104BOARD SUB-ASSY, COWL SIDE TRIM, LH

main62102-12100-01iAE86..RHD198505-198704

BLACK,BLACK,TRIM2#

main62102-12100-02iAE86..RHD198305-198505

DEEP MAROON,RED/MAROON,TRIM3#

main62102-12100-04iAE86..RHD198305-198704

BLUE,BLUE,TRIM8#

main62102-12110-01iAE86..LHD198505-198707

BLACK,BLACK,TRIM2#

main62102-12110-02iAE86..LHD198305-198505

DEEP MAROON,RED/MAROON,TRIM3#

main62102-12110-04iAE86..LHD198305-198707

BLUE,BLUE,TRIM8#

62117ACOVER, COWL SIDE TRIM SERVICE HOLE

main62117-12010-02iAE86..RHD198305-198505

DEEP MAROON,RED/MAROON,TRIM3#

main62117-12050-02iAE86..LHD198305-198503

DEEP MAROON,RED/MAROON,TRIM3#

main62117-12050-04iAE86..LHD198305-198503

BLUE,BLUE,TRIM8#

main62117-12052-02iAE86..LHD198503-198505

DEEP MAROON,DEEP MAROON,TRIM3#

main62117-12052-04iAE86..LHD198503-198505

BLUE,BLUE,TRIM8#

main62117-12060-02iAE86..LHD..EUG198308-198501

*WEG,DEEP MAROON,RED/MAROON,TRIM3#

main62117-12060-04iAE86..LHD..EUG198308-198501

*WEG,BLUE,BLUE,TRIM8#

main62117-12070-01iAE86..LHD198505-198707

BLACK,BLACK,TRIM2#

main62117-12070-04iAE86..LHD198505-198707

BLUE,BLUE,TRIM8#

main62117-12080-01iAE86..RHD198505-198704

BLACK,BLACK,TRIM2#

main62117-12080-04iAE86..RHD198305-198704

BLUE,BLUE,TRIM8#

62161ACOVER, COWL SIDE TRIM SERVICE HOLE

main62161-12050×2iAE86198305-198707

62211GARNISH, FRONT PILLAR, RH

main62211-12140-01iAE86..LHD198505-198707

BLACK,BLACK,TRIM2#

main62211-12140-02iAE86..LHD198305-198505

DEEP MAROON,RED/MAROON,TRIM3#

main62211-12140-04iAE86..LHD198305-198707

BLUE,BLUE,TRIM8#

main62211-12150-01iAE86..RHD198505-198704

BLACK,BLACK,TRIM2#

main62211-12150-02iAE86..RHD198305-198505

DEEP MAROON,RED/MAROON,TRIM3#

main62211-12150-04iAE86..RHD198305-198704

BLUE,BLUE,TRIM8#

62212GARNISH, FRONT PILLAR, LH

main62212-12140-01iAE86..RHD198505-198704

BLACK,BLACK,TRIM2#

main62212-12140-02iAE86..RHD198305-198505

DEEP MAROON,RED/MAROON,TRIM3#

main62212-12140-04iAE86..RHD198305-198704

BLUE,BLUE,TRIM8#

main62212-12150-01iAE86..LHD198505-198707

BLACK,BLACK,TRIM2#

main62212-12150-02iAE86..LHD198305-198505

DEEP MAROON,RED/MAROON,TRIM3#

main62212-12150-04iAE86..LHD198305-198707

BLUE,BLUE,TRIM8#

62381WEATHERSTRIP, ROOF SIDE RAIL, FRONT RH

main62381-12140iAE86..GEN198305-198307

main62381-12160iAE86198307-198707

62382WEATHERSTRIP, ROOF SIDE RAIL, FRONT LH

main62382-12150iAE86..GEN198305-198307

main62382-12170iAE86198307-198707

62411GARNISH, CENTER PILLAR, RH

main62411-12240-02iAE86..3D198305-198311

W/*ELR,DEEP MAROON,RED/MAROON,TRIM3#

main62411-12240-04iAE86..3D198305-198311

W/*ELR,BLUE,BLUE,TRIM8#

main62411-12260-02iAE86..2D198305-198309

W/*ELR,DEEP MAROON,RED/MAROON,TRIM3#

main62411-12260-04iAE86..2D198305-198309

W/*ELR,BLUE,BLUE,TRIM8#

main62411-12320-01iAE86..3D198505-198707

BLACK,BLACK,TRIM2#

main62411-12320-02iAE86..3D198311-198505

DEEP MAROON,RED/MAROON,TRIM3#

main62411-12320-04iAE86..3D198311-198707

BLUE,BLUE,TRIM8#

main62411-12330-01iAE86..2D198505-198704

BLACK,BLACK,TRIM2#

main62411-12330-02iAE86..2D..GEN198305-198309

DEEP MAROON,RED/MAROON,TRIM3#

main62411-12330-04iAE86..2D198309-198704

BLUE,BLUE,TRIM8#

62412GARNISH, CENTER PILLAR, LH

main62412-12240-02iAE86..3D198305-198311

W/*ELR,DEEP MAROON,RED/MAROON,TRIM3#

main62412-12240-04iAE86..3D198305-198311

W/*ELR,BLUE,BLUE,TRIM8#

main62412-12260-02iAE86..2D198305-198309

W/*ELR,DEEP MAROON,RED/MAROON,TRIM3#

main62412-12260-04iAE86..2D198305-198309

W/*ELR,BLUE,BLUE,TRIM8#

main62412-12320-01iAE86..3D198505-198707

BLACK,BLACK,TRIM2#

main62412-12320-02iAE86..3D198311-198505

DARK MAROON,RED/MAROON

main62412-12320-04iAE86..3D..GEN198305-198311

BLUE,BLUE,TRIM8#

main62412-12330-01iAE86..2D198505-198704

BLACK,BLACK,TRIM2#

main62412-12330-02iAE86..2D..GEN198305-198309

DEEP MAROON,RED/MAROON,TRIM3#

main62412-12330-04iAE86..2D198309-198704

BLUE,BLUE,TRIM8#

62430GARNISH ASSY, ROOF SIDE RAIL, RH

main62431-12040-01iAE86..3D..LHD198505-198707

BLACK,BLACK,TRIM2#

main62431-12040-02iAE86..3D..LHD198305-198505

DEEP MAROON,RED/MAROON,TRIM3#

main62431-12040-04iAE86..3D..LHD198305-198707

BLUE,BLUE,TRIM8#

main62431-12050-01iAE86..3D..RHD198505-198707

BLACK,BLACK,TRIM2#

main62431-12050-02iAE86..3D..RHD198305-198505

DEEP MAROON,RED/MAROON,TRIM3#

main62431-12050-04iAE86..3D..RHD198305-198707

BLUE,BLUE,TRIM8#

main62431-12060-01iAE86..2D..LHD198505-198704

BLACK,BLACK,TRIM2#

main62431-12060-02iAE86..2D..LHD198305-198505

DEEP MAROON,RED/MAROON,TRIM3#

main62431-12060-04iAE86..2D..LHD198305-198704

BLUE,BLUE,TRIM8#

main62431-12070-01iAE86..2D..RHD198505-198704

BLACK,BLACK,TRIM2#

main62431-12070-02iAE86..2D..RHD198305-198505

DEEP MAROON,RED/MAROON,TRIM3#

main62431-12070-04iAE86..2D..RHD198305-198704

BLUE,BLUE,TRIM8#

62440GARNISH ASSY, ROOF SIDE RAIL, LH

main62432-12020-01iAE86..3D..RHD198505-198707

BLACK,BLACK,TRIM2#

main62432-12020-02iAE86..3D..RHD198305-198505

DEEP MAROON,RED/MAROON,TRIM3#

main62432-12020-04iAE86..3D..RHD198305-198707

BLUE,BLUE,TRIM8#

main62432-12030-01iAE86..3D..LHD198505-198707

BLACK,BLACK,TRIM2#

main62432-12030-02iAE86..3D..LHD198305-198505

DEEP MAROON,RED/MAROON,TRIM3#

main62432-12030-04iAE86..3D..LHD198305-198707

BLUE,BLUE,TRIM8#

main62432-12040-01iAE86..2D..RHD198505-198704

BLACK,BLACK,TRIM2#

main62432-12040-02iAE86..2D..RHD198305-198505

DEEP MAROON,RED/MAROON,TRIM3#

main62432-12040-04iAE86..2D..RHD198305-198704

BLUE,BLUE,TRIM8#

main62432-12050-01iAE86..2D..LHD198505-198704

BLACK,BLACK,TRIM2#

main62432-12050-02iAE86..2D..LHD198305-198505

DEEP MAROON,RED/MAROON,TRIM3#

main62432-12050-04iAE86..2D..LHD198305-198704

BLUE,BLUE,TRIM8#

62461GARNISH, ROOF SIDE TRIM, RH

main62471-12140-01iAE86..3D..(GEN,ME);AE86..3D..(EUG,FRG)198505-198507

BLACK,BLACK,TRIM2#

main62471-12140-02iAE86..3D..EUG;AE86..3D..(GEN,ME)198305-198505

DEEP MAROON,RED/MAROON,TRIM3#

main62471-12140-04iAE86..3D..(GEN,ME);AE86..3D..(EUG,FRG)198305-198507

BLUE,BLUE,TRIM8#

main62471-12150-01iAE86..3D..EUR198505-198507

W/RR *ELR,BLACK,BLACK,TRIM2#

main62471-12150-02iAE86..3D..(ARL,EUR)198305-198505

W/RR *ELR,DEEP MAROON,RED/MAROON,TRIM3#

main62471-12150-04iAE86..3D..(ARL,EUR)198305-198507

W/RR *ELR,BLUE,BLUE,TRIM8#

main62471-12220-01iAE86..2D..EUR198505-198507

W/RR *ELR,BLACK,BLACK,TRIM2#

main62471-12220-02iAE86..2D..EUG198308-198505

W/RR *ELR,DEEP MAROON,RED/MAROON,TRIM3#

main62471-12220-04iAE86..2D..EUR198308-198507

W/RR *ELR,BLUE,BLUE,TRIM8#

main62471-12230-01iAE86..2D198507-198704

W/SUN ROOF,BLACK,BLACK,TRIM2#

main62471-12230-02iAE86..2D198305-198505

W/SUN ROOF,DEEP MAROON,RED/MAROON,TRIM3#

main62471-12230-04iAE86..2D198305-198507

W/SUN ROOF,BLUE,BLUE,TRIM8#

main62471-12240-01iAE86..2D..EUR198505-198507

W/RR *ELR,SUN ROOF,BLACK,BLACK,TRIM2#

main62471-12240-02iAE86..2D..EUG198308-198505

W/RR *ELR,SUN ROOF,DEEP MAROON,RED/MAROON,TRIM3#

main62471-12240-04iAE86..2D..EUR198308-198507

W/RR *ELR,SUN ROOF,BLUE,BLUE,TRIM8#

main62471-12250-01iAE86..2D198505-198507

BLACK,BLACK,TRIM2#

main62471-12250-02iAE86..2D198305-198505

DEEP MAROON,RED/MAROON,TRIM3#

main62471-12250-04iAE86..2D198507-198704

BLUE,BLUE,TRIM8#

62462GARNISH, ROOF SIDE TRIM, LH

main62472-12140-01iAE86..3D198507-198707

BLACK,BLACK,TRIM2#

main62472-12140-02iAE86..3D..EUG;AE86..3D..(GEN,ME)198305-198505

DEEP MAROON,RED/MAROON,TRIM3#

main62472-12140-04iAE86..3D198507-198707

BLUE,BLUE,TRIM8#

main62472-12150-01iAE86..3D..EUR198505-198507

W/RR *ELR,BLACK,BLACK,TRIM2#

main62472-12150-02iAE86..3D..(ARL,EUR)198305-198505

W/RR *ELR,DEEP MAROON,RED/MAROON,TRIM3#

main62472-12150-04iAE86..3D..(ARL,EUR)198305-198507

W/RR *ELR,BLUE,BLUE,TRIM8#

main62472-12160-01iAE86..2D198505-198507

BLACK,BLACK,TRIM2#

main62472-12160-02iAE86..2D198305-198505

DEEP MAROON,RED/MAROON,TRIM3#

main62472-12160-04iAE86..2D198507-198704

BLUE,BLUE,TRIM8#

main62472-12230-01iAE86..2D..EUR198505-198507

W/RR *ELR,BLACK,BLACK,TRIM2#

main62472-12230-02iAE86..2D..EUG198308-198505

W/RR *ELR,DEEP MAROON,RED/MAROON,TRIM3#

main62472-12230-04iAE86..2D..EUR198308-198507

W/RR *ELR,BLUE,BLUE,TRIM8#

main62472-12240-01iAE86..2D198505-198507

W/SUN ROOF,BLACK,BLACK,TRIM2#

main62472-12240-02iAE86..2D198305-198505

W/SUN ROOF,DEEP MAROON,RED/MAROON,TRIM3#

main62472-12240-04iAE86..2D198507-198704

W/SUN ROOF,BLUE,BLUE,TRIM8#

main62472-12250-01iAE86..2D..EUR198505-198507

W/RR *ELR,SUN ROOF,BLACK,BLACK,TRIM2#

main62472-12250-02iAE86..2D..EUG198308-198505

W/RR *ELR,SUN ROOF,DEEP MAROON,RED/MAROON,TRIM3#

main62472-12250-04iAE86..2D..EUR198308-198507

W/RR *ELR,SUN ROOF,BLUE,BLUE,TRIM8#

62501APANEL ASSY, QUARTER TRIM, RH

main62510-12680-04iAE86..3D..GT198308-198408

W/*MT,BLUE,BLUE,TRIM8#

main62510-12680-12iAE86..3D..GT198308-198408

W/*MT,DEEP MAROON,RED/MAROON,TRIM3#

main62510-12690-02iAE86..3D..(ARL,EUR)198305-198408

W/RR *ELR,DEEP MAROON,RED/MAROON,TRIM3#

main62510-12690-04iAE86..3D..(ARL,EUR)198305-198408

W/RR *ELR,BLUE,BLUE,TRIM8#

main62510-12691-02iAE86..3D..(ARL,EUR)198408-198505

W/RR *ELR,DEEP MAROON,DEEP MAROON,TRIM3#

main62510-12691-04iAE86..3D..(ARL,EUR)198408-198505

W/RR *ELR,BLUE,BLUE,TRIM8#

main62510-12700-04iAE86..3D..EUG198308-198408

W/RR *ELR & *MT,BLUE,BLUE,TRIM8#

main62510-12700-12iAE86..3D..EUG198308-198408

W/RR *ELR & *MT,DEEP MAROON,RED/MAROON,TRIM3#

main62510-12701-02iAE86..3D..GT..EUR198408-198505

W/RR *ELR & *MT,DEEP MAROON,DEEP MAROON,TRIM3#

main62510-12701-04iAE86..3D..GT..EUR198408-198505

W/RR *ELR & *MT,BLUE,BLUE,TRIM8#

main62510-12720-02iAE86..2D..GEN198305-198408

DEEP MAROON,RED/MAROON,TRIM3#

main62510-12720-04iAE86..2D..GEN198305-198505

BLUE,BLUE,TRIM8#

main62510-12720-12iAE86..2D..GEN198408-198505

DEEP MAROON,DEEP MAROON,TRIM3#

main62510-12730-04iAE86..2D..EUG198308-198408

W/*MT,BLUE,BLUE,TRIM8#

main62510-12730-12iAE86..2D..EUG198308-198408

W/*MT,DEEP MAROON,RED/MAROON,TRIM3#

main62510-12740-02iAE86..2D..EUG198308-198408

DEEP MAROON,RED/MAROON,TRIM3#

main62510-12740-04iAE86..2D..EUG198308-198408

BLUE,BLUE,TRIM8#

main62510-12750-02iAE86..3D..SR..GEN198305-198408

DEEP MAROON,RED/MAROON,TRIM3#

main62510-12750-04iAE86..3D..SR..GEN198305-198505

BLUE,BLUE,TRIM8#

main62510-12750-12iAE86..3D..SR..GEN198408-198505

DEEP MAROON,RED/MAROON,TRIM3#

main62510-12770-02iAE86..3D..EUG198308-198408

DEEP MAROON,RED/MAROON,TRIM3#

main62510-12770-04iAE86..3D..EUG198308-198408

BLUE,BLUE,TRIM8#

main62510-12780-04iAE86..2D..EUG198308-198408

W/RR *ELR & *MT,BLUE,BLUE,TRIM8#

main62510-12780-12iAE86..2D..EUG198308-198408

W/RR *ELR & *MT,DEEP MAROON,DEEP MAROON,TRIM3#

main62510-12781-02iAE86..2D..EUG198408-198505

W/RR *ELR & *MT,DEEP MAROON,DEEP MAROON,TRIM3#

main62510-12781-04iAE86..2D..EUG198408-198505

W/RR *ELR & *MT,BLUE,BLUE,TRIM8#

main62510-12790-02iAE86..2D..EUG198308-198408

W/RR *ELR,DEEP MAROON,RED/MAROON,TRIM3#

main62510-12790-04iAE86..2D..EUG198308-198408

W/RR *ELR,BLUE,BLUE,TRIM8#

main62510-12791-02iAE86..2D..EUG198408-198505

W/RR *ELR,DEEP MAROON,DEEP MAROON,TRIM3#

main62510-12791-04iAE86..2D..EUG198408-198505

W/RR *ELR,BLUE,BLUE,TRIM8#

main62510-12870-02iAE86..3D..EUG198408-198505

DEEP MAROON,DEEP MAROON,TRIM3#

main62510-12870-04iAE86..3D..EUG198408-198505

BLUE,BLUE,TRIM8#

main62510-12880-02iAE86..2D..EUG198408-198505

DEEP MAROON,DEEP MAROON,TRIM3#

main62510-12880-04iAE86..2D..EUG198408-198505

BLUE,BLUE,TRIM8#

main62510-12890-02iAE86..3D..EUG;AE86..GT..(GEN,ME)198408-198505

W/*MT,DEEP MAROON,DEEP MAROON,TRIM3#

main62510-12890-04iAE86..3D..EUG;AE86..GT..(GEN,ME)198408-198505

W/*MT,BLUE,BLUE,TRIM8#

main62510-1A010-02iAE86..2D..EUG198408-198505

W/*MT,DEEP MAROON,DEEP MAROON,TRIM3#

main62510-1A010-04iAE86..2D..EUG198408-198505

W/*MT,BLUE,BLUE,TRIM8#

main62510-1A020-01iAE86..3D..SR198505-198704

BLACK,BLACK,TRIM2#

main62510-1A020-04iAE86..3D..SR198505-198704

BLUE,BLUE,TRIM8#

main62510-1A030-01iAE86..GT..(GEN,ME);AE86..3D..(EUG,FRG)198505-198608

BLACK,BLACK,TRIM2#

main62510-1A030-04iAE86..GT..(GEN,ME);AE86..3D..(EUG,FRG)198505-198608

BLUE,BLUE,TRIM8#

main62510-1A040-01iAE86..3D..EUR198505-198608

W/RR *ELR,BLACK,BLACK,TRIM2#

main62510-1A040-04iAE86..3D..EUR198505-198608

W/RR *ELR,BLUE,BLUE,TRIM8#

main62510-1A041-01iAE86..3D..EUR198608-198704

W/RR *ELR,BLACK,BLACK,TRIM2#

main62510-1A041-04iAE86..3D..EUR198608-198704

W/RR *ELR,BLUE,BLUE,TRIM8#

main62510-1A050-01iAE86..2D..GEN198505-198704

BLACK,BLACK,TRIM2#

main62510-1A050-04iAE86..2D..GEN198505-198704

BLUE,BLUE,TRIM8#

main62510-1A080-01iAE86..2D..EUR198505-198608

BLACK,BLACK,TRIM2#

main62510-1A080-04iAE86..2D..EUR198505-198608

BLUE,BLUE,TRIM8#

main62510-1A090-01iAE86..2D..EUR198505-198608

W/RR *ELR,BLACK,BLACK,TRIM2#

main62510-1A090-04iAE86..2D..EUR198505-198608

W/RR *ELR,BLUE,BLUE,TRIM8#

main62510-1A091-01iAE86..2D..EUR198608-198704

W/RR *ELR,BLACK,BLACK,TRIM2#

main62510-1A091-04iAE86..2D..EUR198608-198704

W/RR *ELR,BLUE,BLUE,TRIM8#

main62510-1A170-01iAE86..3D..GT198608-198707

BLACK,BLACK,TRIM2#

main62510-1A170-04iAE86..3D..GT198608-198707

BLUE,BLUE,TRIM8#

main62510-1A180-01iAE86..2D..EUR198608-198704

BLACK,BLACK,TRIM2#

main62510-1A180-04iAE86..2D..EUR198608-198704

BLUE,BLUE,TRIM8#

62502APANEL ASSY, QUARTER TRIM, LH

main62520-12660-04iAE86..3D..GT198308-198408

W/*MT,BLUE,BLUE,TRIM8#

main62520-12660-12iAE86..3D..GT198308-198408

W/*MT,DEEP MAROON,RED/MAROON,TRIM3#

main62520-12670-02iAE86..3D..(ARL,EUR)198305-198408

W/RR *ELR,DEEP MAROON,RED/MAROON,TRIM3#

main62520-12670-04iAE86..3D..(ARL,EUR)198305-198408

W/RR *ELR,BLUE,BLUE,TRIM8#

main62520-12671-02iAE86..3D..(ARL,EUR)198408-198505

W/RR *ELR,DEEP MAROON,DEEP MAROON,TRIM3#

main62520-12671-04iAE86..3D..(ARL,EUR)198408-198505

W/RR *ELR,BLUE,BLUE,TRIM8#

main62520-12680-04iAE86..3D..EUG198308-198408

W/RR *ELR & *MT,BLUE,BLUE,TRIM8#

main62520-12680-12iAE86..3D..EUG198308-198408

W/RR *ELR & *MT,DEEP MAROON,RED/MAROON,TRIM3#

main62520-12681-02iAE86..3D..GT..EUR198408-198505

W/RR *ELR & *MT,DEEP MAROON,DEEP MAROON,TRIM3#

main62520-12681-04iAE86..3D..GT..EUR198408-198505

W/RR *ELR & *MT,BLUE,BLUE,TRIM8#

main62520-12700-02iAE86..2D..GEN198305-198408

DEEP MAROON,RED/MAROON,TRIM3#

main62520-12700-04iAE86..2D..GEN198305-198505

BLUE,BLUE,TRIM8#

main62520-12700-12iAE86..2D..GEN198408-198505

DEEP MAROON,DEEP MAROON,TRIM3#

main62520-12710-04iAE86..2D..EUG198308-198408

W/*MT,BLUE,BLUE,TRIM8#

main62520-12710-12iAE86..2D..EUG198308-198408

W/*MT,DEEP MAROON,RED/MAROON,TRIM3#

main62520-12720-02iAE86..2D..EUG198308-198408

DEEP MAROON,RED/MAROON,TRIM3#

main62520-12720-04iAE86..2D..EUG198308-198408

BLUE,BLUE,TRIM8#

main62520-12730-02iAE86..3D..SR..GEN198305-198408

DEEP MAROON,RED/MAROON,TRIM3#

main62520-12730-04iAE86..3D..SR..GEN198305-198505

BLUE,BLUE,TRIM8#

main62520-12730-12iAE86..3D..SR..GEN198408-198505

DEEP MAROON,RED/MAROON,TRIM3#

main62520-12750-02iAE86..3D..EUG198308-198408

DEEP MAROON,RED/MAROON,TRIM3#

main62520-12750-04iAE86..3D..EUG198308-198408

BLUE,BLUE,TRIM8#

main62520-12760-04iAE86..2D..EUG198308-198408

W/RR *ELR & *MT,BLUE,BLUE,TRIM8#

main62520-12760-12iAE86..2D..EUG198308-198408

W/RR *ELR & *MT,DEEP MAROON,DEEP MAROON,TRIM3#

main62520-12761-02iAE86..2D..EUG198408-198505

W/RR *ELR & *MT,DEEP MAROON,DEEP MAROON,TRIM3#

main62520-12761-04iAE86..2D..EUG198408-198505

W/RR *ELR & *MT,BLUE,BLUE,TRIM8#

main62520-12770-02iAE86..2D..EUG198308-198408

W/RR *ELR,DEEP MAROON,RED/MAROON,TRIM3#

main62520-12770-04iAE86..2D..EUG198308-198408

W/RR *ELR,BLUE,BLUE,TRIM8#

main62520-12771-02iAE86..2D..EUG198408-198505

W/RR *ELR,DEEP MAROON,DEEP MAROON,TRIM3#

main62520-12771-04iAE86..2D..EUG198408-198505

W/RR *ELR,BLUE,BLUE,TRIM8#

main62520-12850-02iAE86..3D..EUG198408-198505

DEEP MAROON,DEEP MAROON,TRIM3#

main62520-12850-04iAE86..3D..EUG198408-198505

BLUE,BLUE,TRIM8#

main62520-12860-02iAE86..2D..EUG198408-198505

DEEP MAROON,DEEP MAROON,TRIM3#

main62520-12860-04iAE86..2D..EUG198408-198505

BLUE,BLUE,TRIM8#

main62520-12870-02iAE86..3D..EUG;AE86..GT..(GEN,ME)198408-198505

W/*MT,DEEP MAROON,DEEP MAROON,TRIM3#

main62520-12870-04iAE86..3D..EUG;AE86..GT..(GEN,ME)198408-198505

W/*MT,BLUE,BLUE,TRIM8#

main62520-12880-02iAE86..2D..EUG198408-198505

W/*MT,DEEP MAROON,DEEP MAROON,TRIM3#

main62520-12880-04iAE86..2D..EUG198408-198505

W/*MT,BLUE,BLUE,TRIM8#

main62520-12890-01iAE86..3D..SR198505-198704

BLACK,BLACK,TRIM2#

main62520-12890-04iAE86..3D..SR198505-198704

BLUE,BLUE,TRIM8#

main62520-1A010-01iAE86..GT..(GEN,ME);AE86..3D..(EUG,FRG)198505-198608

BLACK,BLACK,TRIM2#

main62520-1A010-04iAE86..GT..(GEN,ME);AE86..3D..(EUG,FRG)198505-198608

BLUE,BLUE,TRIM8#

main62520-1A020-01iAE86..3D..EUR198505-198608

W/RR *ELR,BLACK,BLACK,TRIM2#

main62520-1A020-04iAE86..3D..EUR198505-198608

W/RR *ELR,BLUE,BLUE,TRIM8#

main62520-1A021-01iAE86..3D..EUR198608-198704

W/RR *ELR,BLACK,BLACK,TRIM2#

main62520-1A021-04iAE86..3D..EUR198608-198704

W/RR *ELR,BLUE,BLUE,TRIM8#

main62520-1A030-01iAE86..2D..GEN198505-198704

BLACK,BLACK,TRIM2#

main62520-1A030-04iAE86..2D..GEN198505-198704

BLUE,BLUE,TRIM8#

main62520-1A060-01iAE86..2D..EUR198505-198608

BLACK,BLACK,TRIM2#

main62520-1A060-04iAE86..2D..EUR198505-198608

BLUE,BLUE,TRIM8#

main62520-1A070-01iAE86..2D..EUR198505-198608

W/RR *ELR,BLACK,BLACK,TRIM2#

main62520-1A070-04iAE86..2D..EUR198505-198608

W/RR *ELR,BLUE,BLUE,TRIM8#

main62520-1A071-01iAE86..2D..EUR198608-198704

W/RR *ELR,BLACK,BLACK,TRIM2#

main62520-1A071-04iAE86..2D..EUR198608-198704

W/RR *ELR,BLUE,BLUE,TRIM8#

main62520-1A150-01iAE86..3D..GT198608-198707

BLACK,BLACK,TRIM2#

main62520-1A150-04iAE86..3D..GT198608-198707

BLUE,BLUE,TRIM8#

main62520-1A160-01iAE86..2D..EUR198608-198704

BLACK,BLACK,TRIM2#

main62520-1A160-04iAE86..2D..EUR198608-198704

BLUE,BLUE,TRIM8#

62512SBASE, QUARTER TRIM, FRONT

main62517-12120-01iAE86198505-198707

RH,BLACK,BLACK,TRIM2#

main62517-12120-02iAE86198305-198505

RH,DEEP MAROON,RED/MAROON,TRIM3#

main62517-12120-04iAE86198305-198707

RH,BLUE,BLUE,TRIM8#

main62518-12060-01iAE86198505-198707

LH,BLACK,BLACK,TRIM2#

main62518-12060-02iAE86198305-198505

LH,DEEP MAROON,RED/MAROON,TRIM3#

main62518-12060-04iAE86198305-198707

LH,BLUE,BLUE,TRIM8#

62531COVER, WHEEL HOUSE TRIM, RH

main62610-12070-01iAE86..3D..SR198505-198704

BLACK,BLACK,TRIM2#

main62610-12070-02iAE86..3D..GT..EUR198308-198505

DEEP MAROON,RED/MAROON,TRIM3#

main62610-12070-04iAE86..3D..SR198305-198704

BLUE,BLUE,TRIM8#

main62610-12090-01iAE86..2D..GEN198505-198704

BLACK,BLACK,TRIM2#

main62610-12090-02iAE86..2D198305-198505

DEEP MAROON,RED/MAROON,TRIM3#

main62610-12090-04iAE86..2D198305-198505

BLUE,BLUE,TRIM8#

62532COVER, WHEEL HOUSE TRIM, LH

main62620-12060-01iAE86..3D..SR198505-198704

BLACK,BLACK,TRIM2#

main62620-12060-02iAE86..3D..SR198305-198505

DEEP MAROON,RED/MAROON,TRIM3#

main62620-12060-04iAE86..3D..GT..EUR198308-198505

BLUE,BLUE,TRIM8#

main62620-12070-01iAE86..2D..GEN198505-198704

BLACK,BLACK,TRIM2#

main62620-12070-02iAE86..2D198305-198505

DEEP MAROON,RED/MAROON,TRIM3#

main62620-12070-04iAE86..2D198305-198505

BLUE,BLUE,TRIM8#

62533ABRACKET, QUARTER TRIM CLAMP

main62533-12100×6iAE86..2D198305-198704

62581RETAINER, QUARTER TRIM

main67771-12010×10iAE86198305-198308

main67771-12020×8iAE86..3D..GT198308-198707

main67771-16020×10iAE86..SR;AE86..2D..EUR198308-198704

62597BCLAMP, QUARTER TRIM

main62597-12030×6iAE86198305-198707

62621BPAD, QUARTER WHEEL HOUSE, INNER FRONT RH

main62621-12040iAE86..GT198308-198707

62622BPAD, QUARTER WHEEL HOUSE, INNER FRONT LH

main62622-12010iAE86..GT198308-198707

67457BRACKET, QUARTER REAR GUIDE, UPPER

main67457-12040×2iAE86..2D..EUR198308-198704

7104SEAT BELT & CHILD RESTRAINT SEAT

→ Go to FIG 71-04

74259BRACKET, REAR SIDE ARMREST SUPPORT

main74259-12010×2iAE86..GT198308-198707

9011906100

main90119-06100

9011906126

main90119-06126

9015950105

main90159-50105

9046805017

main90468-05017

9163160614

main91631-60614

9166540616

main91665-40616

9354055012

main93540-55012

9356014010

main93560-14010

9356755014

main93567-55014

37 parts on this diagram · 2 diagrams in section
