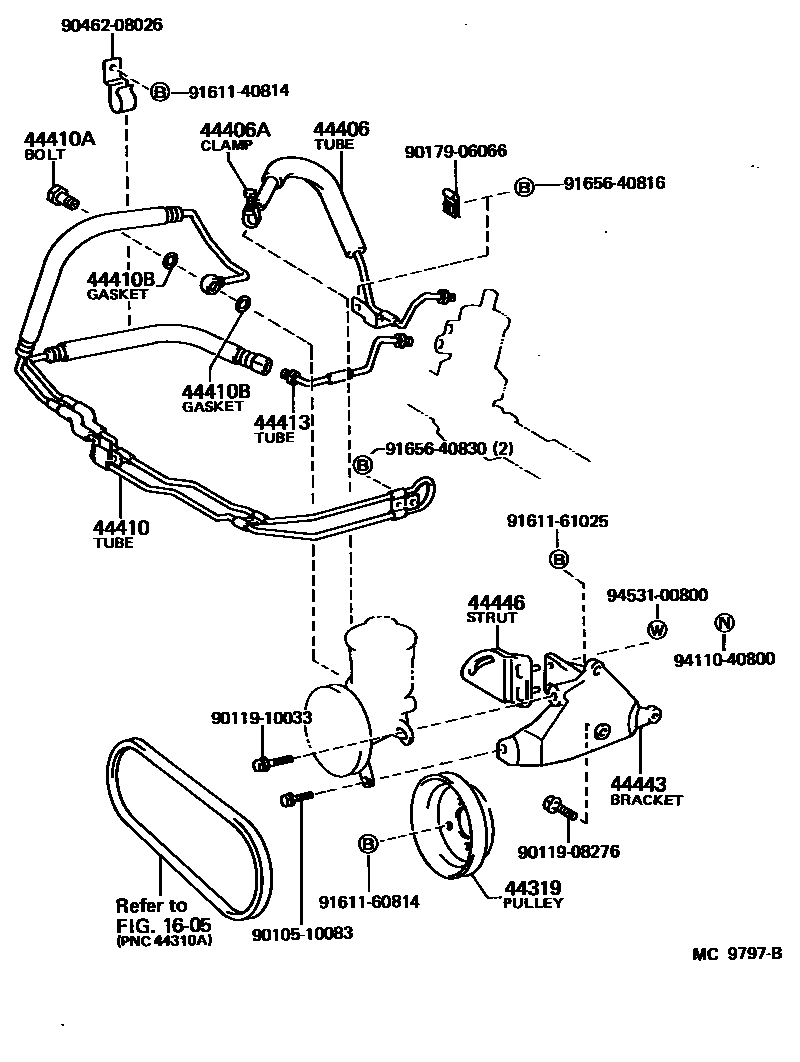

POWER STEERING TUBE

1605V-BELT

→ Go to FIG 16-05

44319PULLEY, VANE PUMP DRIVE

main44319-12011iAE86..ARL198305-198505

44406TUBE SUB-ASSY, RETURN

main44406-12020iAE86..ARL198305-198505

44406ACLAMP(FOR RETURN TUBE)

main90460-01001iAE86..ARL198305-198505

44410TUBE ASSY, PRESSURE FEED

main44410-12130iAE86..ARL198305-198505

44410ABOLT, UNION(FOR PRESSURE FEED TUBE)

main90401-16005iAE86..ARL198305-198408

main90401-16008iAE86..ARL198408-198505

44410BGASKET(FOR PRESSURE FEED TUBE)

main90430-16242×2iAE86..ARL198305-198505

44413TUBE, PRESSURE FEED, NO.1

main44413-12070iAE86..ARL198305-198505

44443BRACKET, PUMP

main44443-12040iAE86..ARL198305-198505

44446STRUT, ADJUSTING

main44446-12020iAE86..ARL198305-198505

9010510083

main90105-10083

9011908276

main90119-08276

9011910033

main90119-10033

9017906066

main90179-06066

9046208026

main90462-08026

9161140814

main91611-40814

9161160814

main91611-60814

9161161025

main91611-61025

9165640816

main91656-40816

9165640830

main91656-40830

9411040800

main94110-40800

9453100800

main94531-00800

22 parts on this diagram · 1 diagram in section
