REAR AXLE SHAFT & HUB

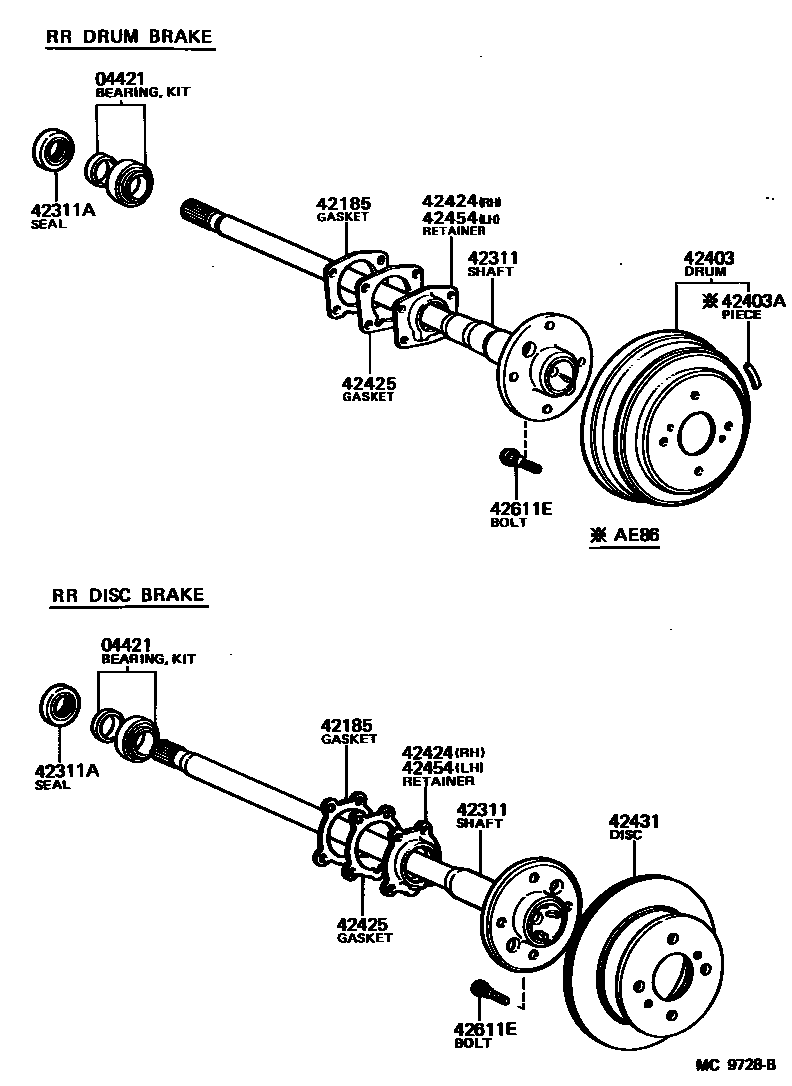

Parts diagram

04421BEARING KIT, REAR AXLE SHAFT

main04421-12010×2i198305-198704

main04421-14010×2i198308-198707

42185GASKET, REAR AXLE HOUSING END

main42185-12010×2i198305-198406

main42185-14010×2i198308-198707

main42185-22010×2i198305-198406

42311SHAFT, REAR AXLE

main42311-12080×2i198305-198704

main42311-12100×2i198308-198510

W/LSD

main42311-12101×2i198510-198707

W/LSD

main42311-14120×2i198308-198510

main42311-14121×2i198510-198707

42311ASEAL, OIL(FOR REAR AXLE SHAFT)

main90311-42055×2i198305-198704

main90311-52059×2i198308-198707

42403DRUM SUB-ASSY, REAR BRAKE

main42431-12050×2i198305-198411

main42431-12081×2i198411-198704

42403APIECE, BALANCE (FOR REAR BRAKE DRUM)

main90937-01020×2i198305-198704

20G,20G

main90937-01021×2i198305-198704

40G,40G

main90937-01023×2i198305-198704

10G,10G

main90937-01032×2i198305-198704

30G,30G

main90937-01033×2i198305-198704

50G,50G

main90937-01034×2i198305-198704

60G,60G

42424RETAINER, REAR AXLE BEARING, OUTER, RH

main42424-14010i198308-198707

main42424-20010i198305-198704

42425GASKET, REAR AXLE BEARING RETAINER

main42425-14010×2i198308-198610

main42425-20010×2i198305-198704

42431DISC, REAR

main42431-12070×2i198308-198707

42454RETAINER, REAR AXLE BEARING, OUTER, LH

main42424-14010i198308-198707

main42454-20010i198305-198704

42611EBOLT, HUB (FOR REAR AXLE)

main90942-02047×8i198305-198707

11 parts on this diagram · 1 diagram in section
