ALTERNATOR

0001 1 0002 1 0003 1

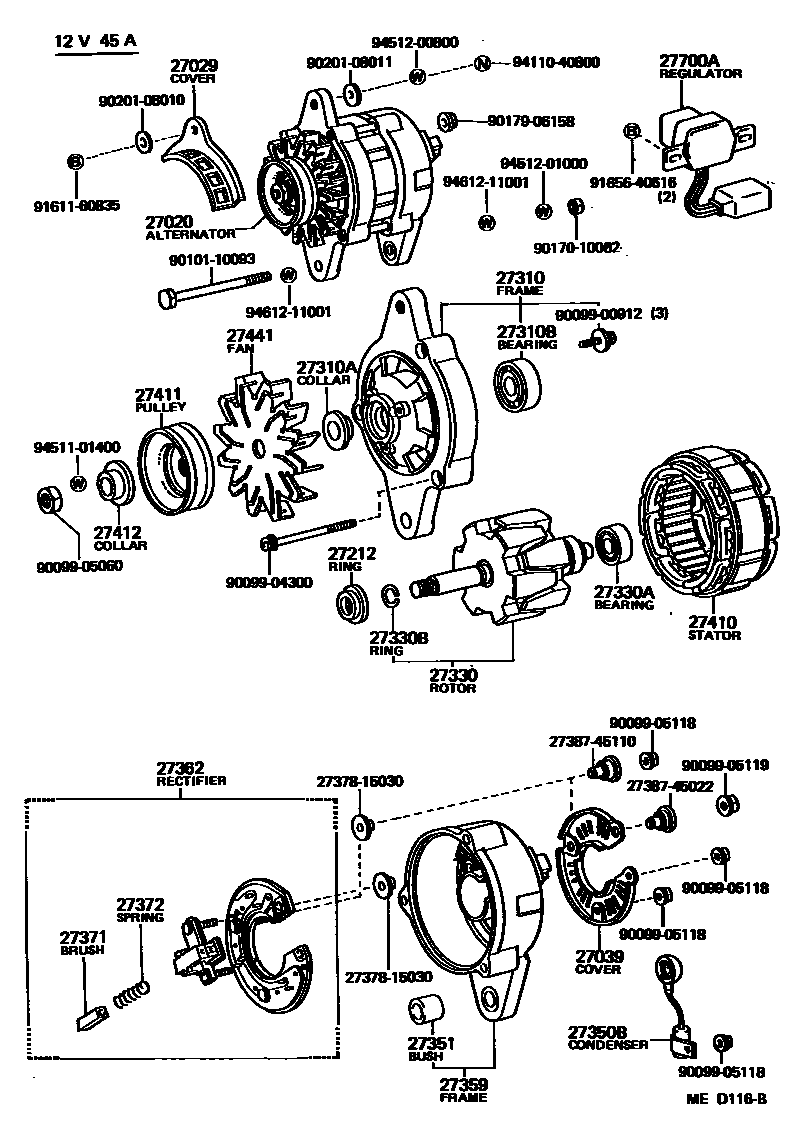

27020ALTERNATOR ASSY

main27020-15022i4A..AE86..4FC;4AC..AE86..SDZ198305-198704

12V 50A,12V 50A

sub27020-15140

main27020-15100i4A,4AC..AE86..5F..(ARL,GEN)198305-198704

12V 45A,12V 45A

sub27020-15022

main27060-16010i4AGE..AE86198308-198401

12V 60A,12V 60A

main27060-16050i4AG#..AE86198401-198505

12V 60A

main27060-16090i4AG#..AE86198505-198608

12V 60A

main27060-16091i4AG#..AE86198608-198707

12V 60A

27029COVER, ALTERNATOR

main27029-15012i4A,4AC..AE86198305-198707

12V 45A,50A

27039COVER, ALTERNATOR REAR END

main27039-18011i4A,4AC..AE86..5F..(ARL,GEN)198305-198704

12V 45A

main27039-63021i4AGE..AE86198308-198401

12V 60A

sub27039-72010

main27039-63040i4AG#..AE86198401-198505

12V 60A

sub27039-72110

main27039-72110i4AG#..AE86198505-198707

12V 60A

27212RING, SPACE(FOR ALTERNATOR ROTOR)

main27212-39050i4A,4AC..AE86..5F..(ARL,GEN)198305-198704

12V 45A

main27412-15150i4A..AE86..4FC198604-198704

12V 50A

main27412-45070i4A..AE86..4FC;4AC..AE86..SDZ198305-198604

12V 50A

27310FRAME ASSY, DRIVE END, ALTERNATOR

main27310-15030i4A,4AC..AE86..5F..(ARL,GEN)198305-198704

12V 45A

main27310-16010i4AGE..AE86198308-198401

12V 60A

main27310-16080i4AGE..AE86198401-198501

12V 60A

main27310-16081i4AG#..AE86198501-198707

12V 60A

sub27310-11110

main27310-61023i4A..AE86..4FC;4AC..AE86..SDZ198305-198704

12V 50A

27310ACOLLAR OR NUT(FOR ALTERNATOR DRIVE END FRAME)

main27412-31040i4A,4AC..AE86198305-198704

12V 45A,50A

27310BBEARING(FOR ALTERNATOR DRIVE END FRAME)

main90099-10126i4A,4AC..AE86198305-198704

12V 45A,50A

sub90099-10125

main90099-10141i4AGE..AE86198308-198309

12V 60A,OD=42

main90099-10152i4AGE..AE86198309-198501

12V 60A,OD=43

main90099-10159i4AG#..AE86198501-198707

12V 60A

sub90099-10199

27330ROTOR ASSY, ALTERNATOR

main27330-10020i4AG#..AE86198501-198707

12V 60A

sub27330-10021

main27330-16030i4A..AE86..4FC198604-198704

12V 50A

main27330-45020i4A,4AC..AE86..5F..(ARL,GEN)198305-198704

12V 45A

main27330-45070i4A..AE86..4FC;4AC..AE86..SDZ198305-198604

12V 50A

sub27330-16030

main27330-63021i4AGE..AE86198308-198401

12V 60A

sub27330-72100

main27330-63041i4AGE..AE86198401-198501

12V 60A

sub27330-10020

27330ABEARING(FOR ALTERNATOR ROTOR)

main90099-10111i4A,4AC..AE86198305-198704

12V 45A,50A

sub90099-10116

main90099-10140i4AG#..AE86198308-198707

12V 60A

27330BRING, SNAP(FOR ALTERNATOR ROTOR)

main90099-07048i4A,4AC..AE86..5F..(ARL,GEN)198305-198704

12V 45A

27350BCONDENSER, ALTERNATOR

main90099-52065i4A,4AC..AE86198305-198704

12V 45A,50A

sub90099-52034

27351BUSH(FOR ALTERNATOR RECTIFIER END FRAME)

main27351-38051i4A,4AC..AE86198305-198704

12V 45A,50A

27359FRAME, ALTERNATOR RECTIFIER END

main27359-15021i4A..AE86..4FC;4AC..AE86..SDZ198305-198704

12V 50A

main27359-15030i4A,4AC..AE86..5F..(ARL,GEN)198305-198704

12V 45A

main27359-16010i4AGE..AE86198308-198401

12V 60A

sub27359-16011

sub27370-16011

main27359-16081i4AG#..AE86198401-198707

12V 60A

27362RECTIFIER ASSY, W/BRUSH

main27362-15021i4A..AE86..4FC;4AC..AE86..SDZ198305-198704

12V 50A

sub27362-63011

main27362-18011i4A,4AC..AE86..5F..(ARL,GEN)198305-198704

12V 45A

27371BRUSH, ALTERNATOR

main27371-31011i4A,4AC..AE86198305-198704

12V 45A,50A

main27371-63020i4AG#..AE86198308-198707

12V 60A

sub27371-70300

27372SPRING, ALTERNATOR BRUSH

main27372-31011i4A,4AC..AE86198305-198704

12V 45A,50A

main27372-63020i4AG#..AE86198308-198505

12V 60A

sub27372-87501

main27372-72100i4AG#..AE86198505-198707

12V 60A

sub27372-63020

27410STATOR ASSY, ALTERNATOR

main27410-38120i4A,4AC..AE86..5F..(ARL,GEN)198305-198704

12V 45A

main27410-41080i4A..AE86..4FC;4AC..AE86..SDZ198305-198704

12V 50A

27411PULLEY, ALTERNATOR

main27411-16010i4AGE..AE86198308-198501

12V 60A

main27411-16011i4AG#..AE86198501-198505

12V 60A

main27411-26111i4A,4AC..AE86198305-198704

12V 45A,50A

main27411-63081i4AG#..AE86198505-198707

12V 60A

sub27411-16180

27412COLLAR, SPACER(FOR ALTERNATOR PULLEY)

main27412-44030i4A,4AC..AE86198305-198704

12V 45A,50A

sub27412-44031

27441FAN, ALTERNATOR

main27441-34030i4A,4AC..AE86198305-198704

12V 45A,50A

27700AREGULATOR ASSY, GENERATOR

main27700-15030i4A,4AC..AE86198305-198704

12V 45A,50A

sub27700-15040

main27700-63021i4AG#..AE86198308-198707

12V 60A

sub27700-70030

2737815030INSULATOR, ALTERNATOR, NO.1

main27378-15030

2738745022INSULATOR, TERMINAL

main27387-45022

2738745110INSULATOR, TERMINAL

main27387-45110

9009900912

main90099-00912

9009904300

main90099-04300

9009905060

main90099-05060

9009905118

main90099-05118

9009905119

main90099-05119

9010110093

main90101-10093

9017010082

main90170-10082

9017906158

main90179-06158

9020108010

main90201-08010

9020108011

main90201-08011

9161160835

main91611-60835

9165640616

main91656-40616

9411040800

main94110-40800

9451101400

main94511-01400

9451200800

main94512-00800

9451201000

main94512-01000

9461211001

main94612-11001
