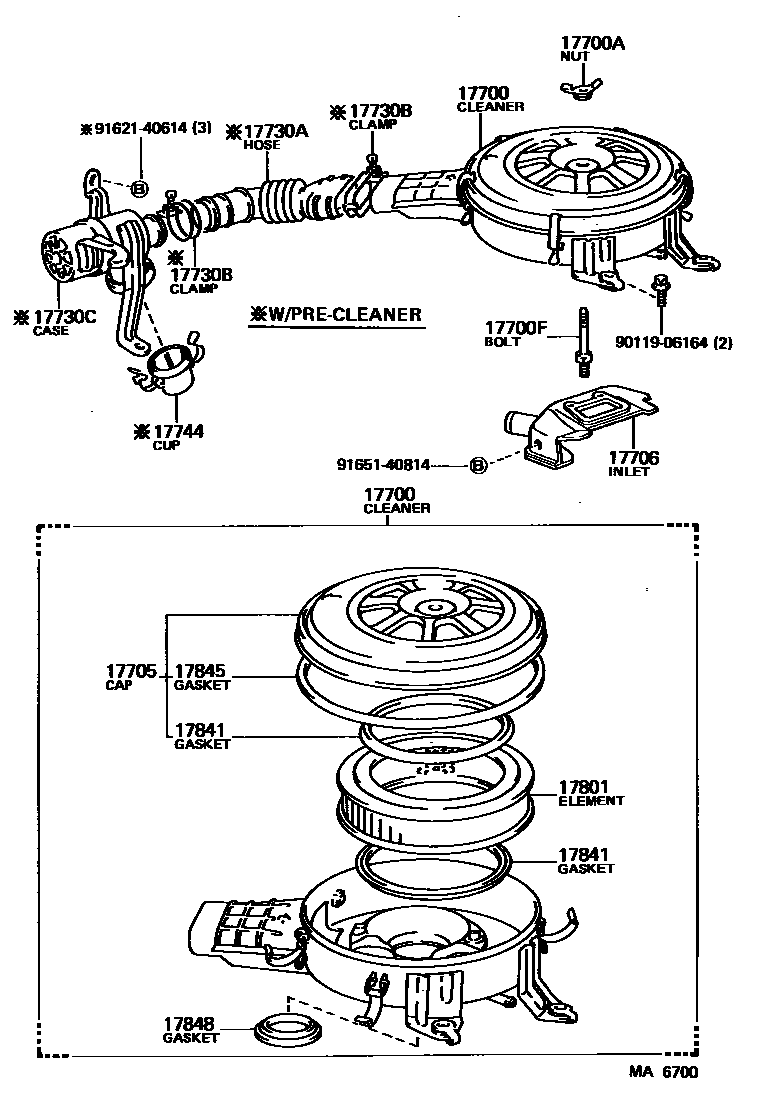

AIR CLEANER
17700CLEANER ASSY, AIR
W/HEADLAMP CLEANER
W/HOT AIR INTAKE
17700ANUT, WING(FOR AIR CLEANER)
17700FBOLT, STUD(FOR AIR CLEANER SETTING)
17705CAP SUB-ASSY, AIR CLEANER
W/HEADLAMP CLEANER
17730AHOSE, PRECLEANER
W/PRE-CLEANER
17730BCLAMP, HOSE(FOR PRECLEANER HOSE)
AIR CLEANER SIDE
PRE-CLEANER SIDE
17730CCASE, PRECLEANER
W/PRE-CLEANER
17744CUP, PRECLEANER
W/PRE-CLEANER
17801ELEMENT SUB-ASSY, AIR CLEANER FILTER
17841GASKET, FILTER ELEMENT
17845GASKET, AIR CLEANER CAP
*G,L=1060
17848GASKET, AIR CLEANER TO CARBURETOR
sub17848-10020
9011906164
main90119-06164
9162140614
main91621-40614
9165140814
main91651-40814
16 parts on this diagram · 5 diagrams in section
