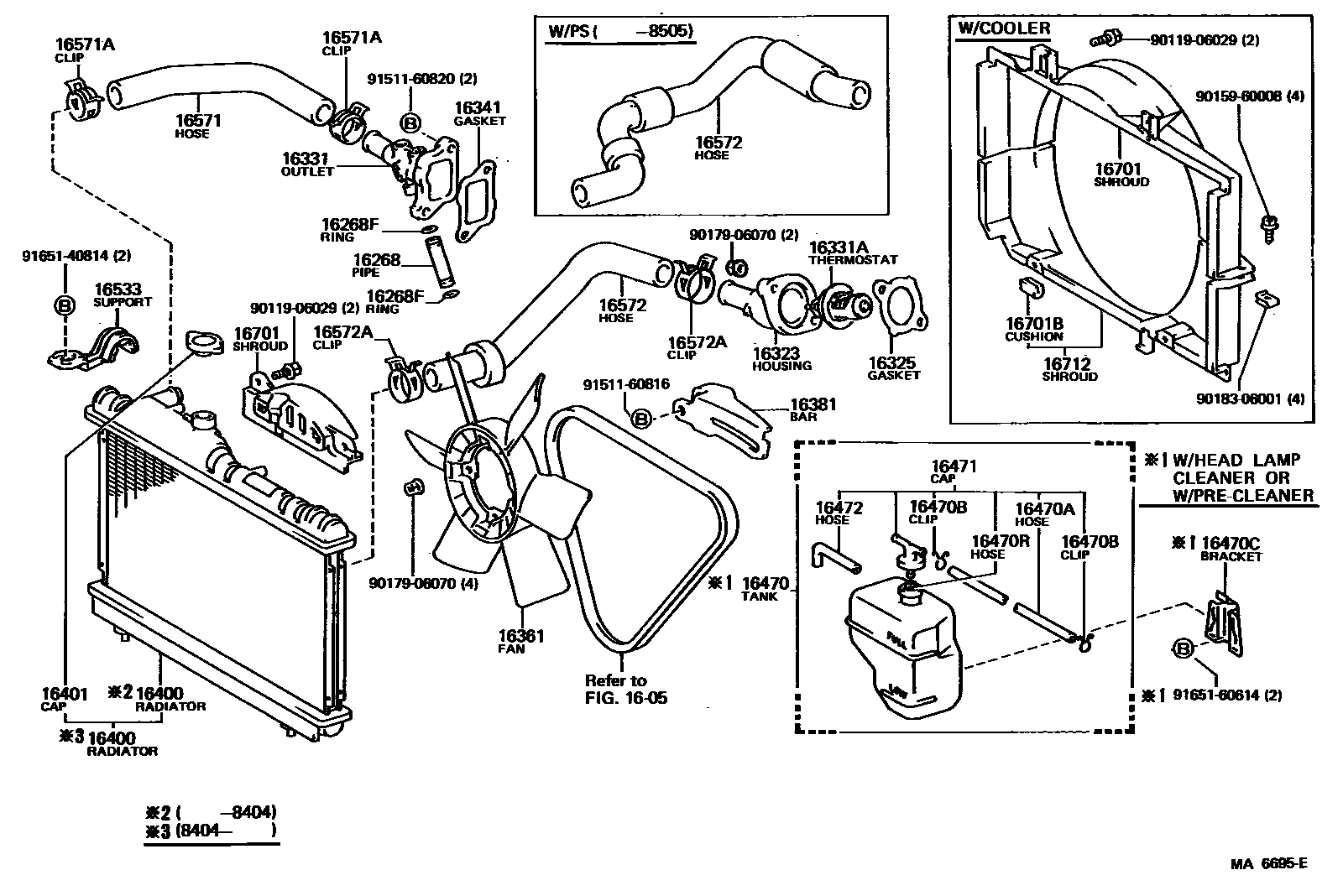

RADIATOR & WATER OUTLET

0001 1 0002 1 0003 1

1605V-BELT

→ Go to FIG 16-05

16268PIPE, WATER BY-PASS, NO.1

main16268-15010i4A,4AC..AE86198305-198503

main16268-15011i4A,4AC..AE86198503-198704

main16268-16010i4AG#..AE86198308-198504

main16268-16011i4AG#..AE86198504-198707

16268FRING, O(FOR WATER BY-PASS PIPE)

main96711-24013×2i4A,4AC,4AG#..AE86198305-198707

16323HOUSING, WATER INLET

main16323-15020i4A,4AC..AE86198305-198704

main16323-16020i4AG#..AE86198308-198707

16325GASKET, WATER INLET HOUSING, NO.1

main16325-70021i4A,4AC,4AG#..AE86198305-198707

16331OUTLET, WATER

main16331-15040i4A..AE86..4FC198305

main16331-15050i4A,4AC..AE86..5F198305

main16331-16020i4AGE..AE86198308-198707

main16331-16040i4AGEC..AE86198502

16331ATHERMOSTAT

main90916-03046i4A,4AC,4AG#..AE86198305-198707

*WAX 82-95

16341GASKET, WATER OUTLET

main16341-15011i4A,4AC..AE86198305

main16341-16010i4AG#..AE86198308-198701

main16341-16020i4AG#..AE86198701-198707

16361FAN

main16361-16010i4A,4AC,4AG#..AE86198305-198707

16381BAR, FAN BELT ADJUSTING

main16381-15030i4A,4AC..AE86198305-198704

main16381-16010i4AG#..AE86198308-198707

main88688-12180i4A,4AC..AE86..ARL,GEN198305-198704

W/COOLER

16400RADIATOR ASSY

main16400-15210i4A,4AC,4AG#..AE86..5F198404-198707

main16400-15231i4A..AE86..4FC198404-198704

main16410-15210i4A#..AE86..5F198305-198404

main16410-15231i4A..AE86..4FC198305-198404

16401CAP SUB-ASSY, RADIATOR

main16401-15210i4A,4AC,4AG#..AE86..5F198310-198707

TOYO RADIATOR

main16401-63010i4A,4AC,4AG#..AE86198305-198707

DENSO

main16401-71010i4A#..AE86..5F198305-198310

TOYO RADIATOR

16470TANK ASSY, RADIATOR RESERVE

main16470-16010i4AGE..AE86198308-198707

main16470-16040i4AGEC..AE86198502-198704

16470AHOSE OR PIPE(FOR RADIATOR RESERVE TANK)

main90099-33534i4A..AE86198305-198704

L=1000,W/PRE-CLEANER

16470BCLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE)

main90467-11085×2i4A..AE86198305-198704

W/PRE-CLEANER

16470CBRACKET(FOR RADIATOR RESERVE TANK)

main16611-16010i4AG#..AE86198308-198707

16470RHOSE, NO.2(FOR RADIATOR RESERVE TANK)

main90445-12078i4A,4AG#..AE86198604-198707

L=130

16471CAP SUB-ASSY, RESERVE TANK

main16405-16010i4AC..AE86..SDZ198305-198502

W/HEAD LAMP CLEANER

main16405-16030i4AGEC..AE86198502-198704

16472HOSE, BREATHER

main85338-12020i4AG#..AE86198308-198707

16533SUPPORT, RADIATOR, UPPER

main16505-15030×2i4A,4AGE..AE86..GEN,ME198305-198707

main16533-16010×2i4AG#..AE86..EUR198308-198704

16571HOSE, RADIATOR, INLET

main16571-15110i4A,4AC..AE86198305-198505

main16571-15130i4A..AE86198505-198704

main16571-16010i4AG#..AE86198308-198704

16571ACLAMP OR CLIP, HOSE(FOR RADIATOR INLET)

main90467-34001i4A,4AC..AE86; 4AG#..AE86198408-198704

ENGINE SIDE

main90467-34002i4AG#..AE86198408-198601

RADIATOR SIDE

main90467-34003i4AG#..AE86198601-198707

RADIATOR SIDE

16572HOSE, RADIATOR, OUTLET

main16572-15160i4A,4AC..AE86198305-198704

main16572-15170i4AC..AE86..ARL198305-198505

W/PS

main16572-16010i4AG#..AE86198308-198707

16572ACLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)

main90467-34001i4A,4AC,4AG#..AE86198305-198704

RADIATOR SIDE

main90467-34002i4A,4AC,4AG#..AE86198305-198601

ENGINE SIDE

main90467-34003i4A,4AG#..AE86198601-198707

ENGINE SIDE

16701SHROUD SUB-ASSY, FAN

main16711-15120i4A,4AC,4AGE..AE86..ARL,GEN,ME198305-198707

W/COOLER

main16711-15130i4A,4AC..AE86198305-198704

16701BCUSHION, FAN SHROUD

main90541-11002×2i4A,4AC,4AGE..AE86..ARL,GEN,ME198305-198707

W/COOLER

16712SHROUD, FAN, NO.2

main16712-15030i4A,4AC,4AGE..AE86..ARL,GEN,ME198305-198707

W/COOLER

9011906029

main90119-06029

9015960008

main90159-60008

9017906070

main90179-06070

9018306001

main90183-06001

9151160816

main91511-60816

9151160820

main91511-60820

9165140814

main91651-40814

9165160614

main91651-60614

35 parts on this diagram · 3 diagrams in section
