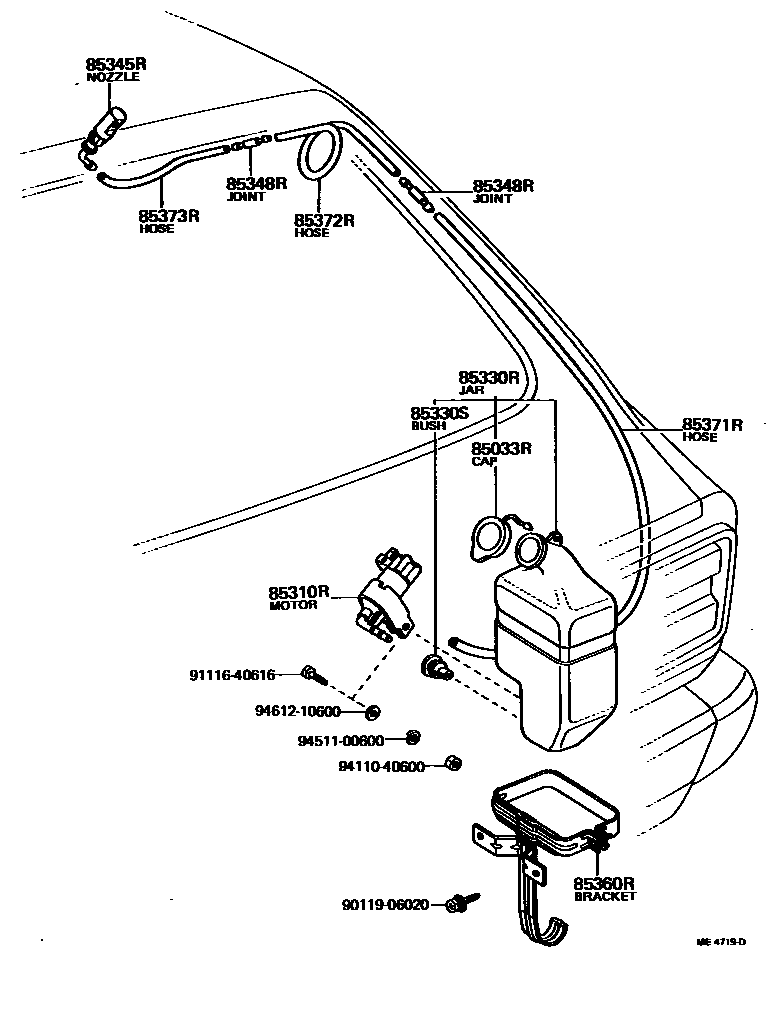

REAR WASHER

0001 1 0002 1

85033RCAP ASSY, REAR WASHER

main85033-36120iKE36,TE51..EUR,GEN,SA197508-197701

85310RMOTOR ASSY, REAR WASHER

main85310-20100iKE55,TE51;KE50..RHD;KE50..LHD..K40197706-197908

main85310-23010iKE36,TE51..EUR,GEN,SA197508-197701

85330RJAR ASSY, REAR WASHER

main85330-23010iKE36,TE51..EUR,GEN,SA197508-197701

main85330-23011iKE50,TE51..EUR,GEN197701-197706

main90099-32089iKE36..WG197701-198002

85330SBUSH, REAR WASHER JAR

main90099-32057iKE36,TE51..EUR,GEN,SA197508-197701

main90099-32089iKE50,TE51..EUR,GEN197701-197706

85345RNOZZLE, REAR WASHER

main85035-12050iKE55,TE51;KE50..RHD;KE50..LHD..K40197706-197908

main85035-21010iKE36..WG197701-197810

main85035-91255iKE36..WG197810-198002

85348RJOINT, REAR WASHER HOSE, NO.1

main85355-87201iKE36,TE51..EUR,GEN,SA197508-197701

85360RBRACKET ASSY, REAR WASHER

main85360-13010iKE36..EUR,GEN,SA197508-197701

main85360-23010iKE50,TE51..EUR,GEN197701-197706

85371RHOSE, REAR WASHER (FROM MOTOR TO JOINT)

main90446-06286iKE36..WG197701-198002

L=1000(*H,L=400)

main90446-06302iKE50,TE51..EUR,GEN197701-197706

L=1100

85372RHOSE, REAR WASHER (FROM JOINT TO JOINT OR NOZZLE)

main90099-33286iKE50,TE51..EUR,GEN197701-197706

L=1000(*H,L=160)

main90445-07060iKE55,TE51;KE50..RHD;KE50..LHD..K40197802-197908

L=1000(*H,L=280)

85373RHOSE, REAR WASHER (FROM JOINT TO NOZZLE)

main90446-06236iKE55,TE51;KE50..RHD;KE50..LHD..K40197706-197908

L=1000(*H,L=450)

main90446-07001iKE36..WG197701-198002

L=1800

9011906020

main90119-06020

9111640616

main91116-40616

9411040600

main94110-40600

9451100600

main94511-00600

9461210600

main94612-10600

15 parts on this diagram · 2 diagrams in section
