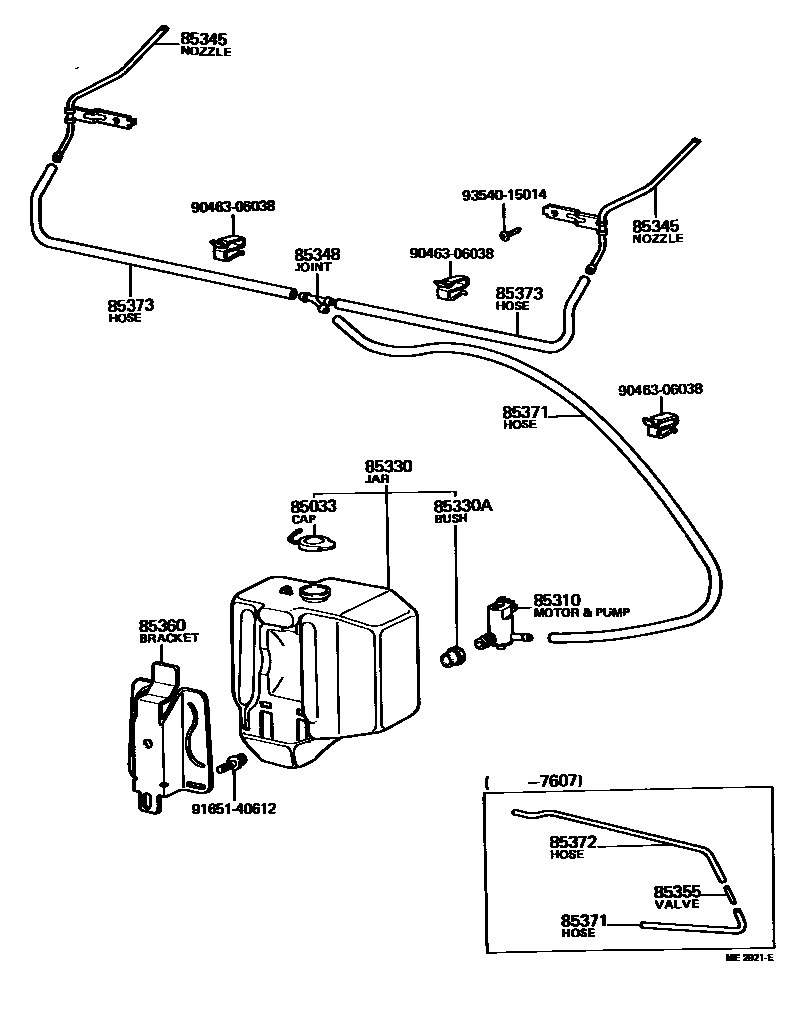

WINDSHIELD WASHER

85033CAP ASSY, WINDSHIELD WASHER

main85332-30050iKE30,35,36,50,TE3#,47,51197408-198107

85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER

main85310-12020iKE3#,50,TE3#,47,51197408-197701

main85310-20100iKE3#,5#,TE3#,47,51197701-198107

85330JAR ASSY, WINDSHIELD WASHER

main85330-12030iKE3#,50,TE3#,47,51..RHD197408-197701

main85330-12050iKE3#,50,TE47,51..LHD197408-197701

main85330-12051iKE30,35,36,50,TE47,51..LHD197701-198002

main85330-20180iKE3#,5#,TE3#,47,51..RHD197701-198107

85330ABUSH, WINDSHIELD WASHER JAR

main90099-32057iKE3#,50,TE3#,47,51197408-197701

main90099-32089iKE30,35,36,50,TE3#,47,51197701-198107

85345NOZZLE, WINDSHIELD WASHER

main85341-12010iKE3#,55,TE3#..DV,HT,SED,WG197408-198107

RH

main85341-12020iKE3#,55,TE3#..DV,HT,SED,WG197408-198107

LH

main85341-12050iKE5#,TE47,51..CP,LB197408-197908

RH

main85341-12060iKE5#,TE47,51..CP,LB197408-197908

LH

85348JOINT, WINDSHIELD WASHER HOSE, NO.1

main85355-14010iKE3#,5#,TE3#,47,51197408-198107

85355VALVE, WINDSHIELD WASHER HOSE

main85031-14020iKE3#,50,TE3#,47,51197408-197607

85360BRACKET ASSY, WINDSHIELD WASHER

main53752-12020iKE3#,TE47197408-197502

main53752-12030iKE3#,5#,TE3#,47,51197701-198107

85371HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)

main90099-33242iKE3#,50,TE47,51..LHD197408-197607

L=1000(*H,L=280)

main90099-33289iKE3#,50,TE3#,47,51..RHD197408-197607

L=1000(*H,L=160)

main90099-33315iKE30,35,36,50,TE3#,47,51197607-198107

L=1450(*H,L=900)

85372HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1

main90099-33289iKE3#,50,TE47,51..LHD197408-197607

L=1000(*H,L=160)

main90446-06236iKE3#,50,TE3#,47,51..RHD197408-197607

L=1000(*H,L=450)

85373HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)

main90099-33242×2iKE30,35,36,50,TE3#,47,51197408-198107

L=1000(*H,L=280)

9046306038

main90463-06038

9165140612

main91651-40612

9354015014

main93540-15014

14 parts on this diagram · 1 diagram in section
