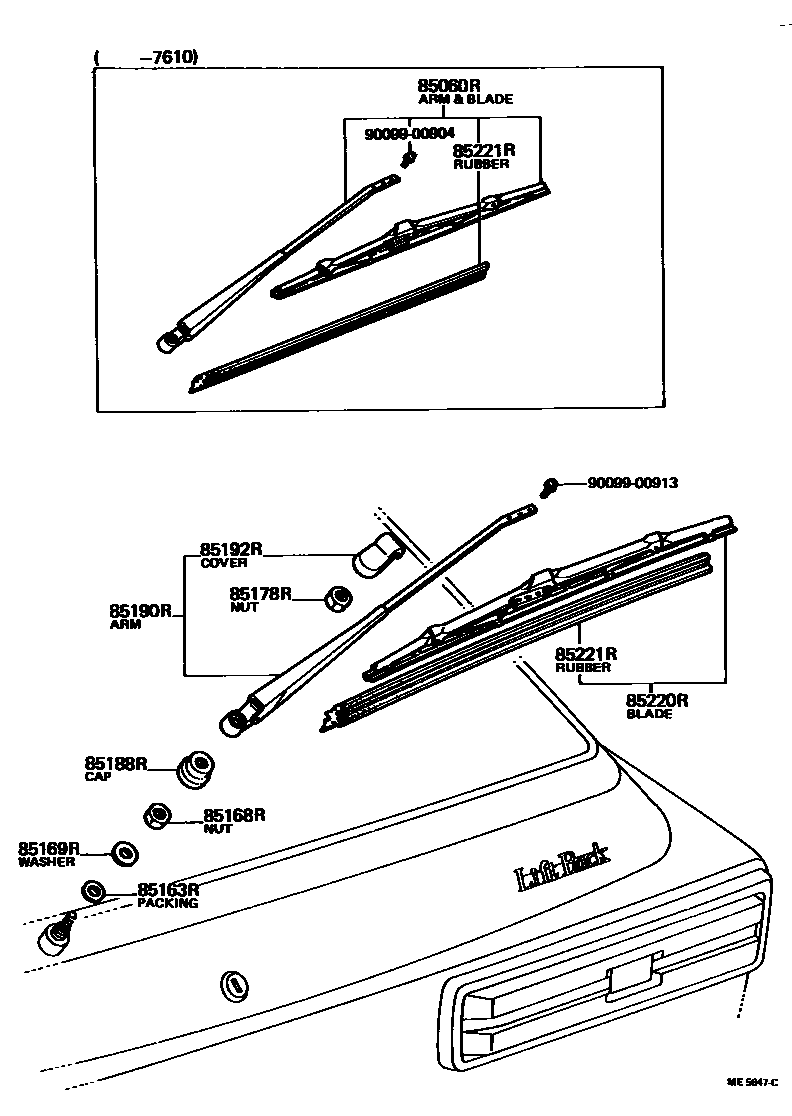

REAR WIPER

0001 1 0002 1 0003 1 0004 1

85060RARM AND BLADE ASSY, REAR WIPER

main85060-12120iTE51197603-197610

sub85220-12200

sub85190-12340

sub90099-00904

main85060-13010iKE36..EUR,GEN,SA197508-197610

sub85220-13010

sub85190-13010

sub90099-00904

85163RPACKING, REAR WIPER PIVOT, NO.1

main85174-21010iTE51197603-197908

main85179-13010iKE36..EUR,GEN,SA197508-197709

main85179-13011iKE36..WG197709-198002

85168RNUT, REAR WIPER LINK PIVOT, NO.1

main85186-13010iKE36..WG197508-198002

main85186-13011iKE36..WG197709-197810

sub85186-13010

main90099-05120iKE50,TE51..EUR,GEN197603-197908

85169RWASHER, REAR WIPER LINK PIVOT, NO.1

main90099-01415iTE51197603-197709

sub90099-01435

main90099-01435iKE55,TE51;KE50..RHD;KE50..LHD..K40197709-197908

85178RNUT (FOR REAR WIPER ARM SETTING)

main90176-06001iKE36..WG197511-197709

main90176-06017iKE36197508-197511

sub90176-06001

main90179-06158iKE55,TE51;KE50..RHD;KE50..LHD..K40197709-198002

85188RCAP, REAR WIPER PIVOT, NO.1

main85178-13010iKE36..WG197810-198002

main85178-21011iKE55;KE50,TE51..A40,K40,T40,T50197805-197908

85190RARM ASSY, REAR WIPER

main85190-12340iTE51197610-197709

sub85190-12H91

main85190-12341iKE55,TE51;KE50..RHD;KE50..LHD..K40197709-197908

main85190-13010iKE36..EUR,GEN,SA197610-197709

sub85190-13011

main85190-13011iKE36..WG197709-198002

85192RCOVER, REAR WIPER ARM

main85192-12010iKE36..WG197709-198002

85220RBLADE ASSY, REAR WIPER

main85220-10080iKE36..WG197709-198002

sub85222-68011

sub85230-14020

main85220-12200iKE50,TE51..EUR,GEN197610-197710

sub85220-14110

main85220-13010iKE36..WG197610-197709

sub85220-10080

main85220-14110iKE55,TE51;KE50..RHD;KE50..LHD..K40197710-197908

sub85220-22370

85221RBLADE, REAR WIPER

main85221-10040iKE36..WG197508-198002

sub85214-68011

sub85221-10H00

main85221-20060iKE50,TE51..EUR,GEN197603-197908

sub85221-14H90

9009900904

main90099-00904

9009900913

main90099-00913

12 parts on this diagram · 4 diagrams in section
