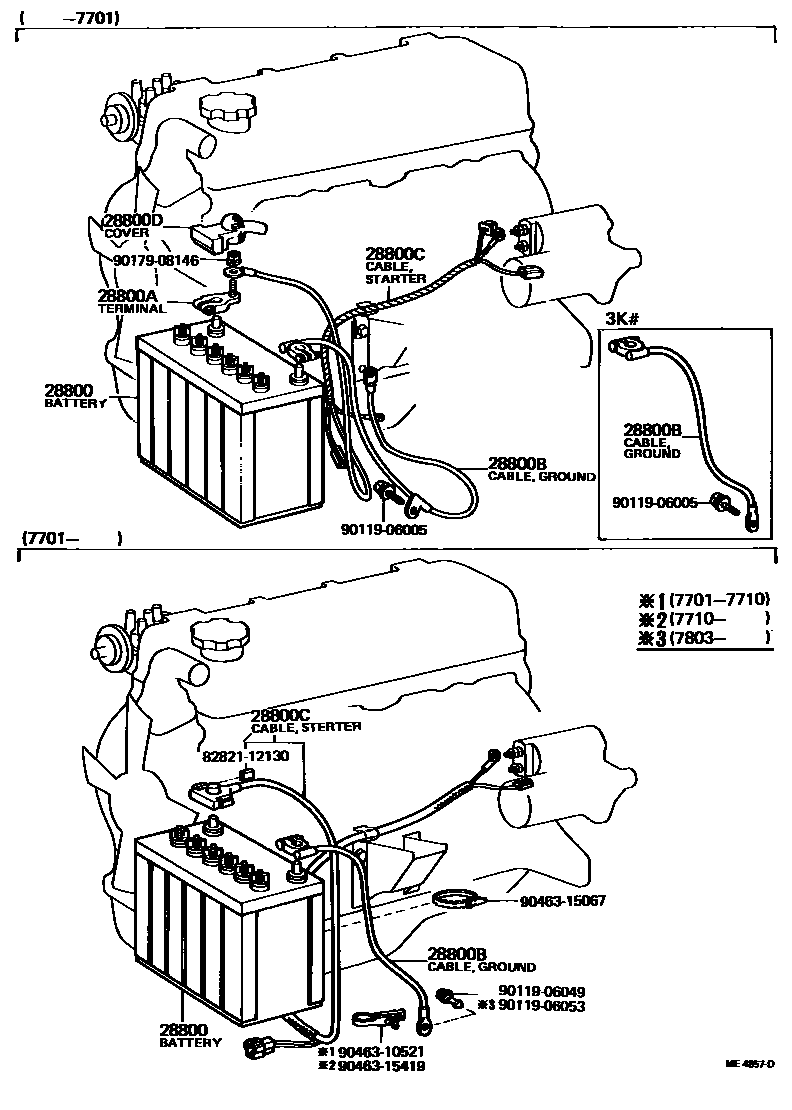

BATTERY & BATTERY CABLE

28800BATTERY

main28800-10021i3KH,3KB..KE3#..GEN197408-197701

NS40L

main28800-26040i2T#..TE47,51..GEN197701-197908

34B19L,NS40ZAL

main28800-30100i3KH,2T#..KE36,TE3#,47,51197408-197610

NS40ZL

main28800-30131i3K#,2T#..KE3#,50,TE47,51..ARL,EUR,GEN197408-197701

55D26R,N50ZL

main28800-31031i3KH,3KB,4KC,2T#..KE3#,5#,TE47,51197408-198107

32C24L,N40L

28800ATERMINAL, BATTERY POSITIVE

main90982-05008i3KH,3KB,2T#..KE3#,TE3#,47197408-197512

NS40L,NS40ZL

main90982-05009i3K#,2T#..KE3#,TE47..EUR,GEN197408-197512

N50ZL,N40L

main90982-05012i3KH,3KB,2T#..KE3#,50,TE3#,47,51197512-197701

NS40L,NS40ZL,NS40ZAL

main90982-05013i3K#,2T#..KE3#,50,TE47,51..ARL,EUR,GEN197512-197701

N50ZL,N40L

28800BCABLE, BATTERY TO GROUND

main90982-02097i2T#..TE47,51..GEN197803-198004

NS40ZAL

main90982-02098i2T#..TE47,51197408-197701

N40L,N50ZL

main90982-02099i3KH,3KB..KE30,35,36,50..GEN197803-198107

main90982-02100i3K#..KE3#,50..ARL,EUR,GEN197408-197701

N40L,N50ZL

main90982-02126i3KH,3KB,2T#..KE3#,50,TE47,51..GEN197701-197803

NS40L,NS40ZAL

main90982-02127i3K#,2T#..KE3#,50,TE3#,47,51197701-197803

N40L,N50ZL

28800CCABLE, BATTERY TO STARTER(FOR BATTERY TO MAIN SWITCH)

main82021-12030i3K#,2T#..KE3#,TE3#,47197408-197511

main82021-12050i3KH,3KB..KE3#,50..GEN197701-197805

NS40L

main82021-12071i2T#..TE3#,47,51197511-197701

main82021-12080i3KC,3KH..KE3#,50197511-197701

main82021-12090i3K#..KE3#,50197701-197805

N40L,N50ZL

main82021-12091i3K#,4KC..KE3#,5#197805-198107

N40L,N50ZL

main82021-12120i2T#..TE47,51..GEN197701-197908

NS40ZAL

main82021-12130i2T#..TE3#,47,51197701-198004

N40L,N50ZL

main82021-12150i3KH,3KB..KE30,35,36,50..GEN197805-198107

NS40L

28800DCOVER, CONNECTOR(FOR BATTERY TERMINAL)

main82821-12030i3K#,2T#..KE3#,TE3#,47197408-197511

main82821-12040i3KC,3KH..KE3#,50197511-197701

8282112130RETAINER, HEADLAMP HARNESS

main82821-12130

9011906005

main90119-06005

9011906049

main90119-06049

9011906053

main90119-06053

9017908146

main90179-08146

9046310521

main90463-10521

9046315067

main90463-15067

9046315419

main90463-15419

13 parts on this diagram · 1 diagram in section
