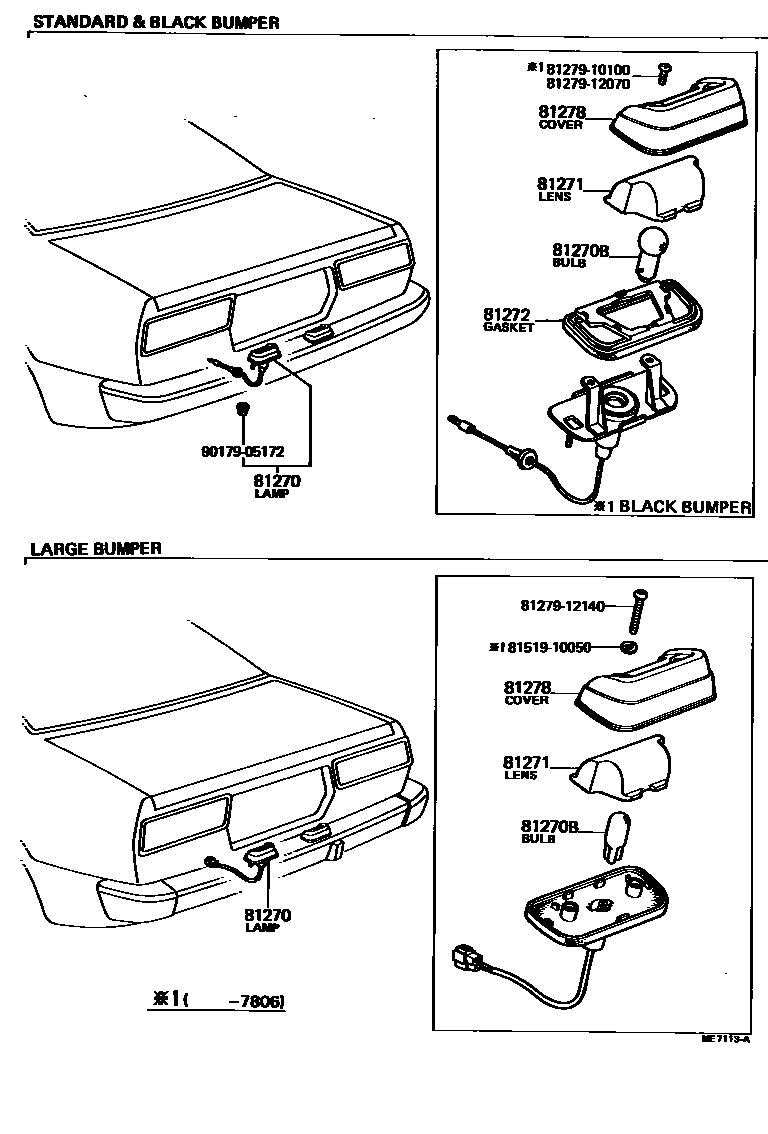

REAR LICENSE PLATE LAMP

0001 1 0002 1

81270LAMP ASSY, LICENSE PLATE

main81270-12140×2iKE35..RHD..K40..DLX197811-197908

W/LARGE BUMPER,THAILAND SPEC

main81270-19245×2iKE30,35; KE55,TE3#,47197805-197904

main81270-19255iKE36,38197408-198107

main81270-19315×2iKE5#,TE51..LB197603-197908

main81270-19485×2iKE30..GEN197805-198107

W/BLACK BUMPER

main99132-12050×2iKE35..LHD..K40..SR..GEN197811-197908

W/LARGE BUMPER,PHILIPPINE SPEC

81270BBULB (FOR LICENSE PLATE LAMP)

main99132-11050×2iKE3#,5#,TE3#,47,51197408-197904

12V 5W,12V 5W

main99132-12050×2iKE30..GEN; TE3#197904-198107

12V 5W,12V 5W,W/LARGE BUMPER

81271LENS, LICENSE PLATE LAMP

main81271-12070×2iKE30,35,TE3#,47197408-197805

main81271-12140×2iKE30..GEN; TE3#197904-198107

W/LARGE BUMPER

main81271-13070×2iKE36,38197408-198107

main81271-30080×2iKE5#,TE51..LB197603-197908

81272GASKET, LICENSE PLATE LAMP LENS

main81272-12070×2iKE30,55..(HT,SED)..(ARL,EUR,GEN)197805-198107

W/BLACK BUMPER

main81272-13070×2iKE36,38197408-198107

main81272-14050×2iKE5#,TE51..LB197603-197908

81278COVER, LICENSE PLATE LAMP

main81276-12070×2iKE30..RHD;KE55,TE3#,47;KE30..LHD..K40..GEN;KE30..LHD..K40..EUG;KE30..LHD..(A20,K50); KE35197805-197904

main81276-12140×2iKE30..GEN; TE3#197904-198107

W/LARGE BUMPER

main81276-12160×2iKE30..EUR,GEN197805-198107

W/BLACK BUMPER

main81276-14050×2iKE5#,TE51..LB197603-197908

8127910100WASHER, SIDE TURN SIGNAL LAMP

main81279-10100

8127912070WASHER, SIDE TURN SIGNAL LAMP

main81279-12070

8127912140WASHER, SIDE TURN SIGNAL LAMP

main81279-12140

8151910050BRACKET, FRONT TURN SIGNAL LAMP, RH

main81519-10050

9017905172

main90179-05172

10 parts on this diagram · 2 diagrams in section
