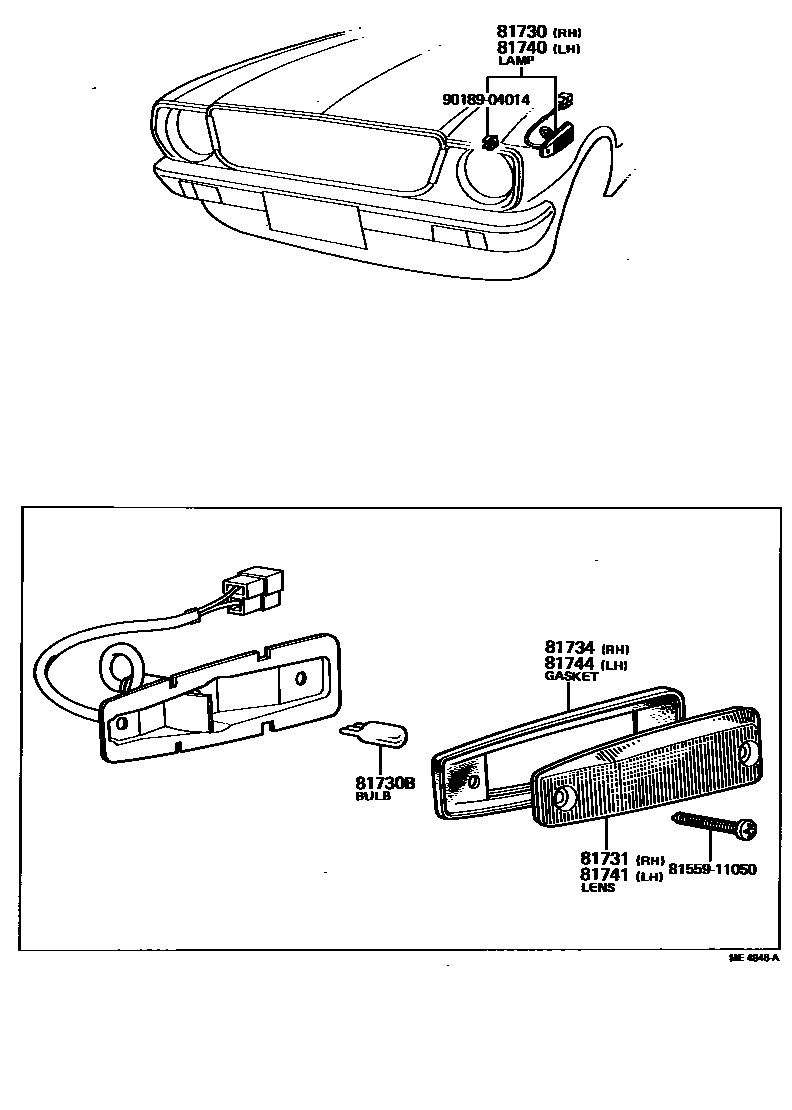

SIDE TURN SIGNAL LAMP & OUTER MIRROR LAMP

0001 1 0002 1

81730LAMP ASSY, SIDE TURN SIGNAL, RH

main81730-19215iKE3#,55,TE3#,47..CP,DV,HT,SED,WG197408-198107

main81730-19255iKE5#,TE51..LB197603-197908

main81730-19275iKE50,TE51197607-197908

WEST GERMANY SPEC

81730BBULB (FOR SIDE TURN SIGNAL LAMP)

main99132-11050×2iKE50,TE51197607-197908

12V 5W,12V 5W,WEST GERMANY SPEC

main99132-12050×2iKE3#,55,TE3#,47..CP,DV,HT,SED,WG197408-198107

12V 5W,12V 5W

main99132-13060×2iKE5#,TE51..LB197603-197908

12V 6W,12V 6W

81731LENS, SIDE TURN SIGNAL LAMP, RH

main81731-12080iKE3#,55,TE3#,47..CP,DV,HT,SED,WG197408-198107

main81731-14050iKE50,TE51197607-197908

WEST GERMANY SPEC

main81731-14060iKE5#,TE51..LB197603-197908

81734GASKET, SIDE TURN SIGNAL LAMP BODY, RH

main81732-12080iKE3#,55,TE3#,47..CP,DV,HT,SED,WG197408-198107

main81734-12100iKE5#,TE51..LB197603-197908

main81734-12140iKE50,TE51197607-197908

WEST GERMANY SPEC

81740LAMP ASSY, SIDE TURN SIGNAL, LH

main81740-19195iKE3#,55,TE3#,47..CP,DV,HT,SED,WG197408-198107

main81740-19235iKE5#,TE51..LB197603-197908

main81740-19255iKE50,TE51197607-197908

WEST GERMANY SPEC

81741LENS, SIDE TURN SIGNAL LAMP, LH

main81741-12080iKE3#,55,TE3#,47..CP,DV,HT,SED,WG197408-198107

main81741-14050iKE50,TE51197607-197908

WEST GERMANY SPEC

main81741-14060iKE5#,TE51..LB197603-197908

81744GASKET, SIDE TURN SIGNAL LAMP BODY, LH

main81742-12080iKE3#,55,TE3#,47..CP,DV,HT,SED,WG197408-198107

main81744-12100iKE5#,TE51..LB197603-197908

main81744-12140iKE50,TE51197607-197908

WEST GERMANY SPEC

8155911050MOULDING, REAR COMBINATION LAMP, RH

main81559-11050

9018904014

main90189-04014

9 parts on this diagram · 2 diagrams in section
