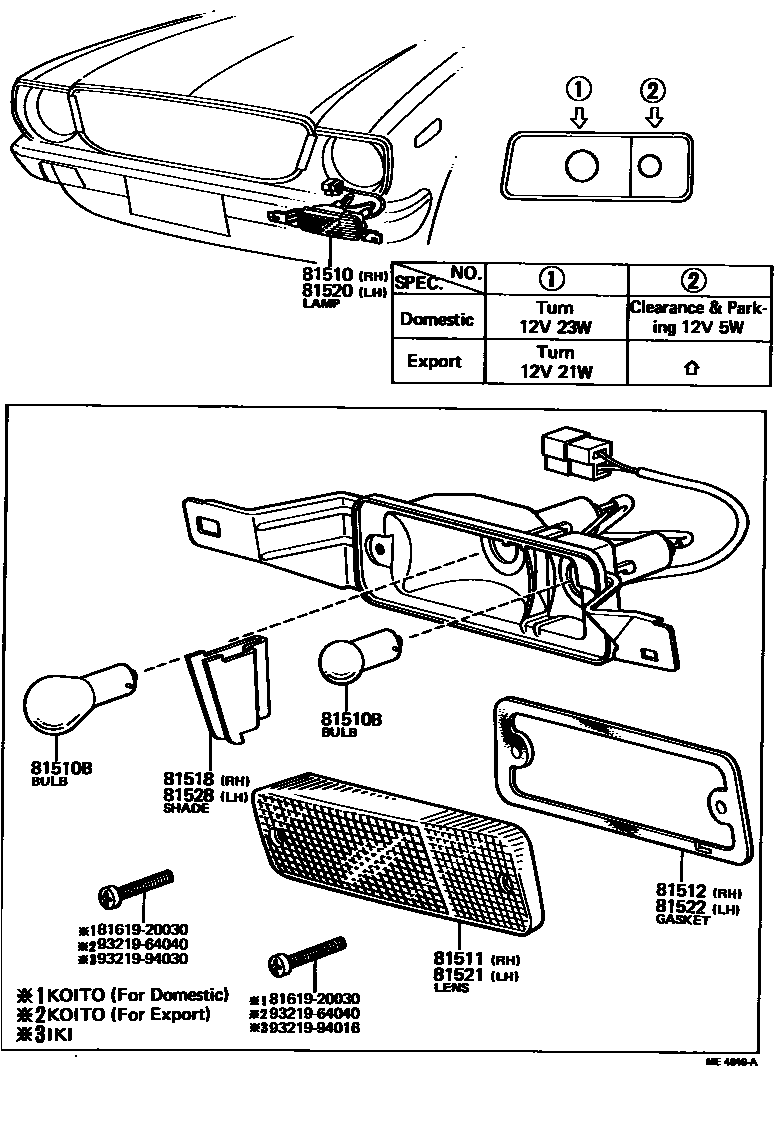

FRONT TURN SIGNAL LAMP

0001 1 0002 1 0003 1

81510LAMP ASSY, FRONT TURN SIGNAL, RH

main81510-12220iKE3#,5#,TE3#,51197408-197904

AMBER-CLEAR

main81510-19445iTE47197408-197902

AMBER-CLEAR

main81510-19475iKE35..LHD..K40..SR..GEN; KE35..RHD..K40..DLX197811-197908

W/LARGE BUMPER,PHILIPPINE SPEC; W/LARGE BUMPER,THAILAND SPEC

81510BBULB (FOR FRONT TURN SIGNAL LAMP)

main99132-11050×2iKE3#,5#,TE51; KE30..GEN; TE3#197904-198107

12V 5W,12V 5W; 12V 5W,12V 5W,W/LARGE BUMPER

main99132-11210×2iKE3#,5#,TE51197904-198107

12V 21W,12V 21W

main99132-11230×2iKE35..LHD..K40..SR..GEN; KE35..RHD..K40..DLX197811-197908

12V 23W,12V 23W,PHILIPPINE SPEC; 12V 23W,12V 23W,THAILAND SPEC

81511LENS, FRONT TURN SIGNAL LAMP, RH

main81511-12180iTE47197408-197902

AMBER-CLEAR

main81511-12220iKE3#,5#,TE3#,51197408-197904

AMBER-CLEAR

main81511-12230iKE30..GEN; TE3#197904-198107

AMBER,W/LARGE BUMPER

81512GASKET, FRONT TURN SIGNAL LAMP LENS, RH

main81512-12160iKE3#,5#,TE51197904-198107

main81512-12180iTE47197408-197902

main81512-12230iKE30..GEN; TE3#197904-198107

W/LARGE BUMPER

81518SHADE, FRONT TURN SIGNAL LAMP, RH

main81517-12180iTE47197408-197902

main81517-12200iKE35..LHD..K40..SR..GEN; KE35..RHD..K40..DLX197811-197908

W/LARGE BUMPER,PHILIPPINE SPEC; W/LARGE BUMPER,THAILAND SPEC

main81517-12220iKE3#,5#,TE3#,51197408-197904

81520LAMP ASSY, FRONT TURN SIGNAL, LH

main81520-12210iKE3#,5#,TE3#,51197408-197904

AMBER-CLEAR

main81520-19445iTE47197408-197902

AMBER-CLEAR

main81520-19475iKE35..LHD..K40..SR..GEN; KE35..RHD..K40..DLX197811-197908

W/LARGE BUMPER,PHILIPPINE SPEC; W/LARGE BUMPER,THAILAND SPEC

81521LENS, FRONT TURN SIGNAL LAMP, LH

main81521-12170iTE47197408-197902

AMBER-CLEAR

main81521-12210iKE3#,5#,TE3#,51197408-197904

AMBER-CLEAR

main81521-12220iKE35..LHD..K40..SR..GEN; KE35..RHD..K40..DLX197811-197908

W/LARGE BUMPER,PHILIPPINE SPEC; W/LARGE BUMPER,THAILAND SPEC

81522GASKET, FRONT TURN SIGNAL LAMP LENS, LH

main81512-12230iKE30..GEN; TE3#197904-198107

W/LARGE BUMPER

main81522-12150iKE3#,5#,TE51197904-198107

main81522-12170iTE47197408-197902

81528SHADE, FRONT TURN SIGNAL LAMP, LH

main81517-12200iKE30..GEN; TE3#197904-198107

W/LARGE BUMPER

main81527-12170iTE47197408-197902

main81527-12210iKE3#,5#,TE3#,51197408-197904

8161920030

main81619-20030

9321964040

main93219-64040

9321994016

main93219-94016

9321994030

main93219-94030

13 parts on this diagram · 3 diagrams in section
