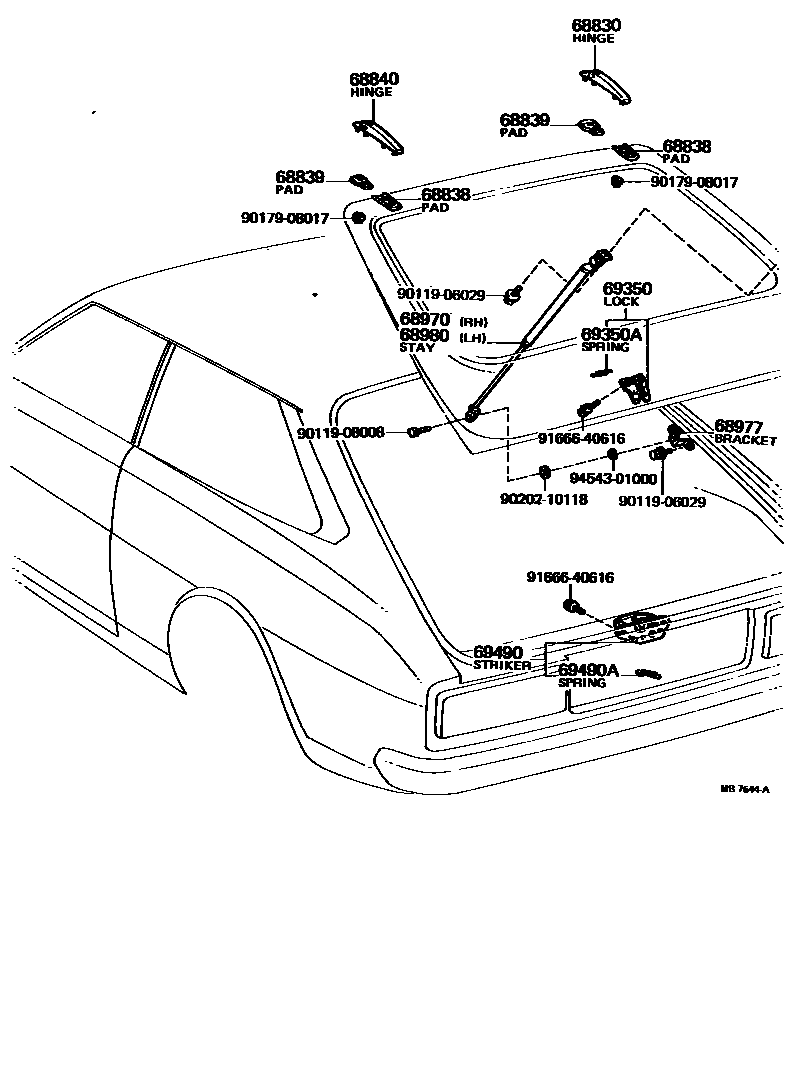

BACK DOOR LOCK & HANDLE

0001 1 0002 1

68830HINGE ASSY, BACK DOOR, RH

main68801-13040iKE36,38197408-198107

main68810-12010iKE5#,TE51..LB197603-197908

68838PAD, BACK DOOR HINGE, NO.1

main68863-12010×2iKE5#,TE51..LB197603-197908

68839PAD, BACK DOOR HINGE, NO.2

main68861-12020iKE5#,TE51..LB197603-197908

RH

main68862-12010iKE5#,TE51..LB197603-197908

LH

68840HINGE ASSY, BACK DOOR, LH

main68802-13040iKE36,38..RHD;KE36..LHD..GEN;KE36..LHD..EUG197408-198107

main68802-13070iKE36..WG..(EUR,GEN)197508-198107

W/RR WINDOW WIPER

main68820-12010iKE5#,TE51..LB197603-197908

68970STAY ASSY, BACK DOOR, RH

main68950-12010iKE5#,TE51..LB197603-197908

68977BRACKET, BACK DOOR STAY

main68955-12010iKE5#,TE51..LB197603-197908

68980STAY ASSY, BACK DOOR

main68950-12010iKE5#,TE51..LB197603-197908

69350LOCK ASSY, BACK DOOR

main69350-12010iKE5#,TE51..LB197603-197908

main69350-13030iKE36197408-197711

main69350-13031iKE36,38197711-198107

69350ASPRING(FOR BACK DOOR LOCK)

main90506-08107iKE5#,TE51..LB197603-197908

69490STRIKER ASSY, BACK DOOR LOCK

main69430-12010iKE5#,TE51..LB197603-197908

main69430-15010iKE36,38197711-198107

main69451-21010iKE36197408-197711

69490ASPRING(FOR BACK DOOR LOCK STRIKER)

main90501-07484iKE5#,TE51..LB197603-197908

COMPRESSION

9011906029

main90119-06029

9011908008

main90119-08008

9017908017

main90179-08017

9020210118

main90202-10118

9166640616

main91666-40616

9454301000

main94543-01000

17 parts on this diagram · 2 diagrams in section
