REAR DOOR PANEL & GLASS

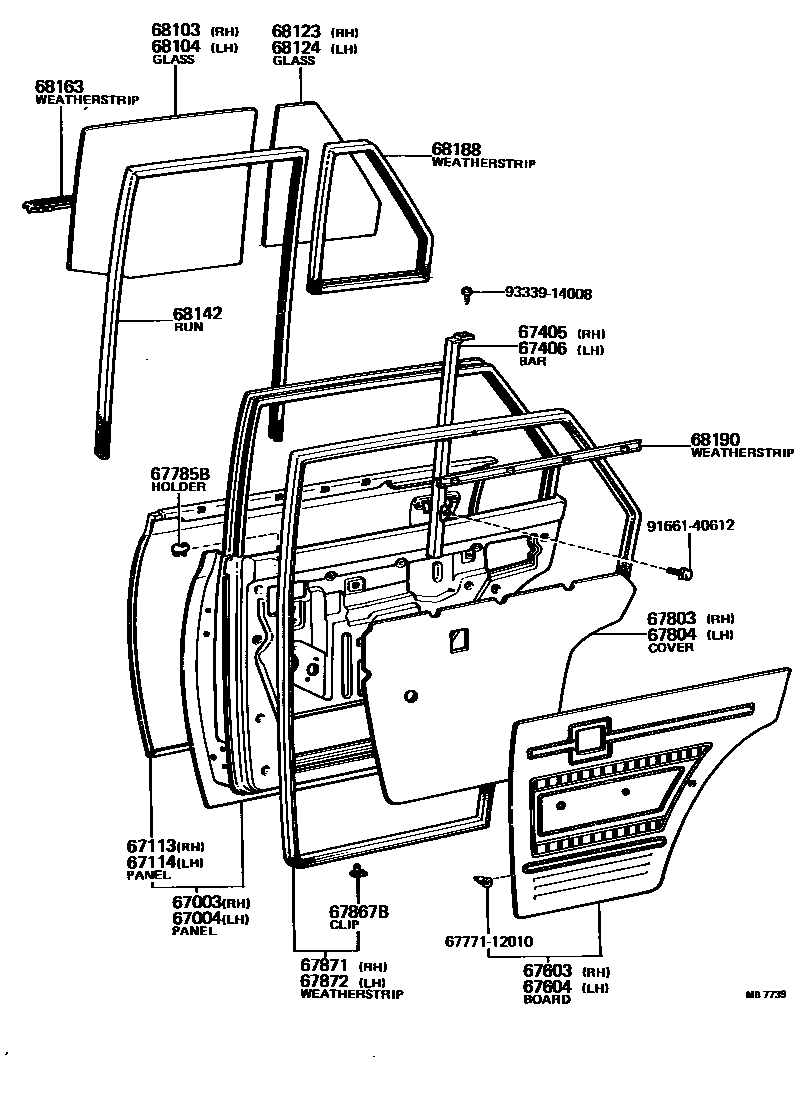

Parts diagram
67003PANEL SUB-ASSY, REAR DOOR, RH
main67003-12090i197408-197512
main67003-12091i197512-197805
main67003-12121i197610-197805
main67003-12130i197805-198002
main67003-12150i197805-198107
main67003-13030i197408-197512
main67003-13031i197512-197805
main67003-13051i197610-197805
main67003-13080i197805-198107
main67003-13100i197805-198107
67004PANEL SUB-ASSY, REAR DOOR, LH
main67004-12090i197408-197512
main67004-12091i197512-197805
main67004-12121i197610-197805
main67004-12130i197805-198107
main67004-12150i197805-198107
main67004-13030i197408-197512
main67004-13031i197512-197805
main67004-13051i197610-197805
main67004-13080i197805-198002
main67004-13100i197805-198107
67113PANEL, REAR DOOR, OUTER RH
main67113-12070i197408-198107
67114PANEL, REAR DOOR, OUTER LH
main67114-12070i197408-198107
67405BAR SUB-ASSY, REAR DOOR WINDOW DIVISION, RH
main67407-12060i197408-197805
main67407-12061i197805-198107
main67407-13010i197408-197805
main67407-13011i197805-198002
67406BAR SUB-ASSY, REAR DOOR WINDOW DIVISION, LH
main67408-12060i197408-197805
main67408-12061i197805-198107
main67408-13010i197408-197805
main67408-13011i197805-198002
67603BOARD SUB-ASSY, REAR DOOR TRIM, RH
main67630-12102-01i197811-197908
FULL TRIM,BLACK,BLACK,TRIM2#
main67630-12102-04i197811-197908
FULL TRIM,BLUE,BLUE,TRIM8#
main67630-12102-06i197701-198004
FULL TRIM,LIGHT BROWN,BROWN,TRIM4#
main67630-12160-01i197408-197701
BLACK,BLACK,TRIM2#
main67630-12160-06i197408-197701
BROWN,BROWN,TRIM4#
main67630-12160-08i197408-197701
IVORY,IVORY,TRIM0#
main67630-12161-01i197701-198107
BLACK,BLACK,TRIM2#
main67630-12161-04i197805-198107
BLUE,BLUE,TRIM8#
main67630-12161-06i197701-198107
LIGHT BROWN,BROWN,TRIM4#
main67630-12170-01i197408-197701
BLACK,BLACK,TRIM2#
main67630-12170-06i197408-197701
BROWN,BROWN,TRIM4#
main67630-12170-08i197408-197701
IVORY,IVORY,TRIM0#
main67630-12171-01i197701-197904
BLACK,BLACK,TRIM2#
main67630-12171-06i197904-198107
LIGHT BROWN,BROWN,TRIM4#
main67630-12171-14i197805-198107
BLUE,BLUE,TRIM8#
main67630-13020-01i197408-197701
BLACK,BLACK,TRIM2#
main67630-13020-06i197408-197701
BROWN,BROWN,TRIM4#
main67630-13020-08i197408-197701
IVORY,IVORY,TRIM0#
main67630-13021-01i197701-197808
BLACK,BLACK,TRIM2#
main67630-13021-06i197808-198107
LIGHT BROWN,BROWN,TRIM4#
main67630-13021-14i197808-198107
BLUE,BLUE,TRIM8#
67604BOARD SUB-ASSY, REAR DOOR TRIM, LH
main67640-12100-01i197408-197701
BLACK,BLACK,TRIM2#
main67640-12100-06i197408-197701
BROWN,BROWN,TRIM4#
main67640-12100-08i197408-197701
IVORY,IVORY,TRIM0#
main67640-12101-01i197701-198107
BLACK,BLACK,TRIM2#
main67640-12101-04i197805-198107
BLUE,BLUE,TRIM8#
main67640-12101-06i197701-198107
LIGHT BROWN,BROWN,TRIM4#
main67640-12110-01i197408-197701
BLACK,BLACK,TRIM2#
main67640-12110-06i197408-197701
BROWN,BROWN,TRIM4#
main67640-12110-08i197408-197701
IVORY,IVORY,TRIM0#
main67640-12111-01i197701-197904
BLACK,BLACK,TRIM2#
main67640-12111-06i197808-198107
LIGHT BROWN,BROWN,TRIM4#
main67640-12111-14i197808-198107
BLUE,BLUE,TRIM8#
main67640-12122-01i197701-198004
FULL TRIM,BLACK,BLACK,TRIM2#
main67640-12122-04i197811-197908
FULL TRIM,BLUE,BLUE,TRIM8#
main67640-12122-06i197811-197908
FULL TRIM,LIGHT BROWN,BROWN,TRIM4#
main67640-13020-01i197408-197701
BLACK,BLACK,TRIM2#
main67640-13020-06i197408-197701
BROWN,BROWN,TRIM4#
main67640-13020-08i197408-197701
IVORY,IVORY,TRIM0#
main67640-13021-01i197701-197808
BLACK,BLACK,TRIM2#
main67640-13021-06i197808-198107
LIGHT BROWN,BROWN,TRIM4#
main67640-13021-14i197805-197808
BLUE,BLUE,TRIM8#
67785BHOLDER, DOOR LOCKING BUTTON COLLAR(FOR REAR DOOR)
main67785-20010×2i197408-197512
main69751-20030×2i197512-198101
main69751-20031-01×2i198101-198107
BLACK
67803COVER SUB-ASSY, REAR DOOR SERVICE HOLE, RH
main67841-12030i197408-198107
67804COVER SUB-ASSY, REAR DOOR SERVICE HOLE, LH
main67841-12030i197408-198107
67867BCLIP, DOOR WEATHERSTRIP(FOR REAR DOOR)
main67867-12020×21i197408-197702
main67868-30040×21i197702-198107
67871WEATHERSTRIP, REAR DOOR, RH
main67871-12060i197408-197702
main67871-12082i197702-198107
main67871-13060i197408-197702
main67871-13061i197702-198107
67872WEATHERSTRIP, REAR DOOR, LH
main67872-12060i197408-197702
main67872-12082i197702-198107
main67872-13050i197408-197702
main67872-13051i197702-198107
68103GLASS SUB-ASSY, REAR DOOR, RH
main68113-12060i197408-198107
*TEM,T=4.0
main68113-12070i197408-198107
*TT,T=4.0
main68113-13040i197502-198107
*TEM,T=4.0
main68113-13050i197502-198002
*TT,T=4.0
68104GLASS SUB-ASSY, REAR DOOR, LH
main68114-12060i197408-198107
*TEM,T=4.0
main68114-12070i197408-198107
*TT,T=4.0
main68114-13040i197502-198107
*TEM,T=4.0
main68114-13050i197502-198002
*TT,T=4.0
68123GLASS, REAR DOOR WINDOW, RH
main68123-12070i197503-198004
*TEM,T=4.0
main68123-12080i197408-198107
*TT,T=4.0
main68123-13040i197408-197502
*TEM,T=4.0
main68123-13050i197502-198002
*TT,T=4.0
68124GLASS, REAR DOOR WINDOW, LH
main68124-12070i197408-198107
*TEM,T=4.0
main68124-12080i197408-198107
*TT,T=4.0
main68124-13040i197408-197502
*TEM,T=4.0
main68124-13050i197502-198002
*TT,T=4.0
68142RUN, REAR DOOR GLASS
main68142-12030×2i197408-198107
68163WEATHERSTRIP, REAR DOOR GLASS, OUTER
main68180-12030i197408-198107
RH
main68230-12010i197503-198004
LH
68188WEATHERSTRIP, REAR DOOR QUARTER WINDOW, RH
main68188-12050i197408-198107
RH
main68188-13030i197408-198107
RH
main68189-12050i197408-198107
LH
main68189-13030i197408-198107
LH
68190WEATHERSTRIP ASSY, REAR DOOR GLASS, INNER
main68190-12050×2i197408-198107
6777112010WEATHERSTRIP, BACK DOOR TRIM, RH
main67771-12010
9166140612
main91661-40612
9333914008
main93339-14008

25 parts on this diagram · 1 diagram in section
