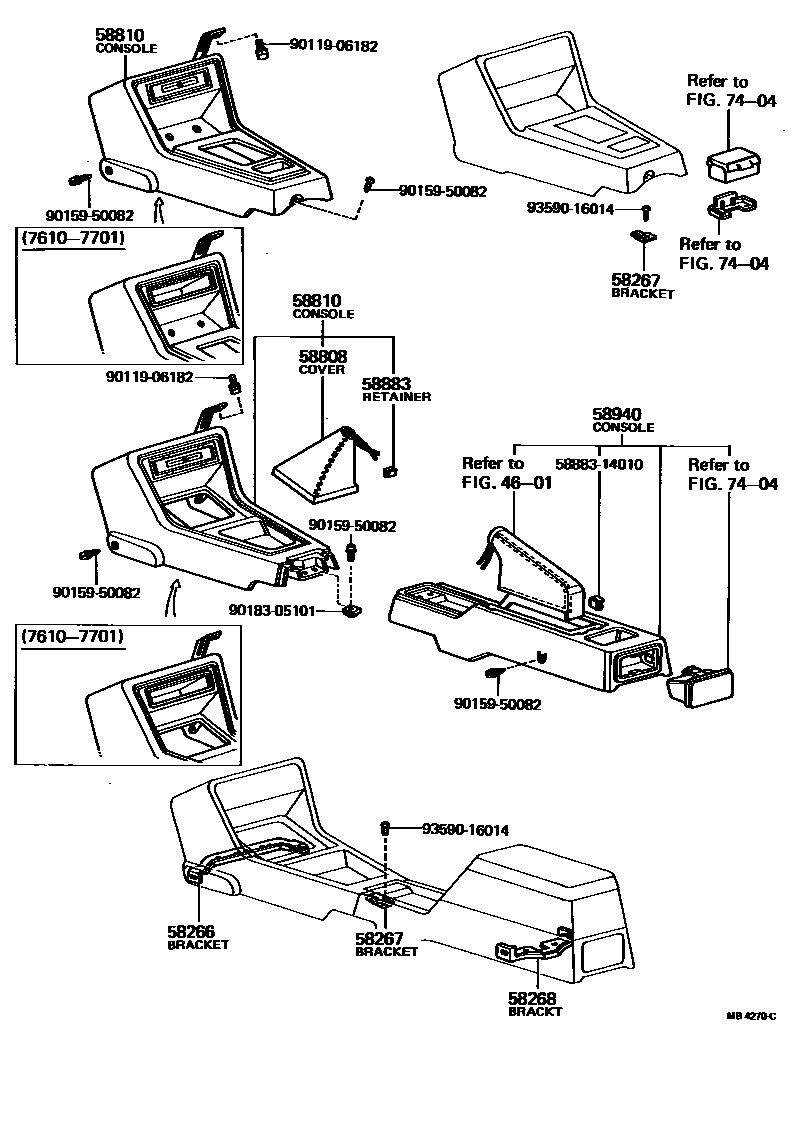

CONSOLE BOX & BRACKET

0001 1 0002 1 0003 1 0004 1 0005 1

4601

58266BRACKET, CONSOLE BOX SUPPORT, FRONT

main58851-12040iTE47197408-198107

main58865-12010iKE30,35..LHD..MTM..EUG197701-198107

W/STEREO

main58865-12020iKE30,35..LHD..A20..EUG197701-198107

W/STEREO

58267BRACKET, CONSOLE BOX SUPPORT, CENTER

main58852-12040iKE30,35..LHD..EUG197408-198107

58268BRACKET, CONSOLE BOX SUPPORT, REAR

main58853-12020iKE35,TE37,47,51..GSL,GT,SR,ST197408-198107

main58853-12030iKE35,TE37,47,51..GSL,GT,SR,ST197701-197805

58808COVER SUB-ASSY, SHIFTING HOLE

main58808-12030iKE35,TE37..SR197408-197511

sub58808-12031

main58808-12031iTE31..2TB;KE35,TE37..SR197511-198004

main58808-12040iKE50,TE47,51..MTM197507-197805

main58808-12040-01iKE5#,TE47,51..(CP,LB)..MTM197805-197908

BLACK,BLACK,TRIM2#

sub58808-12040

main58808-12040-04iKE5#,TE47,51..(CP,LB)..MTM197805-197908

BLUE,BLUE,TRIM8#

sub58808-12040

main58808-12040-06iKE5#,TE47,51..(CP,LB)..MTM197805-197908

LIGHT BROWN,BROWN,TRIM4#

sub58808-12040

main58808-12050iTE47197410-197507

main58880-12020iTE47197408-197410

58810CONSOLE ASSY

main58810-12130-01iKE35,TE37..SR197408-197511

FULL CONSOLE,BLACK,BLACK,TRIM0#,2#

sub58810-12131

main58810-12130-06iKE35,TE37..SR197408-197511

FULL CONSOLE,BROWN,BROWN,TRIM0#,4#

sub58810-12131

main58810-12131-01iKE35,TE37..SR197511-197610

FULL CONSOLE,BLACK,BLACK,TRIM0#,2#

sub58810-12132

sub55423-12030

main58810-12131-06iKE35,TE37..SR197511-197610

FULL CONSOLE,BROWN,BROWN,TRIM0#,4#

sub58810-12132

sub55423-12030

main58810-12132-01iKE35,TE37..SR197610-197701

FULL CONSOLE,BLACK,BLACK,TRIM0#,2#

sub58810-12132

main58810-12132-06iKE35,TE37..SR197610-197701

FULL CONSOLE,BROWN,BROWN,TRIM0#,4#

sub58810-12132

main58810-12140-01iKE30,35,TE31..ATM197408-197610

SEMI CONSOLE,BLACK,BLACK,TRIM0#,2#

sub58810-12141

main58810-12140-06iKE30,35,TE31..ATM197408-197610

SEMI CONSOLE,BROWN,BROWN,TRIM0#,4#

sub58810-12141

main58810-12141-01iKE30,35,TE31..ATM197610-197701

SEMI CONSOLE,BLACK,BLACK,TRIM0#,2#

sub58810-12141

main58810-12141-06iKE30,35,TE31..ATM197610-197701

SEMI CONSOLE,BROWN,BROWN,TRIM0#,4#

sub58810-12141

main58810-12160-01iTE51..RHD..A40197603-197701

BLACK,BLACK,TRIM0#,2#

main58810-12160-06iTE51..RHD..A40197603-197701

BROWN,BROWN,TRIM0#,4#

main58810-12170-01iKE50,TE51..RHD..4F197603-197701

BLACK,BLACK,TRIM0#,2#

main58810-12170-06iKE50,TE51..RHD..4F197603-197701

BROWN,BROWN,TRIM0#,4#

main58810-12220-01iTE47..RHD197408-197701

BLACK,BLACK,TRIM0#,2#

sub58810-12170

main58810-12220-06iTE47..RHD197408-197701

BROWN,BROWN,TRIM0#,4#

sub58810-12170

main58810-12260-01iTE51..LHD..GSL197408-197701

BLACK,BLACK,TRIM0#,2#

sub58810-12280

main58810-12260-06iTE47..LHD197408-197701

BROWN,BROWN,TRIM0#,4#

sub58810-12280

main58810-12270-01iTE51..LHD..A40197603-197701

BLACK,BLACK,TRIM0#,2#

main58810-12270-06iTE51..LHD..A40197603-197701

BROWN,BROWN,TRIM0#,4#

main58810-12280-01iKE50,TE51..LHD..4F197603-197701

BLACK,BLACK,TRIM0#,2#

sub58810-12280

main58810-12280-06iKE50,TE51..LHD..4F197603-197701

BROWN,BROWN,TRIM0#,4#

sub58810-12280

main58810-12290-01iKE30..MTM..DLX..EUR197701-198107

SEMI CONSOLE,BLACK,BLACK,TRIM2#

sub58810-12290

main58810-12290-01iKE38,55..HT,SED,WG197808-198107

BLACK,BLACK,TRIM2#

sub58810-12290

main58810-12290-04iKE30..MTM..DLX..EUR197805-198107

SEMI CONSOLE,BLUE,BLUE,TRIM8#

sub58810-12290

main58810-12290-04iKE38,55..HT,SED,WG197808-198107

BLUE,BLUE,TRIM8#

sub58810-12290

main58810-12290-06iKE30..MTM..DLX..EUR197701-198107

SEMI CONSOLE,LIGHT BROWN,BROWN,TRIM4#

sub58810-12290

main58810-12290-06iKE38,55..HT,SED,WG197808-198107

LIGHT BROWN,BROWN,TRIM4#

sub58810-12290

main58810-12300-01iTE31..2TB;KE35,TE37..SR197701-198004

FULL CONSOLE,BLACK,BLACK,TRIM2#

sub58810-12300

main58810-12300-04iKE35,TE37..SR197805-198004

FULL CONSOLE,BLUE,BLUE,TRIM8#

sub58810-12300

main58810-12300-06iTE31..2TB;KE35,TE37..SR197701-198004

FULL CONSOLE,LIGHT BROWN,BROWN,TRIM4#

sub58810-12300

main58810-12310-01iKE55..K50197808-197908

BLACK,BLACK,TRIM2#

sub58810-12310

main58810-12310-01iKE30,35,55,TE31..ATM197701-198107

SEMI CONSOLE,BLACK,BLACK,TRIM2#

sub58810-12310

main58810-12310-04iKE30,35,55..ATM197805-198107

SEMI CONSOLE,BLUE,BLUE,TRIM8#

sub58810-12310

main58810-12310-04iKE55..K50197808-197908

BLUE,BLUE,TRIM8#

sub58810-12310

main58810-12310-06iKE55..K50197808-197908

LIGHT BROWN,BROWN,TRIM4#

sub58810-12310

main58810-12310-06iKE30,35,55,TE31..ATM197701-198107

SEMI CONSOLE,LIGHT BROWN,BROWN,TRIM4#

sub58810-12310

main58810-12330-01iKE50,TE51..RHD..MTM..DLX197701-197908

BLACK-BLACK,BLACK,TRIM2#

sub58810-12330

main58810-12330-04iKE50,TE51..RHD..4F197805-197908

BLUE-BLACK,BLUE,TRIM8#

sub58810-12330

main58810-12330-06iKE50,TE51..RHD..MTM..DLX197701-197908

LIGHT BROWN-BLACK,BROWN,TRIM4#

sub58810-12330

main58810-12340-01iTE47,51..RHD..(GSL,GT,LT,ST)197701-197908

BLACK-SILVER,BLACK,TRIM2#

sub58810-12330

sub58810-12340

main58810-12340-04iTE47,51..RHD..(GSL,GT,LT,ST)197805-197908

BLUE-SILVER,BLUE,TRIM8#

sub58810-12330

sub58810-12340

main58810-12340-06iTE47,51..RHD..(GSL,GT,LT,ST)197701-197908

LIGHT BROWN-SILVER,BROWN,TRIM4#

sub58810-12330

sub58810-12340

main58810-12350-01iKE50,TE51..LHD..MTM..DLX197701-197908

BLACK,BLACK,TRIM2#

sub58810-12350

main58810-12350-04iKE50,TE51..LHD..MTM..DLX197805-197908

BLUE,BLUE,TRIM8#

sub58810-12350

main58810-12350-06iKE50,TE51..LHD..MTM..DLX197701-197908

LIGHT BROWN,BROWN,TRIM4#

sub58810-12350

main58810-12360-01iTE47,51..LHD..(GSL,GT,LT,ST)197701-197908

BLACK,BLACK,TRIM2#

sub58810-12350

sub58810-12360

main58810-12360-04iTE47,51..LHD..(GSL,GT,LT,ST)197805-197908

BLUE,BLUE,TRIM8#

sub58810-12350

sub58810-12360

main58810-12360-06iTE47,51..LHD..(GSL,GT,LT,ST)197701-197908

LIGHT BROWN,BROWN,TRIM4#

sub58810-12350

sub58810-12360

main58810-12400-01iTE51..LHD..A40197701-197908

BLACK,BLACK,TRIM2#

sub58810-12400

main58810-12400-04iTE51..LHD..A40197805-197908

BLUE,BLUE,TRIM8#

sub58810-12400

main58810-12400-06iTE51..LHD..A40197701-197908

LIGHT BROWN,BROWN,TRIM4#

sub58810-12400

main58810-12410-01iTE51..RHD..A40197701-197908

BLACK,BLACK,TRIM2#

sub58810-12410

main58810-12410-04iTE51..RHD..A40197805-197908

BLUE,BLUE,TRIM8#

sub58810-12410

main58810-12410-06iTE51..RHD..A40197701-197908

LIGHT BROWN,BROWN,TRIM4#

sub58810-12410

58883RETAINER, SHIFTING HOLE COVER

main58883-14010iKE35,TE37..SR197408-198004

main58883-22010iKE5#,TE47,51..(CP,LB)..MTM197408-197908

58940CONSOLE ASSY, REAR

main58901-12010-01iTE31197805-198107

BLACK,BLACK,TRIM2#

sub58901-12010

main58901-12010-04iKE3#,5#,TE47,51..DLX,LT,STD197805-198107

BLUE,BLUE,TRIM8#

sub58901-12010

main58901-12010-06iTE31..A40,T40197805-198107

LIGHT BROWN,BROWN,TRIM4#

sub58901-12010

main58950-12010-01iTE47..ST197408-198004

BLACK,BLACK,TRIM0#,2#

sub58950-12020

main58950-12010-04iKE35,TE37..SR197805-198004

BLUE,BLUE,TRIM8#

sub58950-12020

main58950-12010-06iTE47..ST197408-197701

BROWN,BROWN,TRIM0#,4#

sub58950-12020

main58950-12010-16iTE47..ST197701-198004

LIGHT BROWN,BROWN,TRIM4#

sub58950-12020

main58950-12020-01iTE47,51..GSL,GT197408-197908

W/ARMREST,BLACK,BLACK,TRIM0#,2#

sub58950-12020

main58950-12020-04iTE47,51..GSL,GT197805-197908

W/ARMREST,BLUE,BLUE,TRIM8#

sub58950-12020

main58950-12020-06iTE47,51..GSL,GT197408-197701

W/ARMREST,BROWN,BROWN,TRIM0#,4#

sub58950-12020

main58950-12020-16iTE47,51..GSL,GT197701-197908

W/ARMREST,LIGHT BROWN,BROWN,TRIM4#

sub58950-12020

7404

5888314010RETAINER, SHIFTING HOLE COVER

main58883-14010

9011906182

main90119-06182

9015950082

main90159-50082

9018305101

main90183-05101

9359016014

main93590-16014

14 parts on this diagram · 5 diagrams in section
