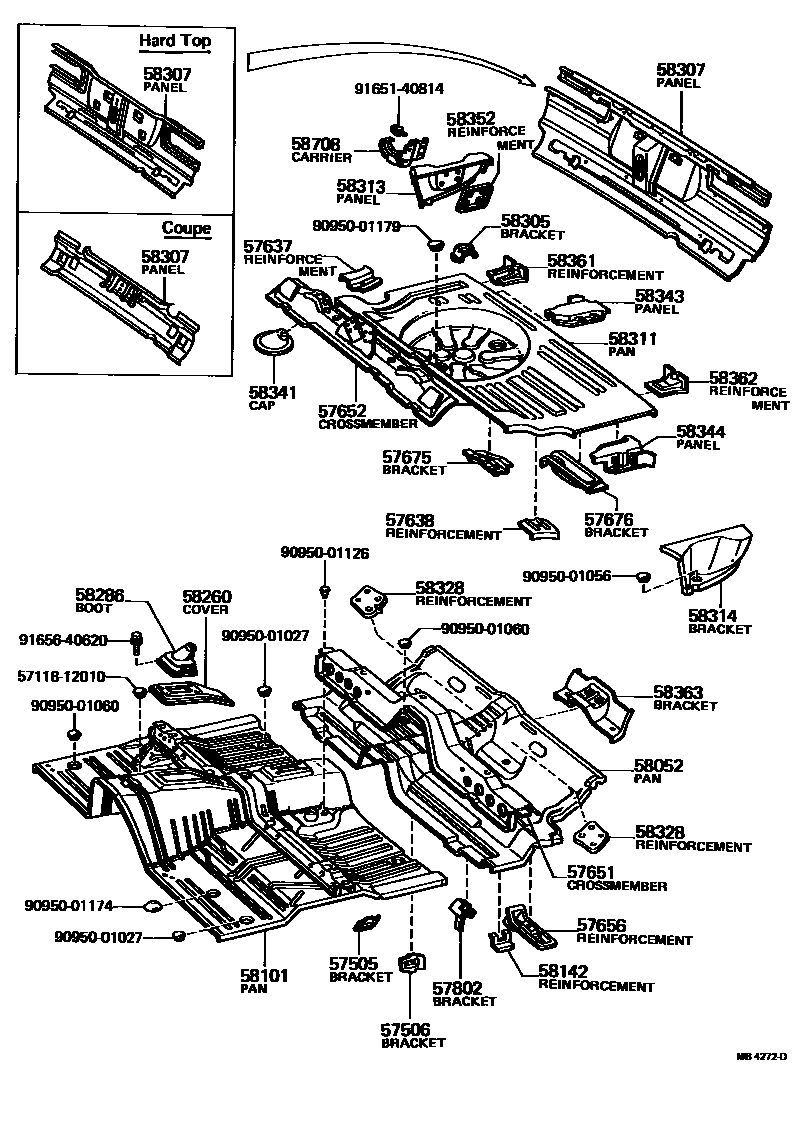

FLOOR PAN & LOWER BACK PANEL

0001 1 0002 1 0003 1

57505BRACKET SUB-ASSY, PARKING BRAKE, NO.1

main58207-12030iKE30,35,5#,TE3#,47,51197408-198107

57506BRACKET SUB-ASSY, PARKING BRAKE, NO.2

main58208-12030iKE30,35,5#,TE3#,47,51197408-198107

57637REINFORCEMENT, REAR FLOOR SIDE MEMBER TO WHEEL HOUSE, RH

main57637-12010iKE30,35,55,TE3#,47..CP,HT,SED197408-198107

57638REINFORCEMENT, REAR FLOOR SIDE MEMBER TO WHEEL HOUSE, LH

main57638-12010iKE30,35,55,TE3#,47..CP,HT,SED197408-198107

57651CROSSMEMBER, REAR FLOOR, FRONT

main57407-13020iKE36197408-197603

main57407-13030iKE36197603-197603

main57407-13031iKE36,38197603-198107

main57461-12030iKE30,35,5#,TE3#,47,51197408-198107

57652CROSSMEMBER, REAR FLOOR, NO.2

main57606-12030iKE30,35,55,TE3#,47..CP,HT,SED197408-198107

main57606-12040iKE5#,TE51..LB197603-197908

main57606-13010iKE36,38197408-198107

57656REINFORCEMENT, EXHAUST PIPE HANGER SUPPORT

main57658-12020iKE30,35,5#,TE3#,47,51197408-198107

57675BRACKET, MUFFLER HANGER SUPPORT, NO.1

main57656-12010iKE30,35,55,TE3#,47..CP,HT,SED197408-198107

57676BRACKET, MUFFLER HANGER SUPPORT, NO.2

main57657-12020iKE30,35,55,TE3#,47..CP,HT,SED197408-198107

57802BRACKET SUB-ASSY, BRAKE TUBE, NO.1

main58326-12010iKE30,35,5#,TE3#,47,51197408-198107

58052PAN SUB-ASSY, CENTER FLOOR

main58201-13040iKE36,38197408-198107

main58211-12050iKE30,35,50,TE3#,47,51197408-197608

main58211-12051iKE30,35,50,TE3#,47,51197608-197701

main58211-12052iKE30,35,5#,TE3#,47,51197701-198107

main58405-13010iKE36,38..DV197408-198107

LONG DECK

58101PAN SUB-ASSY, FRONT FLOOR

main58101-12906iKE3#,TE3#,47197408-197511

main58101-12915iKE3#,50,TE3#,47,51197511-197608

main58101-12919iKE3#,5#,TE3#,47,51197608-198107

58142REINFORCEMENT, FLOOR SIDE MEMBER TO FLOOR PAN

main58143-12030iKE30,35,5#,TE3#,47,51197408-198107

58260COVER ASSY, TRANSMISSION, FRONT

main58121-12030iKE3#,5#..MTM197408-198107

main58121-12040iKE30,35,55,TE31,51..ATM197408-198107

main58121-12050iTE3#,47,51..MTM197408-198004

58286BOOT, SHIFT & SELECT LEVER, NO.1

main58280-12010iKE30,35,36..MTM..(DLX,STD)197408-198107

main58280-12020iKE30,35..MTM..(DLX,STD)197701-197908

SEMI CONSOLE

main58280-12030iKE35..SR197408-197908

main58280-12040iTE31..MTM197503-197904

main58280-12050iTE31..MTM197701-197908

SEMI CONSOLE

main58280-12060iTE31..2TB197904-198004

main58520-12040iTE31..T40197904-198004

58305BRACKET SUB-ASSY, SPARE WHEEL CLAMP

main58305-10011iKE30,35,5#,TE3#,47,51197408-198107

58307PANEL SUB-ASSY, BODY LOWER BACK

main58307-12090iKE30,TE31197408-197609

main58307-12110iKE35,55,TE37..HT197408-197904

main58307-12120iKE50,TE51197603-197610

main58307-12130iTE47197408-197902

main58307-12280iKE30,TE31197609-197805

main58307-12290iKE5#,TE51..LB197610-197908

main58307-12310iKE30197904-198003

main58307-12320iKE30..GEN197805-197908

LARGE BUMPER

main58307-12330iKE35..RHD..K40..DLX; TE37197904-198004

LARGE BUMPER

main58307-13040iKE36197408-197711

main58307-13041iKE36,38197711-198107

58311PAN, REAR FLOOR

main58311-12040iKE30,35,55,TE3#,47..CP,HT,SED197408-198107

main58311-12050iKE5#,TE51..LB197603-197908

main58311-13060iKE36,38197408-198107

58313PANEL, REAR FLOOR SIDE, RH

main58305-12020iKE50,TE51197701-197808

main58305-12030iKE5#,TE51..LB197808-197908

main58313-12030iKE30,35,TE3#197408-197808

main58313-12040iTE47197408-197902

main58313-12050iKE50,TE51197603-197701

main58313-12100iKE30,35,55,TE3#..HT,SED197808-198107

main58313-13040iKE36,38197408-198107

58314PANEL, REAR FLOOR SIDE, LH

main58306-12010iKE50,TE51197701-197808

main58306-12020iKE5#,TE51..LB197808-197908

main58314-12030iKE30,35,TE3#197408-197808

main58314-12040iTE47197408-197902

main58314-12050iKE50,TE51197603-197701

main58314-12100iKE30,35,55,TE3#..HT,SED197808-198107

main58314-13040iKE36,38197408-198107

58328REINFORCEMENT, SAFETY BELT ANCHORAGE

main57815-12020iKE30,35..EUG197701-197908

RH,WEST GERMANY SPEC

main57815-13010iKE36..LHD..4D;KE36..LHD..2D..GEN197409-197701

RH,WEST GERMANY SPEC

main57815-13020iKE36..2DW..EUG197701-197908

RH,WEST GERMANY & FRANCE SPEC

main57816-12020iKE30,35..EUG197701-197908

LH,WEST GERMANY SPEC

main57816-13010iKE36..LHD..4D;KE36..LHD..2D..GEN197409-197701

LH,WEST GERMANY SPEC

main57816-13020iKE36..2DW..EUG197701-197908

LH,WEST GERMANY & FRANCE SPEC

58341CAP, REAR SHOCK ABSORBER

main58341-12010iKE30,35,5#,TE3#,47,51197408-198107

RH

main58341-13010iKE36,38197408-198107

RH

main58342-12010iKE30,35,5#,TE3#,47,51197408-198107

LH

main58342-13010iKE36,38197408-198107

LH

58343PANEL, REAR FLOOR SIDE, REAR RH

main57635-12020iKE5#,TE51..LB197603-197908

main57801-12010iKE30,35,55,TE3#,47..CP,HT,SED197408-198107

58344PANEL, REAR FLOOR SIDE, REAR LH

main57636-12020iKE5#,TE51..LB197603-197908

main57802-12010iKE30,35,55,TE3#,47..CP,HT,SED197408-198107

58352REINFORCEMENT, JACK CLAMP

main58352-12020iKE30,35,55,TE3#,47..CP,HT,SED197408-198107

main58352-12030iKE5#,TE51..LB197603-197908

58361REINFORCEMENT, REAR FLOOR PAN TO BODY LOWER BACK, RH

main58361-12010iKE30,35,55,TE3#..HT,SED197408-198107

main58361-12020iTE47197408-197902

58362REINFORCEMENT, REAR FLOOR PAN TO BODY LOWER BACK, LH

main58362-12010iKE30,35,55,TE3#..HT,SED197408-198107

main58362-12020iTE47197408-197902

58363BRACKET SUB-ASSY, DIFF CARRIER BUMPER

main58205-12030iKE30,35,5#,TE3#,47,51197408-198107

58708CARRIER SUB-ASSY, JACK

main58791-12030iKE30,35,55,TE3#,47..CP,HT,SED197408-198107

main58791-12040iKE5#,TE51..LB197603-197908

main58791-13030iKE36197408-197611

main58791-13031iKE36,38197611-198107

5711812010PLATE SUB-ASSY, FRONT SIDE MEMBER, FRONT LH

main57118-12010

9095001027

main90950-01027

9095001056

main90950-01056

9095001060

main90950-01060

9095001126

main90950-01126

9095001174

main90950-01174

9095001179

main90950-01179

9165140814

main91651-40814

9165640620

main91656-40620

38 parts on this diagram · 3 diagrams in section
