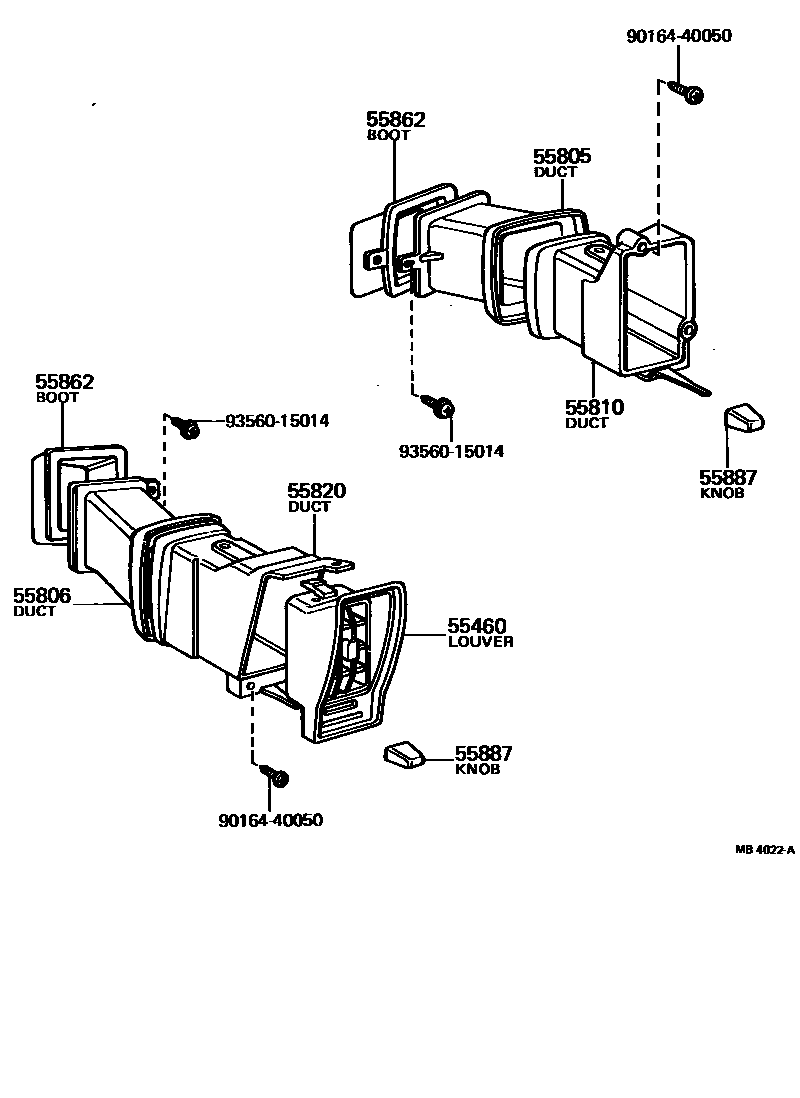

COWL VENTILATOR

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1

55460LOUVER ASSY, SIDE VENTILATOR, LH

main55650-12020iKE30,35,36..LHD197701-198002

DRIVER SIDE

main55650-12030iKE50,TE47,51..LHD197701-197908

DRIVER SIDE

main55660-12010-01iKE3#,50,TE3#,47,51..RHD197408-197701

BRACK;BLACK,BLACK

main55660-12010-06iKE3#,TE3#,47..RHD197408-197512

BROWN,BROWN

main55660-12030iKE3#,55,TE3#..(DV,HT,SED,WG)..RHD197701-198107

ASSISTANT SIDE

main55660-12050iKE5#,TE47,51..(CP,LB)..RHD197701-197908

ASSISTANT SIDE

55805DUCT SUB-ASSY, SIDE VENTILATOR, NO.2 RH

main55841-12010iKE3#,TE3#..RHD197408-197701

main55841-12020iKE50,TE47,51..RHD197408-197701

main55841-12050iKE3#,55,TE3#..(DV,HT,SED,WG)..RHD197701-198107

main55841-12070iKE5#,TE47,51..(CP,LB)..RHD197701-197908

main55842-12030iKE3#..LHD197408-197701

main55842-12040iKE50,TE47,51..LHD197408-197701

main55842-12060iKE30,35,36..LHD197701-198002

55806DUCT SUB-ASSY, SIDE VENTILATOR, NO.2 LH

main55841-12030iKE3#..LHD197408-197701

main55841-12040iKE50,TE47,51..LHD197408-197701

main55841-12060iKE30,35,36..LHD197701-198002

main55841-12080iKE50,TE47,51..LHD197701-197908

main55842-12010iKE3#,TE3#..RHD197408-197701

main55842-12020iKE50,TE47,51..RHD197408-197701

main55842-12050iKE3#,55,TE3#..(DV,HT,SED,WG)..RHD197701-198107

55810DUCT ASSY, SIDE VENTILATOR, RH

main55081-12040iKE50,TE47,51..RHD197408-197605

main55081-12041iKE50,TE47,51..RHD197605-197701

main55084-12030iKE50,TE47..RHD..(ARL,GEN)197701-197908

W/COOLER

main55085-12030iKE30,35,36..RHD197701-198107

W/COOLER

main55088-12020iKE30,35,36..LHD197701-198107

W/COOLER

main55830-12010iKE3#,TE3#..RHD197408-197605

main55830-12011iKE3#,TE3#..RHD197605-197701

main55830-12031iKE3#,50,TE47,51..LHD197605-197701

main55831-12060iKE3#,55,TE3#..(DV,HT,SED,WG)..RHD197701-198107

main55831-12070iKE5#,TE47,51..(CP,LB)..RHD197701-197908

main55832-12050iKE30,35,36..LHD197701-198002

main55840-12030iKE3#,50,TE47,51..LHD197408-197605

main55842-12080iKE50,TE47,51..LHD197701-197908

main55846-12040iKE50,TE47,51..LHD..GEN197805-197908

W/COOLER

55820DUCT ASSY, SIDE VENTILATOR, LH

main55081-12050iKE50,TE47,51..LHD197408-197605

main55081-12051iKE50,TE47,51..LHD197605-197701

main55084-12040iKE50,TE47,51..LHD..GEN197805-197908

W/COOLER

main55085-12040iKE30,35,36..LHD197701-198107

W/COOLER

main55088-12010iKE30,35,36..RHD197701-198107

W/COOLER

main55830-12030iKE3#..LHD197408-197605

main55831-12060iKE30,35,36..LHD197701-198002

main55831-12080iKE50,TE47,51..LHD197701-197908

main55832-12040iKE3#,55,TE3#..(DV,HT,SED,WG)..RHD197701-198107

main55840-12010iKE3#,50,TE3#,47,51..RHD197408-197605

main55840-12011iKE3#,50,TE3#,47,51..RHD197605-197701

main55840-12031iKE3#..LHD197605-197701

main55842-12070iKE5#,TE47,51..(CP,LB)..RHD197701-197908

main55846-12030iKE50,TE47..RHD..(ARL,GEN)197701-197805

W/COOLER

55862BOOT, SIDE VENTILATOR

main55843-12010iKE3#,55,TE3#..(DV,HT,SED,WG)..RHD197408-198107

RH

main55843-12020iKE5#,TE47,51..(CP,LB)..RHD197408-197908

RH

main55843-12030iKE30,35,36..LHD197408-198002

LH

main55843-12040iKE50,TE47,51..LHD197408-197908

LH

main55844-12010iKE3#,55,TE3#..(DV,HT,SED,WG)..RHD197408-198107

LH

main55844-12020iKE5#,TE47,51..(CP,LB)..RHD197408-197908

LH

main55844-12030iKE30,35,36..LHD197408-198002

RH

main55844-12040iKE50,TE47,51..LHD197408-197908

RH

55887KNOB, SIDE VENTILATOR BUTTERFLY CONTROL

main55897-12901iKE3#,50,TE3#,47,51197408-197701

RH

main55898-12901iKE3#,50,TE3#,47,51197408-197701

LH

9016440050

main90164-40050

9356015014

main93560-15014

9 parts on this diagram · 6 diagrams in section
