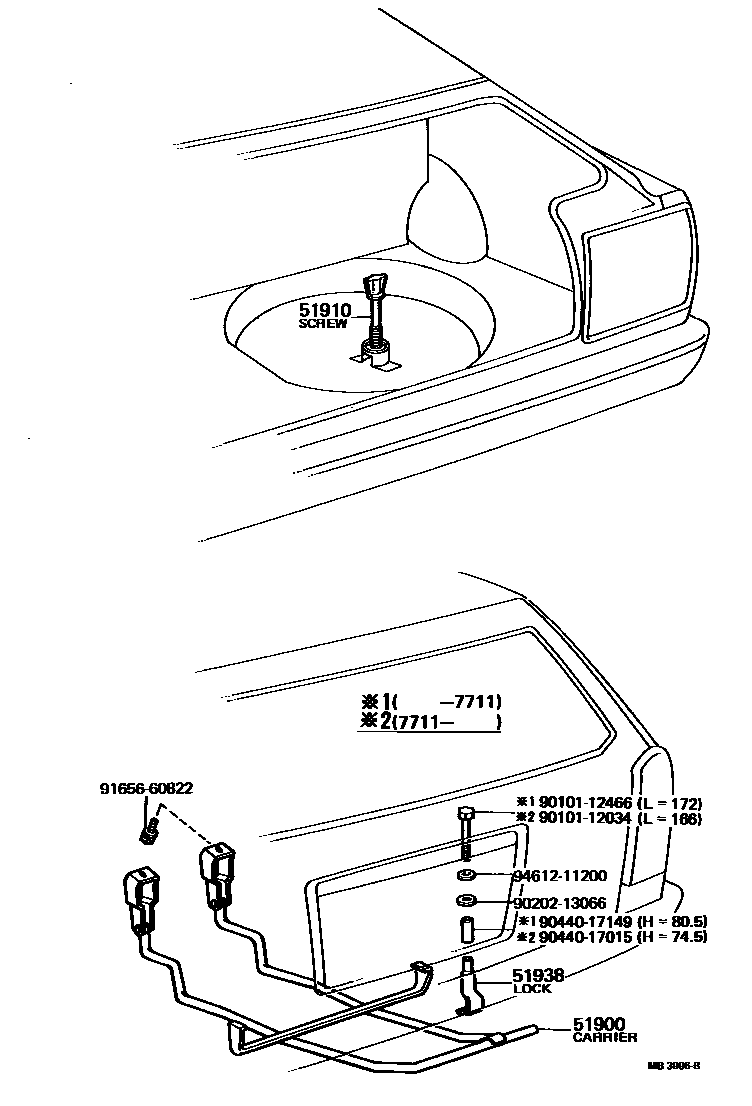

SPARE WHEEL CARRIER

51900CARRIER ASSY, SPARE WHEEL

main51900-13010iKE36197408-197507

main51900-13011iKE36,38197507-198107

main51900-13020iKE36..LHD197409-197507

SWITZERLAND SPEC

main51900-13021iKE36..LHD197507-197908

5J DISC WHEEL

51910SCREW ASSY, SPARE WHEEL CLAMP

main51910-12020iKE30,35,55,TE3#,47..CP,HT,SED197408-198107

main51910-12030iKE5#,TE51..LB197603-197908

51938LOCK, SPARE WHEEL CARRIER

main51938-13010iKE36,38197408-198107

9010112034

main90101-12034

9010112466

main90101-12466

9020213066

main90202-13066

9044017015

main90440-17015

9044017149

main90440-17149

9165660822

main91656-60822

9461211200

main94612-11200

10 parts on this diagram · 1 diagram in section
