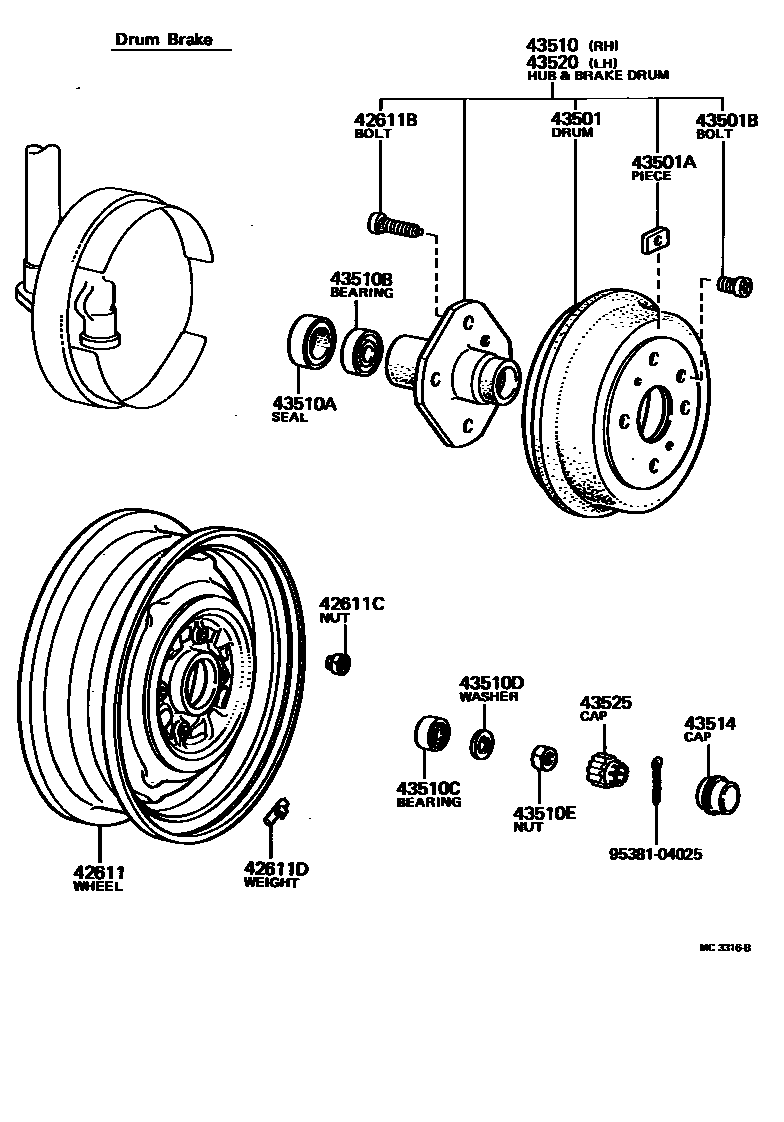

FRONT AXLE HUB

0001 1 0003 1

42611WHEEL, DISC

main42611-12241×2iTE47; TE51..GSL197605-197701

5J-13

main42611-12401×2iKE30,35,50,TE47,51..DLX,LT,SR,ST,STD197701-197708

4.5J-13,SPORT WHEEL

main42611-12430×2iKE38,55..HT,LB,SED,WG197808-197908

4.5J-13,SPORT WHEEL

main42611-13040×2iTE3#;KE3#..ARL,EUR,GEN197508-197701

4.5J-13,SEMI-STYLED WHEEL

main42611-14060×2iKE30..SA197908-198107

4.5J-13

main42611-14100×2iKE30,35,50,TE47,51..DLX,LT,SR,ST,STD197603-197701

4.5J-13,SPORT WHEEL,155SR13

main42611-14101×2iKE30,35,TE47..DLX,LT,SR,ST,STD197408-197603

4.5J-13,SPORT WHEEL,155SR13

main42611-14110×2iTE47; TE51..GSL197408-197605

5J-13

main42611-14120×2iKE30; KE35..DLX197408-197508

4J-13,TUBELESS

main42611-14130×2iKE30; KE35..DLX197408-197508

4J-13,W/T

main42611-14240×2iKE36..RHD..GEN;KE30,35,50..MTM;KE36..ARL,EUR,SA;KE36..WG..LHD..GEN197511-197701

5J-13

main42611-14242×2iKE36..LHD..EUG197703-197708

5J-13,AUSTRIA SPEC

main42611-14300×2iKE36..LHD..EUG197805-197908

5J-13

main42611-14310×2iTE3#..2TB197904-198004

5J-13,ALUMI WHEEL

main42611-14320×2iKE36..LHD..EUG; KE36..WG..STD..EUG197708-197805

5J-13,AUSTRIA SPEC; 5J-13,SWITZERLAND SPEC

main42611-14330×2iKE30..RHD..GEN197801-197805

4.5J-13,IRELAND SPEC

main42611-14331×2iTE31..T40197908-198004

4.5J-13,SEMI-STYLED WHEEL

main42611-14350×2iTE3#..2TB197908-198004

5J-13,SPORT WHEEL

main42611-20050×2iKE36197408-197508

4J-13

main42611-20060×2iKE30..STD..GEN; KE36..SA197908-198107

4J-13

main42611-20090×2iKE50,TE51..LHD..DLX197603-197701

5J-13,SPORT WHEEL

main42611-20091×2iKE30,35,50,TE51..LHD..(DLX,SR,STD)..EUR197701-197708

5J-13,SPORT WHEEL

main42611-20160×2iKE3#..(HT,SED,WG)..LHD..MTM197408-197504

5J-13

main42611-22080×2iTE31..STD197503-197508

4.5J-13

main42611-22090×2iKE3#..GEN;TE3#..DLX,SR197408-197508

4.5J-13,FOR RADIAL TIRE

main42611-22121×2iKE30,35..EUG; KE36..EUR,GEN; TE3#197701-197805

4.5J-13,SEMI-STYLED WHEEL

42611BBOLT, HUB (FOR FRONT AXLE)

main90942-02032×8iKE3#,50,TE3#,47,51197408-197703

*12-1.5PX38-25.5

main90942-02035×8iKE30..GEN; KE36..GEN,SA197703-197807

*12-1.5PX36-23.5,DRUM BRAKE

main90942-02036×8iKE36..ARL,EUR,GEN;KE30,35,50,TE3#,47,51197703-197807

*12-1.5PX33-20.5,DISC BRAKE

42611CNUT, HUB (FOR FRONT AXLE)

main90942-01007×8iKE30..RHD..K40..4D..DLX..GEN; KE35,TE31..(DLX,SR)..(ARL,GEN,SA); KE36..2D..STD;KE30,TE31..STD;KE36..4D..STD..EUG;KE36..4D..STD..(ARL,GEN)197701-197805

main90942-01017×8iKE30,35,TE47; KE36..WG..LHD197408-197411

CAP NUT,H=37.5

main90942-01020×8iKE30,35,TE47; KE36..WG..LHD197411-197508

CAP NUT,H=34.5

main90942-01021×8iKE30..DLX..SA;KE30..ARL,EUR,GEN;KE35,50,TE37,47,51; KE36..EUR,GEN197704-197805

CAP NUT,H=29.5

main90942-01026×8iTE3#..2TB197904-198004

ALUMI WHEEL

42611DWEIGHT, BALANCE(FOR FRONT DISC WHEEL)

main90942-03017iKE3#,5#,TE3#,47,51197408-198107

20G

main90942-03020iKE3#,5#,TE3#,47,51197408-198107

30G

main90942-03022iKE3#,5#,TE3#,47,51197408-198107

40G

main90942-03025iKE3#,5#,TE3#,47,51197408-198107

50G

main90942-03027iKE3#,5#,TE3#,47,51197408-198107

60G

main90942-03029iKE3#,5#,TE3#,47,51197408-198107

70G

main90942-03031iKE3#,5#,TE3#,47,51197408-198107

80G

main90942-03041iKE3#,5#,TE3#,47,51197408-198107

10G

main90942-03092iTE3#..2TB197904-198004

10G,ALUMI WHEEL

main90942-03093iTE3#..2TB197904-198004

20G,ALUMI WHEEL

main90942-03094iTE3#..2TB197904-198004

30G,ALUMI WHEEL

main90942-03095iTE3#..2TB197904-198004

40G,ALUMI WHEEL

main90942-03096iTE3#..2TB197904-198004

50G,ALUMI WHEEL

main90942-03097iTE3#..2TB197904-198004

60G,ALUMI WHEEL

43501DRUM SUB-ASSY, FRONT BRAKE

main43512-12050×2iKE30..GEN; KE36..GEN,SA197408-197807

43501APIECE, BALANCE (FOR FRONT BRAKE DRUM)

main90937-01096×2iKE30,36..GEN197807-198107

8.5G,8.5G.

main90937-01097×2iKE30..GEN; KE36..GEN,SA197408-197807

16.5G,16.5G

main90937-01098×2iKE30..GEN; KE36..GEN,SA197408-197807

24.5G,24.5G

main90937-01099×2iKE30..GEN; KE36..GEN,SA197408-197807

32.5G,32.5G

main90937-01100×2iKE30..GEN; KE36..GEN,SA197408-197807

40.5G,40.5G

43501BBOLT, SET (FOR FRONT BRAKE DRUM SETTING)

main90113-10007×2iKE30..GEN;KE36..GEN,SA197408-197807

43510HUB AND BRAKE DRUM ASSY, FRONT AXLE, RH

main43510-12050iKE30..GEN;KE36..GEN,SA197408-197807

43510ASEAL, OIL (FOR FRONT AXLE HUB)

main90311-41123×2iKE3#,5#,TE3#,47,51197408-198107

43510BBEARING, TAPERED ROLLER (FOR FRONT AXLE INNER BEARING)

main90368-29068×2iKE3#,5#,TE3#,47,51197408-198107

43510CBEARING, TAPERED ROLLER (FOR FRONT AXLE OUTER BEARING)

main90368-17017×2iKE3#,5#,TE3#,47,51197408-198107

43510DWASHER, CLAW (FOR STEERING KNUCKLE WASHER)

main90214-16010×2iKE3#,5#,TE3#,47,51197408-198107

43510ENUT (FOR STEERING KNUCKLE)

main90170-16137×2iKE3#,5#,TE3#,47,51197408-198107

43514CAP, FRONT HUB GREASE

main43514-20010×2iKE3#,5#,TE3#,47,51197408-198107

43520HUB AND BRAKE DRUM ASSY, FRONT AXLE, LH

main43510-12050iKE30,36..GEN197807-198107

43525CAP, FRONT WHEEL ADJUSTING LOCK

main43525-20011×2iKE3#,5#,TE3#,47,51197408-198107

9538104025

main95381-04025

17 parts on this diagram · 2 diagrams in section
