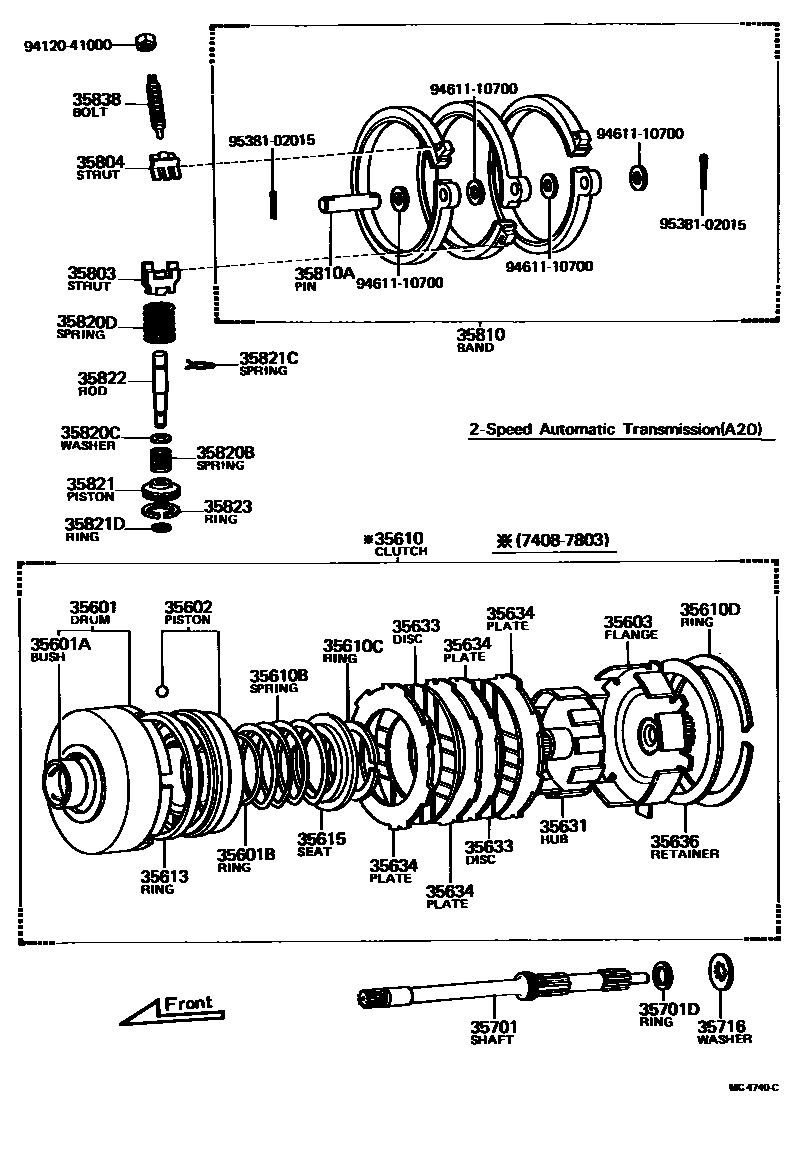

BRAKE BAND & MULTIPLE DISC CLUTCH (ATM)
35601DRUM SUB-ASSY, CLUTCH
35601ABUSH, BIMETAL FORMED (FOR CLUTCH DRUM)
35601BRING, O (FOR FRONT CLUTCH DRUM)
35602PISTON SUB-ASSY, FRONT CLUTCH
35603FLANGE SUB-ASSY, CLUTCH, W/LOW SUN GEAR
35610CLUTCH ASSY, FRONT MULTIPLE DISC
35610BSPRING, COMPRESSION (FOR FRONT CLUTCH PISTON RETURN)
35610CRING, SHAFT SNAP (FOR FRONT CLUTCH PISTON RETURN SPRING)
35610DRING, HOLE SNAP (FOR FRONT MULTIPLE DISC CLUTCH)
35613RING, CLUTCH PISTON OIL SEAL, OUTER
35615SEAT, CLUTCH PISTON RETURN SPRING
35631HUB, CLUTCH(FOR MULTIPLE DISC CLUTCH)
35633DISC, CLUTCH (FOR FRONT CLUTCH)
NSK-WARNER
AISIN CHEMICAL
35634PLATE, FRONT CLUTCH
T=1.8,NSK-WARNER
T=1.8,AISIN CHEMICAL
35636RETAINER, CLUTCH FLANGE
35701SHAFT SUB-ASSY, INPUT
35701DRING (FOR INPUT SHAFT)
35716WASHER, LOW SUN GEAR THRUST, NO.1
T=2.0
T=2.6
35803STRUT SUB-ASSY, LOW BRAKE BAND APPLY
35804STRUT SUB-ASSY, LOW BRAKE BAND ANCHOR
35810BAND ASSY, TRANSMISSION BRAKE (FOR FRONT)
35810APIN, W/HOLE STRAIGHT (FOR BRAKE BAND)
35820BSPRING, COMPRESSION (FOR LOW SERVO PISTON INNER)
35820CWASHER, PLATE (FOR LOW SERVO PISTON RETURN SPRING)
35820DSPRING, COMPRESSION (FOR LOW SERVO PISTON RETURN)
35821PISTON, LOW SERVO
35821CSPRING, LOW SERVO PISTON SPRING LOCK RETAINER
35821DRING, E (FOR LOW SERVO PISTON SPRING LOCK)
35822ROD, LOW SERVO PISTON
35823RING, SERVO PISTON
35838BOLT, BRAKE BAND ANCHOR
9412041000
main94120-41000
9461110700
main94611-10700
9538102015
main95381-02015
34 parts on this diagram · 2 diagrams in section
