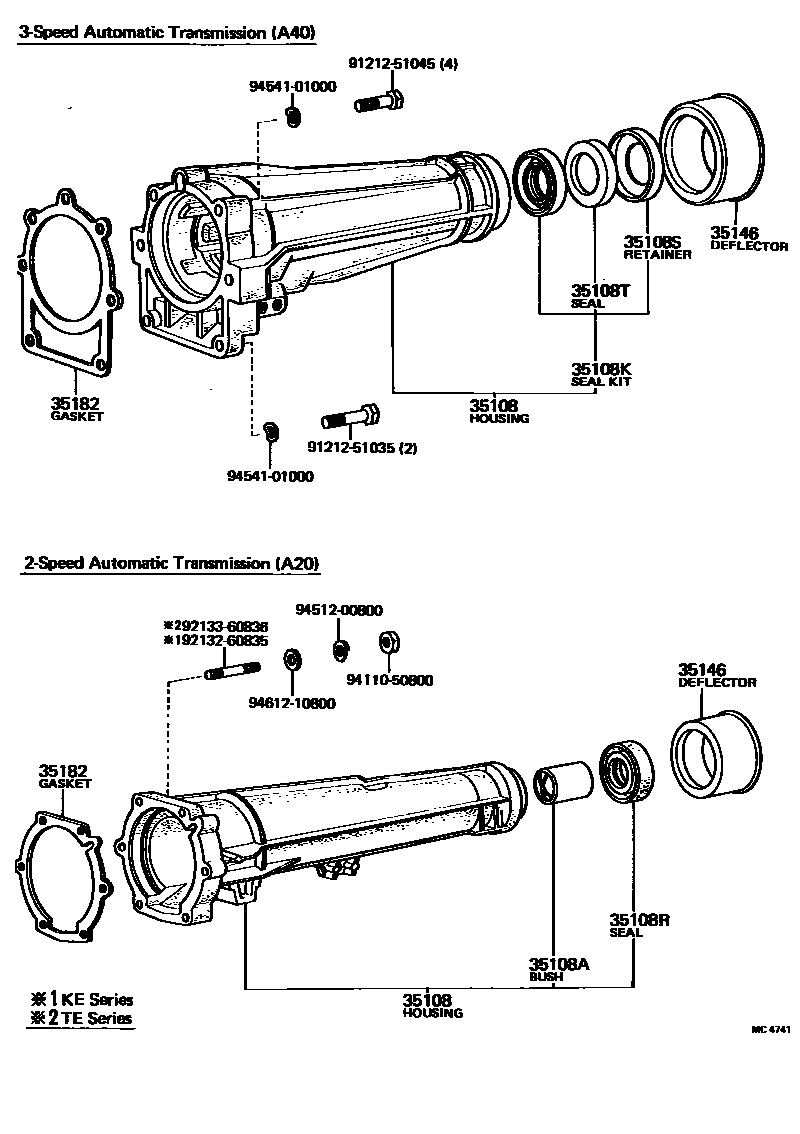

EXTENSION HOUSING (ATM)

35108HOUSING SUB-ASSY, EXTENSION (ATM)

main35108-12901iKE30,35..A20197408-197908

main35108-22030iTE31,51..A40197512-197808

main35108-22031iTE31,51..A40197808-198004

35108ABUSH, BIMETAL FORMED (FOR ATM EXTENSION HOUSING)

main90999-72020iKE30,35..A20197408-197908

35108KSEAL KIT, OIL(FOR AUTOMATIC EXTENSION HOUSING)

main04332-30020iTE31,51..A40197512-198004

35108RSEAL, OIL (FOR AUTOMATIC TRANSMISSION EXTENSION HOUSING)

main90311-32074iKE30,35..A20197408-197908

35108SRETAINER, EXTENSION HOUSING DUST SEAL (ATM)

main33145-30010iTE31,51..A40197512-198004

35108TSEAL, DUST (FOR AUTOMATIC TRANSMISSION EXTENSION HOUSING)

main90303-38010iTE31,51..A40197512-198004

35146DEFLECTOR, EXTENSION HOUSING DUST (ATM)

main33146-12010iKE30,35..A20197408-197908

main33146-30010iTE31,51..A40197512-198004

35182GASKET, EXTENSION HOUSING (ATM)

main35182-12011iKE30,35..A20197408-197908

main35182-22010iTE31,51..A40197512-198004

9121251035

main91212-51035

9121251045

main91212-51045

9213260835

main92132-60835

9213360836

main92133-60836

9411050800

main94110-50800

9451200800

main94512-00800

9454101000

main94541-01000

9461210800

main94612-10800

16 parts on this diagram · 1 diagram in section
