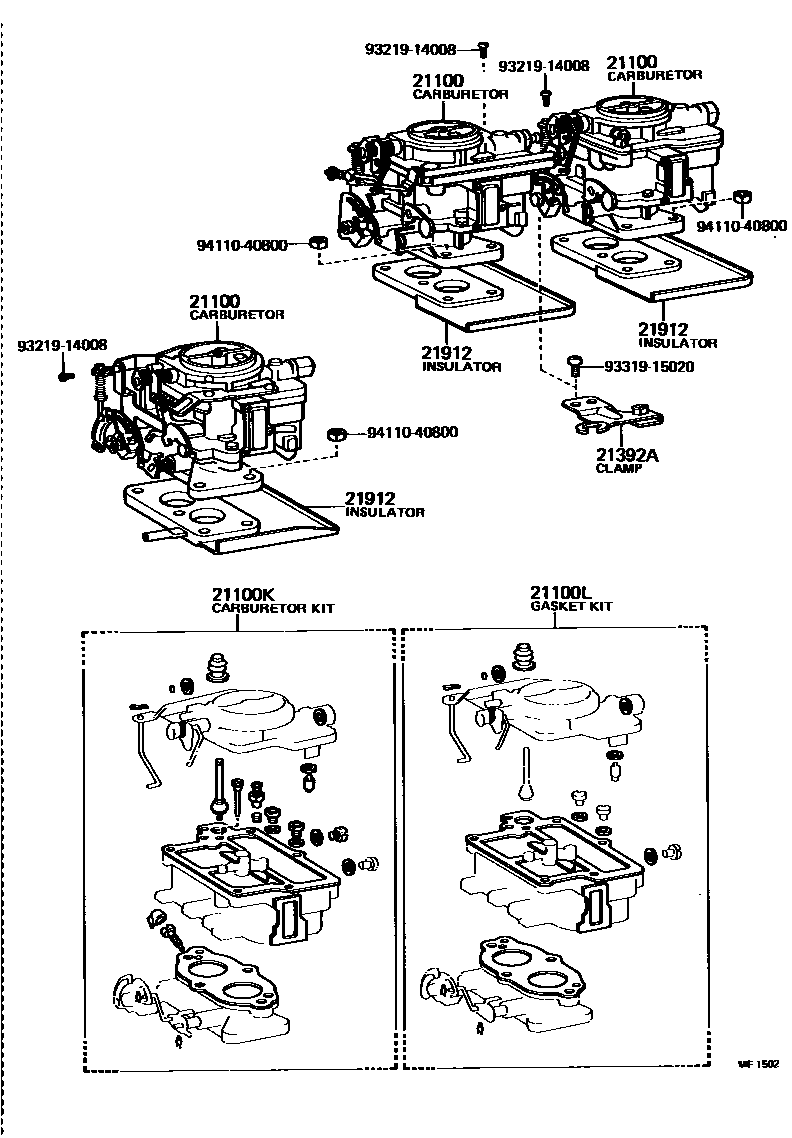

CARBURETOR ASSEMBLY

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1

21100CARBURETOR ASSY

main21100-13040i4KC..KE55..3FC197808-198012

main21100-13060i4KC..KE38,55..MTM197808-198012

main21100-13250i4KC..KE38,55..MTM198012-198107

main21100-13260i4KC..KE55..3FC198012-198107

main21100-24034i3KH..KE3#..K40197408-197511

main21100-24035i3KH..KE3#,50..K40197511-197701

main21100-24036i3KH..KE3#,50..K40197701-197805

main21100-24044i3KH..KE30,35..A20197408-197511

main21100-24045i3KH..KE30,35..A20197511-197701

main21100-24046i3KH..KE30,35..A20197701-197805

main21100-24065i3KB..KE35197408-197701

FR CARBURETOR

main21100-24076i3KB..KE35197408-197701

RR CARBURETOR

main21100-24252i3KH..KE3#..RHD197408-197410

AUSTRALIA SPEC

main21100-24253i3KH..KE3#..RHD197410-197511

AUSTRALIA SPEC

main21100-24370i3KC..KE3#197508-197604

main21100-24371i3KC..KE3#197604-197701

main21100-24372i3KC..KE3#,50197701-197706

main21100-24373i3KC..KE3#,50..MTM197706-197805

main21100-24380i3KH..KE3#..RHD197511-197609

AUSTRALIA SPEC

main21100-24390i3KH..KE3#,50..K40197601-197701

EUROPE SPEC,NO.15 COUNTRY

main21100-24391i3KH..KE3#,50..K40197701-197805

EUROPE SPEC,NO.15 COUNTRY

main21100-24410i3KH..KE30,35..A20197601-197701

EUROPE SPEC,NO.15 COUNTRY

main21100-24411i3KH..KE30,35..A20197701-197805

EUROPE SPEC,NO.15 COUNTRY

main21100-24420i3KB..KE35197601-197701

FR CARBURETOR,EUROPE,NO.15

main21100-24421i3KB..KE35197701-197908

FR CARBURETOR

main21100-24430i3KB..KE35197701-197908

RR CARBURETOR

main21100-24490i3KC..KE30,35..A20197706-197808

AUSTRALIA SPEC

main21100-24510i3KH..KE30,35,36,50..MTM..(GEN,SA)197805-198107

main21100-24520i3KH..KE30,35,36,50..MTM..EUG197805-197908

main21100-24530i3KH..KE30,35..A20..GEN197805-198107

main21100-24540i3KH..KE30,35..A20..EUG197805-197908

main21100-24550i3KC..KE30,35,36,50..SDN197805-197908

main21100-26230i2TB..TE47197408-197511

RR CARBURETOR

main21100-26231i2TB..TE47197511-197601

RR CARBURETOR

main21100-26232i2TB..TE47,51197601-197908

RR CARBURETOR

main21100-26320i2T..TE3#,47..RHD197408-197511

main21100-26330i2T..TE47..LHD197408-197511

main21100-26340i2TB..TE47197408-197511

FR CARBURETOR

main21100-26341i2TB..TE47197511-197601

FR CARBURETOR

main21100-26342i2TB..TE47,51197601-197908

FR CARBURETOR

main21100-26442i2T..TE51..LHD..A40197603-197606

main21100-26443i2T..TE51..LHD..A40197606-197609

main21100-26444i2T..TE51..LHD..A40197609-197701

main21100-26445i2T..TE51..LHD..A40197701-197805

main21100-26446i2T..TE51..LHD..A40197805-197908

main21100-26450i2T..TE31..A40197511-197601

main21100-26451i2T..TE31..A40197601-197603

main21100-26452i2T..TE31,51..RHD..A40197603-197606

main21100-26453i2T..TE31,51..RHD..A40197606-197611

main21100-26454i2T..TE51..RHD..A40197701-197805

main21100-26455i2T..TE51..RHD..A40197805-197908

main21100-26490i2T..TE47..LHD197511-197601

main21100-26491i2T..TE47..LHD197601-197603

main21100-26492i2T..TE47,51..LHD..MTM197603-197606

main21100-26493i2T..TE47,51..LHD..MTM197606-197609

main21100-26494i2T..TE47,51..LHD..MTM197609-197701

main21100-26495i2T..TE47,51..LHD..MTM197701-197805

main21100-26496i2T..TE47,51..LHD..MTM197805-197908

main21100-26500i2T..TE3#,47..RHD..MTM197511-197601

main21100-26501i2T..TE3#,47..RHD..MTM197601-197603

main21100-26502i2T..TE3#,47,51..RHD..MTM197603-197606

main21100-26503i2T..TE3#,47,51..RHD..MTM197606-197611

main21100-26504i2T..TE47,51..RHD..MTM197701-197805

main21100-26505i2T..TE47,51..RHD..MTM197805-197908

main21100-26660i2T..TE3#..MTM197611-197701

main21100-26661i2T..TE31..MTM197701-197804

main21100-26662i2T..TE31..MTM197804-198004

main21100-26670i2T..TE31..A40197611-197702

main21100-26671i2T..TE31..A40197702-197804

main21100-26672i2T..TE31..A40197804-198004

main21100-26770i2TB..TE3#197701-198004

RR CARBURETOR

main21100-26780i2TB..TE3#197701-198004

FR CARBURETOR

main21100-88225i2TG..TE47197408-197805

RR CARBURETOR

main21100-88226i2TG..TE47197408-197805

FR CARBURETOR

main21100-88229i2TG..TE47197805-197902

RR CARBURETOR

main21100-88240i2TG..TE47197602-197805

FR CARBURETOR,EUROPE SPEC

21100KCARBURETOR KIT

main04211-13030i4KC..KE38,55..MTM197808-198012

main04211-13060i4KC..KE55..3FC197808-198012

main04211-13160i4KC..KE38,55198012-198107

main04211-24060i3KH..KE3#197408-197511

main04211-24070×2i3KB..KE35197408-197701

main04211-24081i3KC..KE3#,50197508-197708

main04211-24082i3KC..KE30,35,36,50197708-197908

main04211-24090i3KH..KE3#,50197511-197805

main04211-24091i3KH..KE30,35,36,50..GEN,SA197805-198107

main04211-24140i3KH..KE3#,50197601-197805

EUROPE SPEC,NO.15 COUNTRY

main04211-24141i3KH..KE30,35,36,50..EUG197805-197908

main04211-24150×2i3KB..KE35197701-197908

main04211-26050i2T..TE3#,47197408-197511

main04211-26070×2i2TB..TE47197408-198004

main04211-26120i2T..TE3#,47197511-197601

main04211-26140×2i2TB..TE47,51197601-197908

main04211-26150i2T..TE3#,47,51197601-198004

21100LGASKET KIT, CARBURETOR

main04212-13010i4KC..KE38,55197808-197909

main04212-13022i4KC..KE38,55198012-198107

main04212-24012×2i3K#..KE3#,50197408-197708

main04212-24013×2i3K#..KE30,35,36,50197708-197909

main04212-24014i4KC..KE38,55197909-198012

main04212-26020×2i2TB..TE47197408-197511

main04212-26040i2T..TE3#,47,51197511-198004

main04212-37011×2i2TG..TE47197408-197902

21392ACLAMP, CHOKE WIRE

main21392-24310i3KB..KE35197408-197908

21912INSULATOR, CARBURETOR HEAT

main21912-13010i4KC..KE38,55..MTM197808-197907

main21912-13020i4KC..KE55..3FC197808-198012

main21912-13030i4KC..KE38,55198012-198107

main21912-24017i3KC..KE30,35,36,50197709-197908

main21912-24060i3KC,3KH..KE3#,50197408-197701

main21912-24061i3KC..KE3#,50..MTM197706-197709

main21912-24072i3KH..KE30,35,36,50197905-198107

main21912-25010i2T..TE3#,47197408-197601

main21912-26020i2T..TE3#,47,51197601-198004

main21912-29010i3KH..KE30,35,36197702-197908

AUSTRALIA SPEC

main21912-88210×2i2TG..TE47197408-197902

main21913-24010×2i3KB..KE35197408-197908

9321914008

main93219-14008

9331915020

main93319-15020

9411040800

main94110-40800

8 parts on this diagram · 7 diagrams in section
