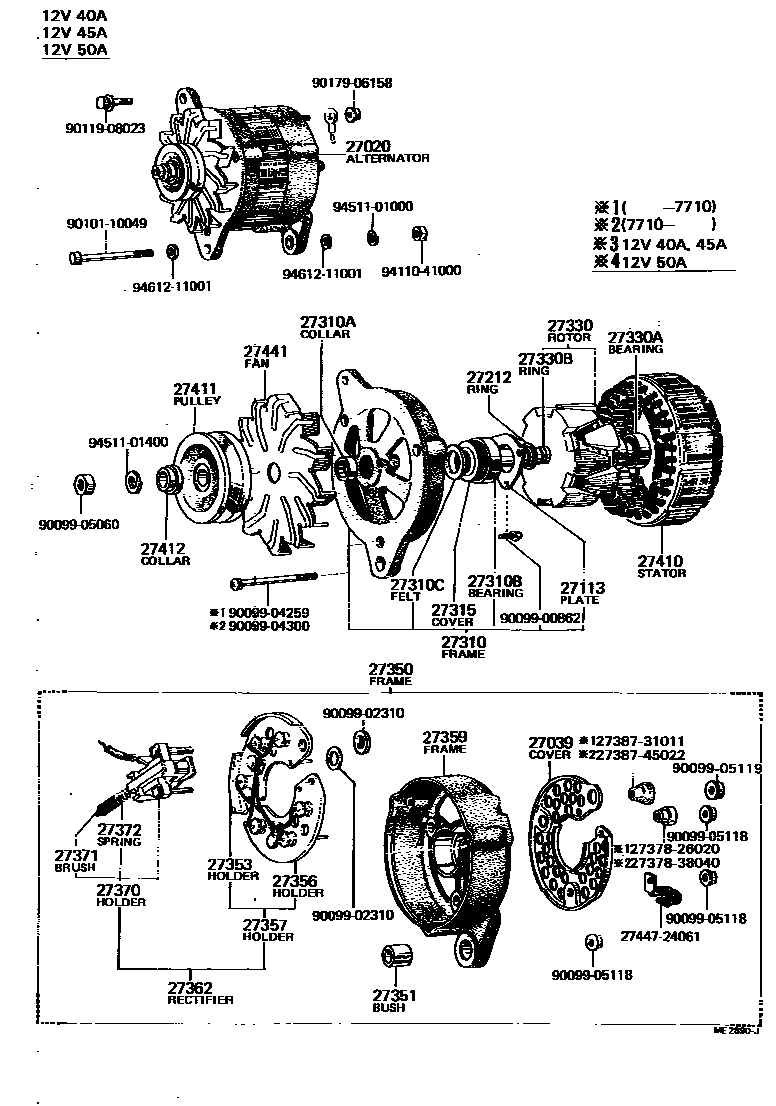

ALTERNATOR

0001 1 0003 1

27020ALTERNATOR ASSY

main27020-13010i3KH..KE30,36,50..EUG197805-197908

12V 45A

main27020-13020i3KH..KE30,35,36,50..LHD..EUG;3KC,3KB..KE30,35,36,50..LHD..EUR197708-197908

12V 50A

main27020-13060i3KH,4KC..KE3#,55197908-198107

12V 40A,12V 40A

main27020-24061i3K#..KE3#197408-197505

12V 40A

main27020-24062i3KH,3KB..KE3#,50;3KC..KE3#,50..ARL197701-197711

12V 40A

main27020-24063i3K#..KE35; 3KH,4KC..KE30,36,38,5#..ARL,GEN,SA197805-197908

12V 40A

main27020-24080i3K#..KE3#..LHD197408-197505

12V 50A

main27020-24081i3K#..KE3#..LHD; 3KH..KE50197505-197701

12V 50A

main27020-26023i2TG..TE47197711-197908

12V 40A

main27020-26060i2T#..TE47..LHD197408-197504

12V 50A

main27020-26061i2T#..TE47,51..LHD..EUG197701-197709

12V 50A

main27020-26110i2TG..TE47..EUG197802-197908

12V 50A

main27020-31042i2T#..TE3#,47197504-197505

12V 40A

main27020-31043i2T#..TE3#,47,51197505-197708

12V 40A

main27020-34050i2T#..TE47,51..LHD..EUG197709-197802

12V 50A

main27020-36021i2T#..TE3#,47197408-197504

12V 40A

main27020-36071i2T,2TB..TE3#,47,51197711-198004

12V 40A,12V 40A

27039COVER, ALTERNATOR REAR END

main27039-15030i3KH,4KC..KE3#,55197908-197912

12V 40A

main27039-18011i3KH,4KC..KE3#,55197912-198107

main27039-26020i3K#,2T#..KE3#,50,TE3#,47,51197408-197708

main27039-36070i2T#..TE3#,47,51197708-197709

12V 40A

27113PLATE, BEARING RETAINER, ALTERNATOR

main27312-31011i3K#,4KC,2T#..KE3#,5#,TE3#,47,51197408-198107

12V 40A,45A

27212RING, SPACE(FOR ALTERNATOR ROTOR)

main27212-39050i3K#,2T#..KE3#,50,TE3#,47,51197408-197708

main27412-45070i3KH..KE3#,50..LHD..EUG;3KC,3KB..KE3#,50..LHD..EUR197708-197709

12V 50A

27310FRAME ASSY, DRIVE END, ALTERNATOR

main27310-13050i3KH,4KC..KE3#,55197908-198107

12V 40A

main27310-24030i3K#..KE3#,50197408-197708

main27310-24070i3K#,4KC..KE3#,5#197805-197908

12V 40A,45A

main27310-24071i3KH..KE30,35,36,50..LHD..EUG;3KC,3KB..KE30,35,36,50..LHD..EUR197708-197908

12V 50A

main27310-31011i2T#..TE3#,47,51197408-197708

12V 40A

main27310-34030i2T#..TE47..LHD; 2T,2TB..TE51197408-197701

12V 50A

main27310-34050i2T#..TE47,51..LHD..EUG197709-197805

12V 50A

27310ACOLLAR OR NUT(FOR ALTERNATOR DRIVE END FRAME)

main27412-31040i2T#..TE47,51..LHD..EUG197701-197908

12V 50A

main90099-19075i2T#..TE3#,47197408-197504

12V 40A

27310BBEARING(FOR ALTERNATOR DRIVE END FRAME)

main90099-10013i2T#..TE3#,47,51; 3K#..KE3#,50197408-197708

12V 40A

main90099-10109i2T#..TE47..LHD; 2T,2TB..TE51197408-197701

12V 50A

main90099-10114i2T#..TE3#,47,51197811-198004

12V 40A

main90099-10115i2T#..TE47,51..LHD..EUG197709-197908

12V 50A

main90099-10126i3KH,4KC..KE3#,55197908-198107

27310CFELT(FOR ALTERNATOR DRIVE END FRAME)

main90099-02004i3K#,4KC,2T#..KE3#,5#,TE3#,47,51197408-198107

12V 40A,45A

27315COVER, ALTERNATOR FELT, INNER NO.1

main27313-31011i3K#,4KC,2T#..KE3#,5#,TE3#,47,51197408-198107

12V 40A,45A

27330ROTOR ASSY, ALTERNATOR

main27330-26050i3KH,4KC..KE3#,55197908-198107

12V 40A

main27330-33010i3K#..KE35; 3KH,4KC..KE30,36,38,5#..ARL,GEN,SA197805-197908

12V 40A

main27330-34030i3KH..KE30,36,50..EUG197805-197908

12V 45A

main27330-43012i3K#..KE3#..LHD; 3KH..KE50197408-197701

12V 50A

main27330-45020i2T#..TE47..LHD; 2T,2TB..TE51197408-197701

12V 50A

main27330-45070i3KH..KE30,35,36,50..LHD..EUG;3KC,3KB..KE30,35,36,50..LHD..EUR197708-197908

12V 50A

27330ABEARING(FOR ALTERNATOR ROTOR)

main90099-10103i2T#..TE47..LHD; 2T,2TB..TE51197408-197701

12V 50A

main90099-10111i3KH,4KC..KE3#,55197908-198107

12V 40A

main97110-06201i3KH,3KB..KE3#,50;3KC..KE3#,50..ARL197708-197711

12V 40A

27330BRING, SNAP(FOR ALTERNATOR ROTOR)

main90099-07048i3K#,2T#..KE30,35,36,50,TE3#,47,51197408-198107

27350FRAME ASSY, RECTIFIER END

main27350-13010i3K#,4KC..KE3#,5#197805-197908

12V 40A,45A

main27350-13020i3KH..KE30,35,36,50..LHD..EUG;3KC,3KB..KE30,35,36,50..LHD..EUR197708-197908

12V 50A

main27350-24061i3K#..KE3#197408-197505

12V 40A

main27350-24062i3KH,3KB..KE3#,50;3KC..KE3#,50..ARL197701-197711

12V 40A

main27350-24063i3KH,3KB..KE3#,50;3KC..KE3#,50..ARL197711-197805

12V 40A

main27350-24080i3K#..KE3#..LHD197408-197505

12V 50A

main27350-24081i3KH..KE3#,50..LHD..EUG;3KC,3KB..KE3#,50..LHD..EUR197701-197708

12V 50A

main27350-26020i2T#..TE3#,47197408-197505

12V 40A

main27350-26022i2T#..TE3#,47,51197505-197708

12V 40A

main27350-26060i2T#..TE47..LHD197408-197504

12V 50A

main27350-26061i2T#..TE47..LHD; 2T,2TB..TE51197504-197701

12V 50A

main27350-26110i2TG..TE47..EUG197802-197908

12V 50A

main27350-36061i2T#..TE3#,47,51197805-198004

12V 40A

main27350-36071i2T,2TB..TE3#,47,51197711-197805

12V 40A

main27350-45081i2T,2TB..TE47,51..LHD..EUG197802-197908

12V 50A

27351BUSH(FOR ALTERNATOR RECTIFIER END FRAME)

main27351-25010i3K#,2T#..KE3#,50,TE3#,47,51197708-197711

3K#=12V 40A

main27351-38051i3KH..KE30,35,36,50..LHD..EUG;3KC,3KB,2T#..KE30,35,36,50,TE47,51..LHD..EUR197709-197908

12V 50A

27353HOLDER, W/RECTIFIER POSITIVE, ALTERNATOR

main27353-26020i3K#,2T#..KE3#,50,TE3#,47,51197408-197701

12V 40A

main27353-26030i3K#,4KC..KE3#,5#197805-197908

12V 40A,45A

main27353-36070i2T#..TE3#,47,51197708-197711

12V 40A

main27353-44040i3K#,2T#..KE3#,TE47..LHD; 3KH,2T,2TB..KE50,TE51197408-197701

12V 50A

main27353-45081i3KH..KE30,35,36,50..LHD..EUG;3KC,3KB,2T#..KE30,35,36,50,TE47,51..LHD..EUR197709-197908

12V 50A

27356HOLDER, W/RECTIFIER NEGATIVE, ALTERNATOR

main27356-26020i3K#,2T#..KE3#,50,TE3#,47,51197408-197701

12V 40A

main27356-26030i3K#,4KC..KE3#,5#197805-197908

12V 40A,45A

main27356-36070i2T,2TB..TE3#,47,51197711-198004

12V 40A

main27356-44040i2T#..TE47,51..LHD..EUG197708-197709

12V 50A

main27356-45080i3KH..KE30,35,36,50..LHD..EUG;3KC,3KB,2T#..KE30,35,36,50,TE47,51..LHD..EUR197709-197908

12V 50A

27357HOLDER, ALTERNATOR, W/RECTIFIER

main27357-26020i3KH,3KB..KE3#,50;3KC..KE3#,50..ARL197708-197711

12V 40A

main27357-26030i3KC..KE35..ARL;3KH,3KB,4KC..KE3#,5#197805-197908

12V 40A,45A

main27357-36070i2T#..TE3#,47,51197708-198004

12V 40A

main27357-44040i3K#,2T#..KE3#,TE47..LHD; 3KH,2T,2TB..KE50,TE51197408-197701

12V 50A

27359FRAME, ALTERNATOR RECTIFIER END

main27359-13050i3KH,4KC..KE3#,55197908-198107

12V 40A

main27359-26020i3K#,2T#..KE3#,TE3#,47197408-197505

main27359-26050i2T#..TE47..LHD197408-197504

12V 50A

main27359-36061i2T#..TE3#197908-198004

12V 40A

main27359-41041i3K#..KE3#,50197505-197805

main27359-44032i2T#..TE47..LHD; 2T,2TB..TE51197504-197701

12V 50A

main27359-44033i3KH,3KB..KE3#,50;3KC..KE3#,50..ARL197711-197805

12V 40A

main27359-45070i3KH..KE30,35,36,50..LHD..EUG;3KC,3KB..KE30,35,36,50..LHD..EUR197708-197812

12V 50A

main27359-45081i2T#..TE47,51..LHD..EUG; 3KH..KE30,35,36,50..LHD..EUG;3KC,3KB..KE30,35,36,50..LHD..EUR197812-197908

12V 50A

27362RECTIFIER ASSY, W/BRUSH

main27362-15030i3KH,4KC..KE3#,55197908-198107

12V 40A

main27362-26040i3K#,4KC,2T#..KE3#,5#,TE3#,47,51197805-197908

12V 40A,45A

main27362-26051i3KH,3KB..KE3#,50;3KC..KE3#,50..ARL197711-197805

12V 40A

main27362-45081i3KH..KE3#,50..LHD..EUG;3KC,3KB..KE3#,50..LHD..EUR197708-197709

12V 50A

27370HOLDER ASSY, ALTERNATOR BRUSH

main27370-26020i2T#..TE3#,47; 3K#..KE3#197408-197505

12V 40A

main27370-45020i2T#..TE47..LHD197408-197504

12V 50A

main27370-45061i2T#..TE47..LHD; 2T,2TB..TE51197504-197701

12V 50A

27371BRUSH, ALTERNATOR

main27371-31011×2i3K#,4KC,2T#..KE3#,5#,TE3#,47,51197408-198107

27372SPRING, ALTERNATOR BRUSH

main27372-31011×2i3K#,4KC,2T#..KE3#,5#,TE3#,47,51197408-198107

27410STATOR ASSY, ALTERNATOR

main27410-15030i3KH,4KC..KE3#,55197908-198107

12V 40A

main27410-26020i3K#..KE35; 3KH..KE30,36,50..GEN,SA197805-197908

12V 40A

main27410-26030i3K#,2T#..KE3#,TE47..LHD; 3KH,2T,2TB..KE50,TE51197505-197701

12V 50A

main27410-34050i3KH..KE30,35,36,50..LHD..EUG;3KC,3KB..KE30,35,36,50..LHD..EUR197708-197908

12V 50A

main27410-44040i3K#,2T#..KE3#,TE47..LHD197408-197504

12V 50A

27411PULLEY, ALTERNATOR

main27411-25010i3KH,3KB..KE30,35,36,50..GEN197701-198107

W/COOLER

main27411-26110i2TG..TE47..EUG197802-197812

12V 50A

main27411-26111i2TG..TE47..EUG197812-197908

12V 50A

main27411-31012i2T#..TE3#,47197408-197504

12V 40A

main27411-31042i2T#..TE47..LHD; 2T,2TB..TE51197408-197701

12V 40A,45A

27412COLLAR, SPACER(FOR ALTERNATOR PULLEY)

main27412-44030i2T#..TE3#,47,51197504-198004

27441FAN, ALTERNATOR

main27441-31011i2T#..TE47197408-197411

12V 40A

main27441-34030i3K#..KE3#197408-197411

2737826020INSULATOR, ALTERNATOR, NO.1

main27378-26020

2737838040INSULATOR, ALTERNATOR, NO.1

main27378-38040

2738731011INSULATOR, TERMINAL

main27387-31011

2738745022INSULATOR, TERMINAL

main27387-45022

2744724061CLIP, ALTERNATOR CORD

main27447-24061

9009900862

main90099-00862

9009902310

main90099-02310

9009904259

main90099-04259

9009904300

main90099-04300

9009905060

main90099-05060

9009905118

main90099-05118

9009905119

main90099-05119

9010110049

main90101-10049

9011908023

main90119-08023

9017906158

main90179-06158

9411041000

main94110-41000

9451101000

main94511-01000

9451101400

main94511-01400

9461211001

main94612-11001

45 parts on this diagram · 2 diagrams in section
